Step
Part to remove
Description
Precautions Necessary tools
28
Main bearing cover
(1) Remove the Woodruff key from
the crankshaft.
(2) Remove five M6 x 25 bolts lock-
ing the main bearing cover from
the crankcase.
10 mm box spanner
(3) Using a plastic hammer or a
Be careful not to dam-
Plastic hammer
similar tool, strike the main
age the lip of the oil
bearing cover uniformly around
seal.
its periphery to remove the cover.
29 Camshaft
(1) Pull out the camshaft from the
crankcase.
Set the crankcase side-
ways so that it will not
fall and damage the
tappets.
30 Tappets
(1) Remove the tappets from the
crankcase.
Be sure to mark the
tappets to distinguish
them from each other;
one for the intake
vale and the other for
exhaust valve.

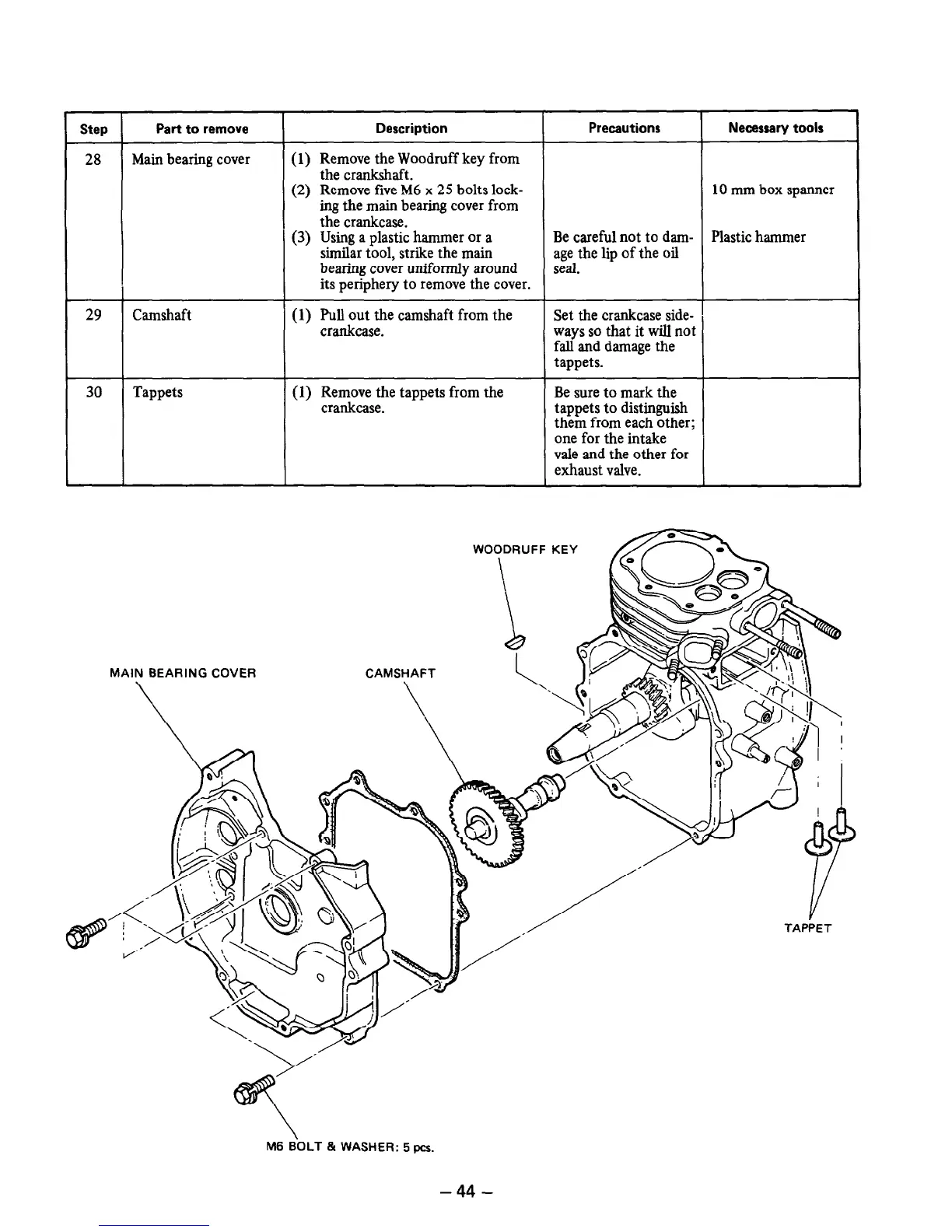

MAIN BEARING COVER CAMSHAFT
TAPPET
M6 BbLT 61 WASHER: 5 pcs.
-44
-
To Next Page
