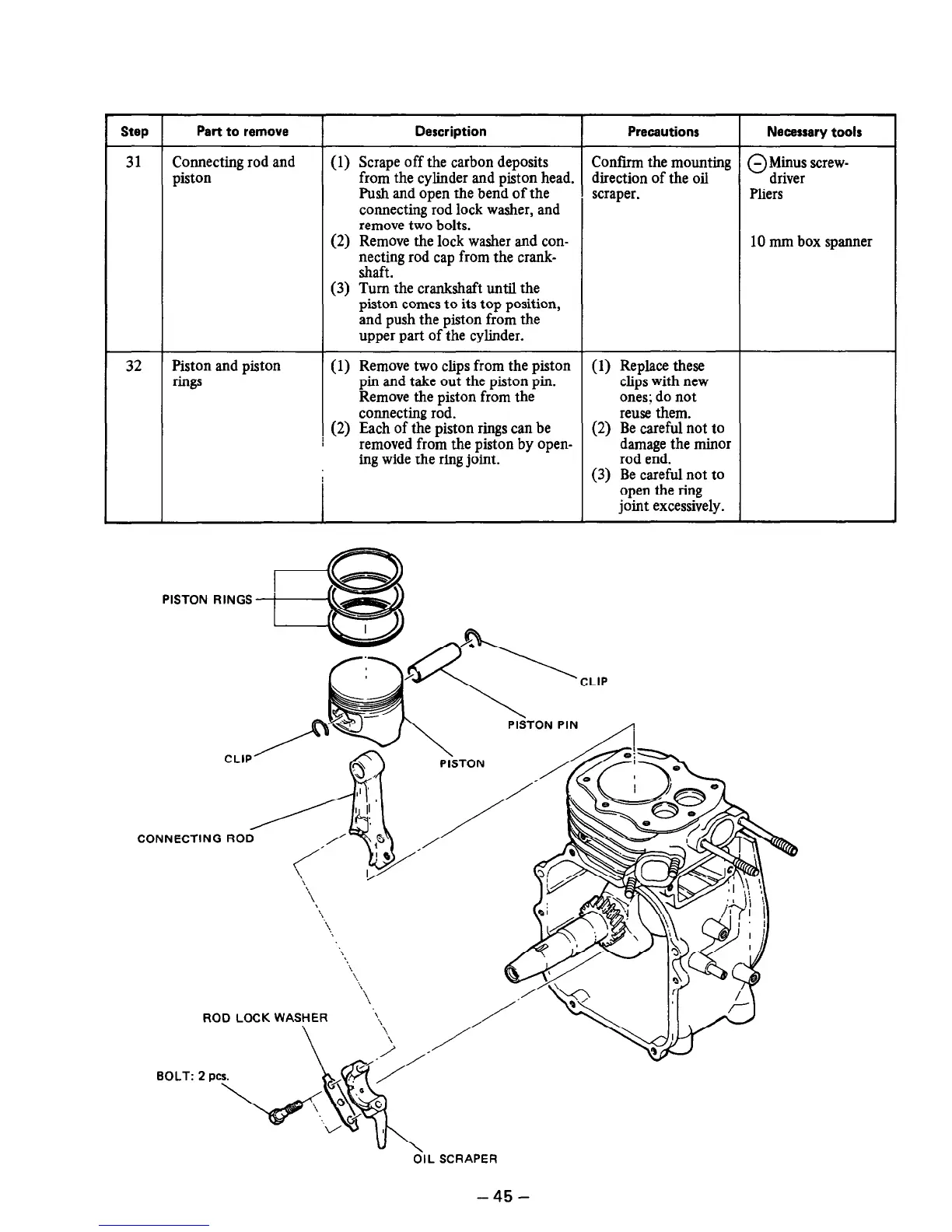

Step
Part to remove Description
Precautions Necessary tools
31
Connecting rod and (1) Scrape off the carbon deposits
Confirm the mounting
piston from the cylinder and piston head. direction of the oil
@Minus screw-
driver
Push and open the bend of the
connecting rod lock washer, and
remove two bolts.
scraper.
Pliers
(2) Remove the lock washer and con-
netting rod cap from the crank-
shaft.
10 mm box spanner
(3) Turn the crankshaft until the
piston comes to its top position,
and push the piston from the
upper part of the cylinder.
32
Piston and piston
a3
(1) Remove two clips from the piston
(1) Replace these
pm and take out the piston pin.
clips with new
Remove the piston from the ones; do not
connecting rod.
reuse them.
(2) Each of the piston rings can be (2) Be careful not to
removed from the piston by open- damage the minor
ing wide the ring joint.
rod end.
(3) Be careful not to
open the ring
joint excessively.
PISTON RINGS.-&
CLIP
CONNECTING ROD’ ,k(dj /
ROD LOCK WASHER ‘..
BOLT: 2 pc
dlL SCRAPER
-45-
