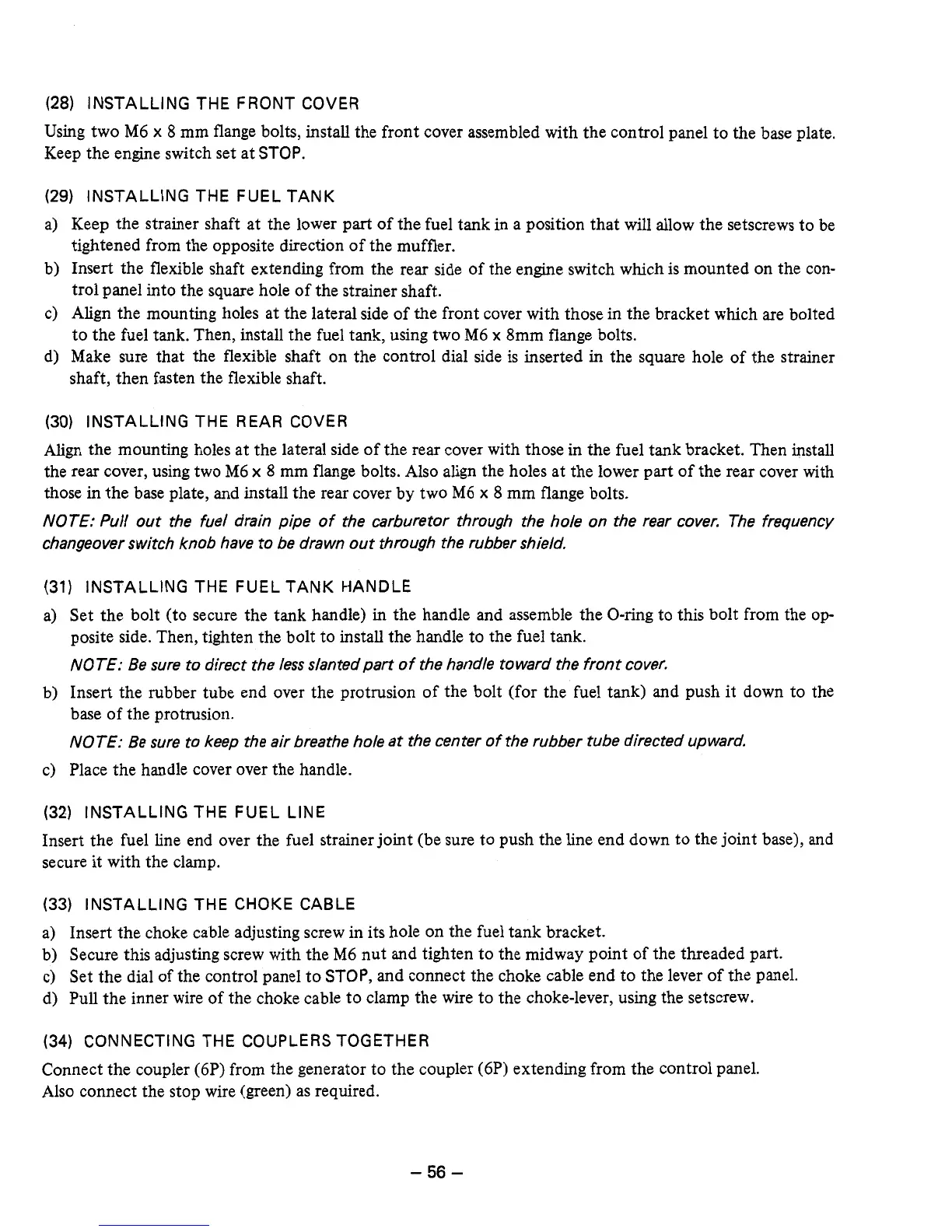

(28)
INSTALLING THE FRONT COVER
Using two M6
x
8 mm flange bolts, install the front cover assembled with the control panel to the base plate.
Keep the engine switch set at
STOP.
(29) INSTALLING THE FUEL TANK
a) Keep the strainer shaft at the lower
part
of the fuel tank in a position that will allow the setscrews to be
b) Insert the flexible shaft extending from the rear side of the engine switch which
is
mounted on the con-
c) Align the mounting holes at the lateral side of the front cover with those in the bracket which are bolted
d) Make sure that the flexible shaft on the control dial side is inserted in the square hole of the strainer
tightened from the opposite direction of the muffler.
trol panel into the square hole of the strainer shaft.
to the fuel tank. Then, install the fuel tank, using two M6
x
8mm flange bolts.
shaft, then fasten the flexible shaft.
(30)
INSTALLING THE REAR COVER
Align
the mounting holes at the lateral side of the rear cover with those in the fuel tank bracket. Then install
the rear cover, using two M6
x
8
mm flange bolts. Also align the holes at the lower part of the rear cover with
those in the base plate, and install the rear cover by two M6
x
8 mm flange bolts.
NOTE: Pull out the fuel drain pipe of the carburetor through the hole on the rear cover. The frequency
changeover switch knob have
to
be drawn out through the rubber shield.
(31)
INSTALLING THE FUEL TANK HANDLE
a) Set the bolt (to secure the tank handle)
in
the handle and assemble the O-ring to this bolt from the
op
posite side. Then, tighten the bolt to install the handle to the fuel tank.
NOTE: Be sure to direct the less slanted part of the handle toward the front cover.
b) Insert the rubber tube end over the protrusion of the bolt (for the fuel tank) and push it down to the
base of the protrusion.
NOTE: Be sure to keep the air breathe hole at the center of the rubber tube directed upward.
c) Place the handle cover over the handle.
(32.)
INSTALLING THE FUEL LINE
Insert the fuel line end over the fuel strainer joint (be sure to push the line end down to the joint base), and
secure it with the clamp.
(33)
INSTALLING THE CHOKE CABLE
a) Insert the choke cable adjusting screw in its hole
on
the fuel tank bracket.
b) Secure this adjusting screw with the M6 nut and tighten to the midway point of the threaded part.
c) Set the dial of the control panel to
STOP,
and connect the choke cable end to the lever of the panel.
d) Pull the inner wire of the choke cable to clamp the wire to the choke-lever, using the setscrew.
(34)
CONNECTING THE COUPLERS TOGETHER
Connect the coupler (6P) from the generator to the coupler (6P) extending from the control panel.
Also connect the stop wire (green) as required.
-
56
-
