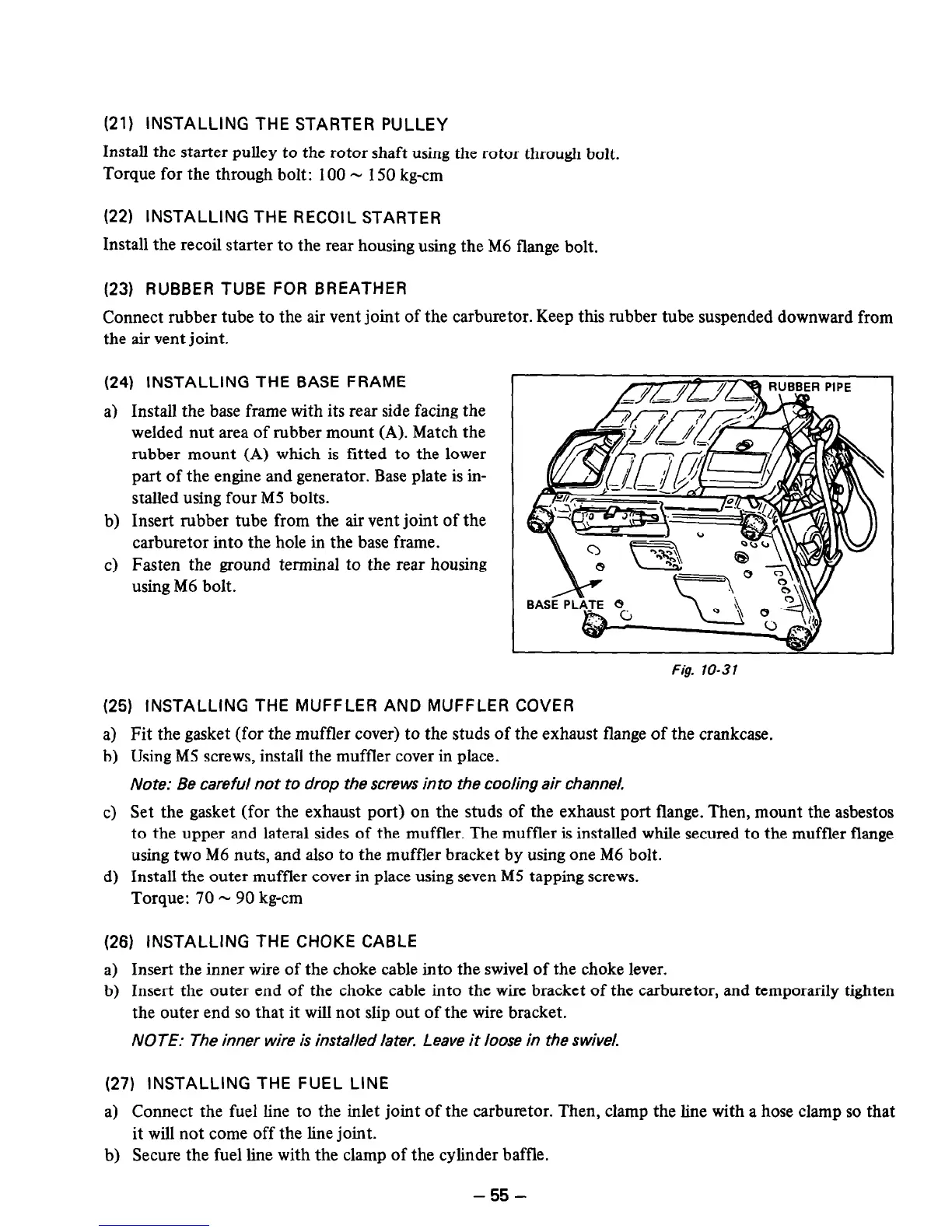

(21) INSTALLING THE STARTER PULLEY
Install the starter pulley to the rotor shaft using the rotor through bolt.
Torque for the through bolt: 100 - 150 kg-cm
(22) INSTALLING THE RECOIL STARTER
Install the recoil starter to the rear housing using the M6 flange bolt.
(23) RUBBER TUBE FOR BREATHER
Connect rubber tube to the air vent joint of the carburetor. Keep this rubber tube suspended downward from
the air vent joint.
(24) INSTALLING THE BASE FRAME
a) Install the base frame with its rear side facing the
welded nut area of rubber mount (A). Match the
rubber mount (A) which is fitted to the lower
part of the engine and generator. Base plate is in-
stalled using four MS bolts.
b) Insert rubber tube from the air vent joint of the
carburetor into the hole in the base frame.
c) Fasten the ground terminal to the rear housing
using M6 bolt.
Fig. lo-31
(25) INSTALLING THE MUFFLER AND MUFFLER COVER
a) Fit the gasket (for the muffler cover) to the studs of the exhaust flange of the crankcase.
b) Using M5 screws, install the muffler cover in place.
Note: Be careful not to drop the screws into the cooling air channel.
c) Set the gasket (for the exhaust port) on the studs of the exhaust port flange. Then, mount the asbestos
to the upper and lateral sides of the muffler. The muffler is installed while secured to the muffler flange
using two M6 nuts, and also to the muffler bracket by using one M6 bolt.
d) Install the outer muffler cover in place using seven M5 tapping screws.
Torque: 70 - 90 kg-cm
(26) INSTALLING THE CHOKE CABLE
a) Insert the inner wire of the choke cable into the swivel of the choke lever.
b) Insert the outer end of the choke cable into the wire bracket of the carburetor, and temporarily tighten
the outer end so that it will not slip out of the wire bracket.
NOTE: The inner wire is installed later. Leave it loose in the swivel.
(27) INSTALLING THE FUEL LINE
a) Connect the fuel line to the inlet joint of the carburetor. Then, clamp the line with a hose clamp so that
it will not come off the line joint.
b) Secure the fuel line with the clamp of the cylinder baffle.
- 55 -
