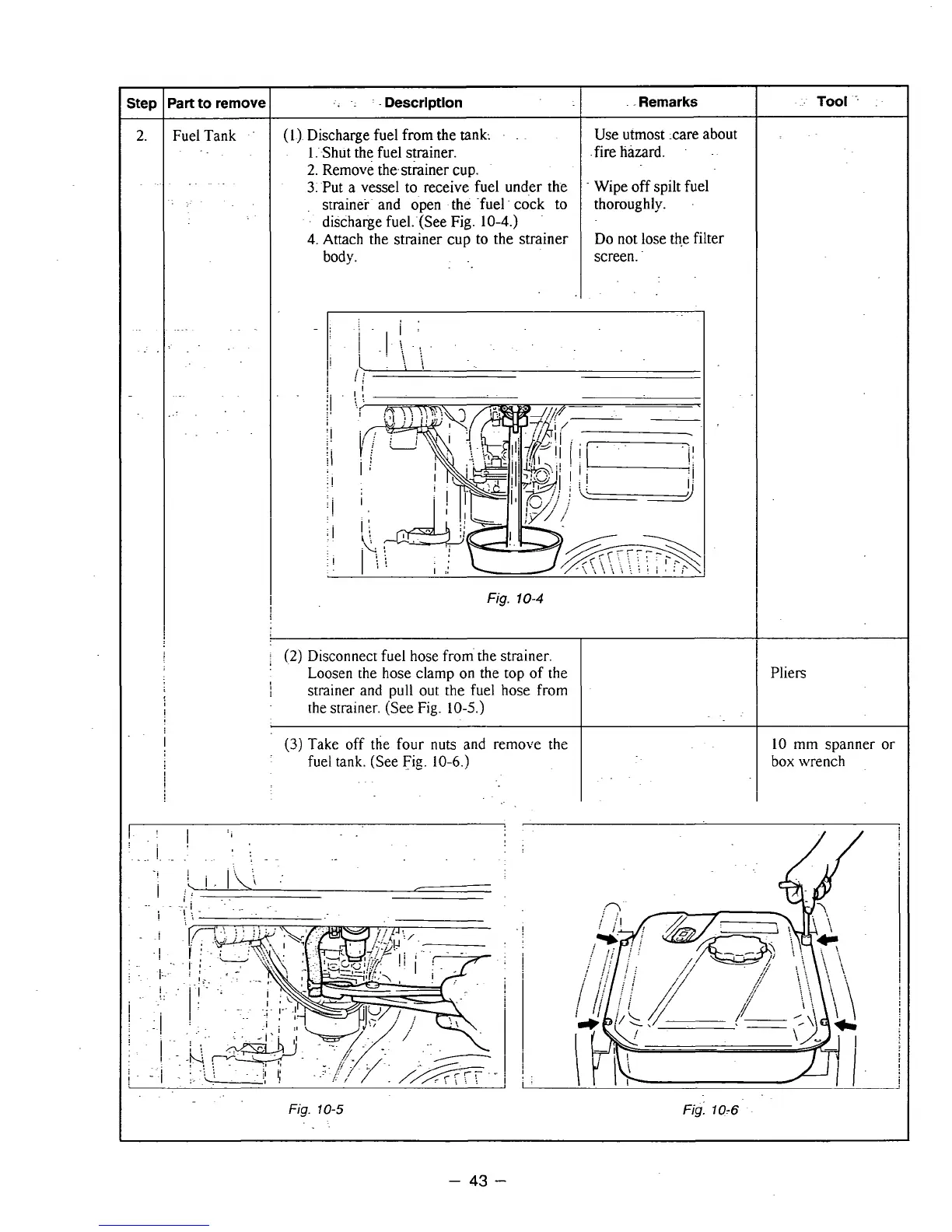

Robin RGV2200 - Page 45

Step
2.
..
I
.. . . .. .
'art to remove
Fuel Tank -
.. .
.. .. - -Description . -1 ..Remarks
(I) Discharge fuel from the tank: - . Use utmost .care about
1: Shut the fuel strainer. .fire hazard. . -
2. Remove the-strainer cup.
3. Put a vessel to receive fuel under the - Wipe off spilt fuel
strainer and open the -fuel. cock to thoroughly.
discharge fuel:(See Fig.
10-4.)
body. screen.
4. Attach the strainer cup to the strainer Do not lose the filter
..
I
:I
. ;; . 1;
Fig. 10-4
-
I (2) Disconnect fuel hose from. the strainer.
' Loosen the hose clamp on the top of the
i strainer and pull out the fuel hose from
the strainer. (See Fig. 10-5.)
(3j Take off the four nuts and remove the
fuel tank. (See Fig.
10-6.1
I
T I
Tool -.
Pliers
10 mm spanner or
box wrench
Fig. 10-5
Fig. 10-6
- 43 -
