Robin RGV2200 User Manual

Step
3.
Part to remove
Muffler and
l4uffler
Cover
Description ! Remarks
(1) Remove the rear plate from the frame.
The rear plate
is welded
(Except for
RGV6000)
to the frame of the
6X 12mm flange bolt ......... .2 pcs.
I RGV6000.
(2) Remove the two bolts which fix the muffler to the alternator.
Loosen the two
nuts on the muffler flange and remove the muffler
from the engine.
8X20mm bolt and washer ass'y ..... 2 pcs.
8mm stainless nut ................ 2 pcs.
8mm spring washer
for
RGV4000 and RGV6000 ....... 2 pcs.
Muffler gasket
.................. 1 PC.
(3) Remove the muffler cover 1 and the muffler cover 2 from the muffler.
6X lOmm bolt and washer ass'y - . 8 pcs.
(See
Fig. 10-8.)
(3) For RGV6000 only:
Remove the muffler bracket from the rear cover.
8X20mm bolt and washer ass'y ... 2 pcs.

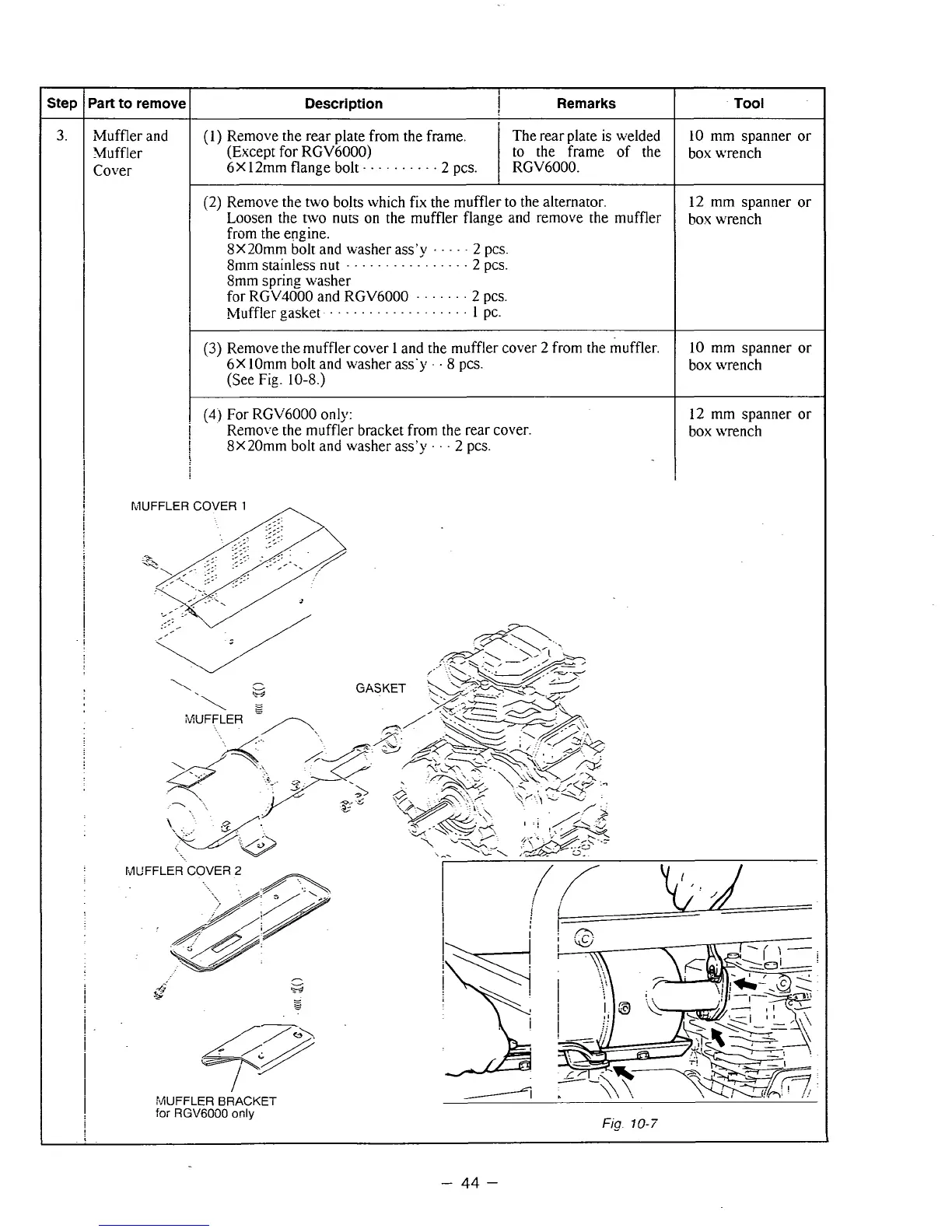

~cIUFFLER COVER 1 A
M.ilL!FFLER COVER 2
for RGV6000 only
FAUFFLER BRACKET
Tool
10 mm spanner or
box wrench
12 mm spanner or
box wrench
10 mm spanner or
box wrench
12 mm spanner or
box wrench
FIG. 10-7
- 44 -
