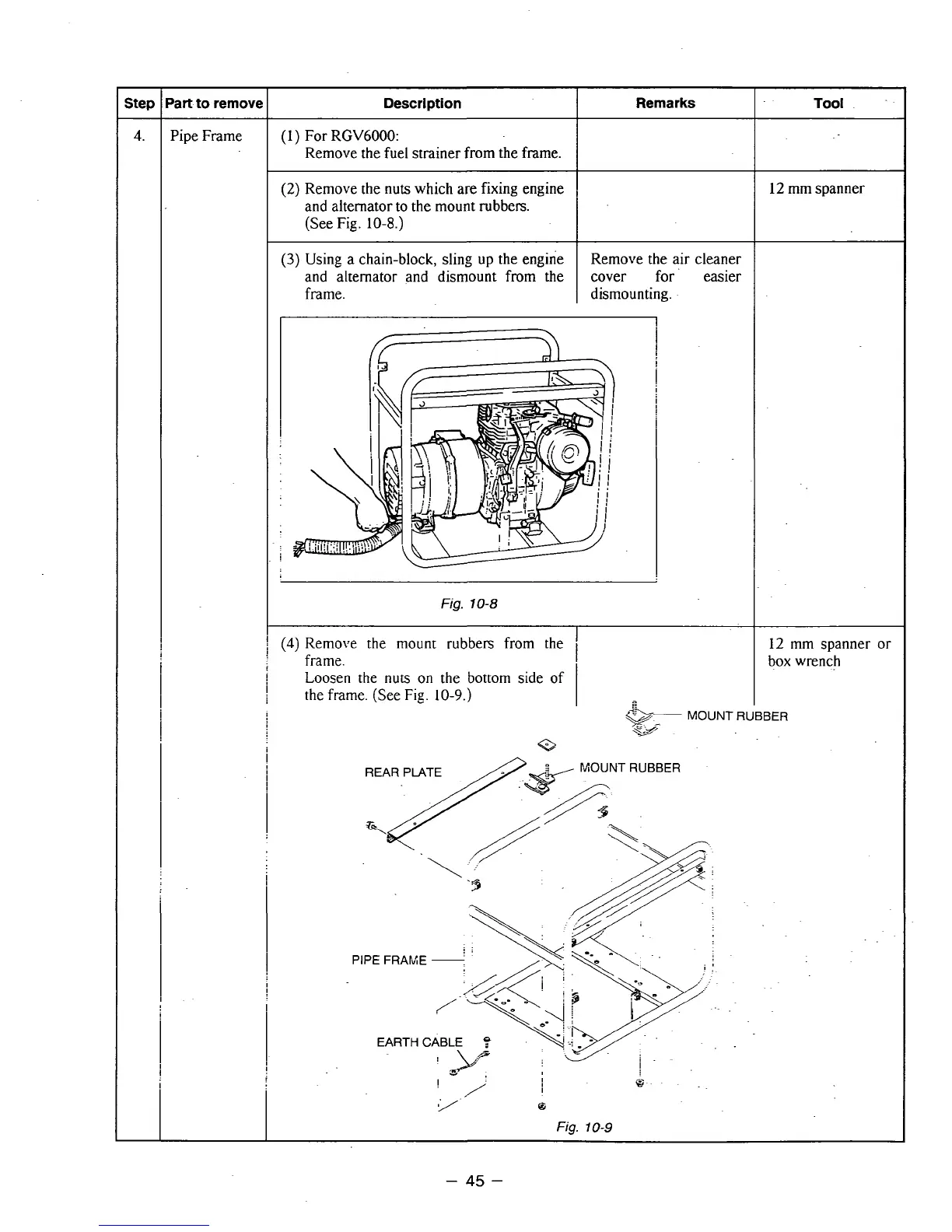

Robin RGV2200 User Manual

Dart to remove
Pipe Frame
Description
(1) For RGV6000:
Remove
the fuel strainer from the frame.
(2) Remove the nuts which are fixing engine
and alternator to
the mount rubbers.
(See Fig.
10-8.)
(3) Using a chain-block, sling up the engine
and alternator and dismount from
the
frame.
Remarks
Remove the air cleaner
cover for easier
dismounting.
Fig. 10-8
(3) Remove the mount rubbers from the ’
frame.
Loosen the
nuts on the bottom side of
the frame. (See Fig. 10-9.)
Tool
12 rnm spanner
12 mm spanner or
box wrench
MOUNT RUBBER
,
0
Fig. 10-9
- 45 -
