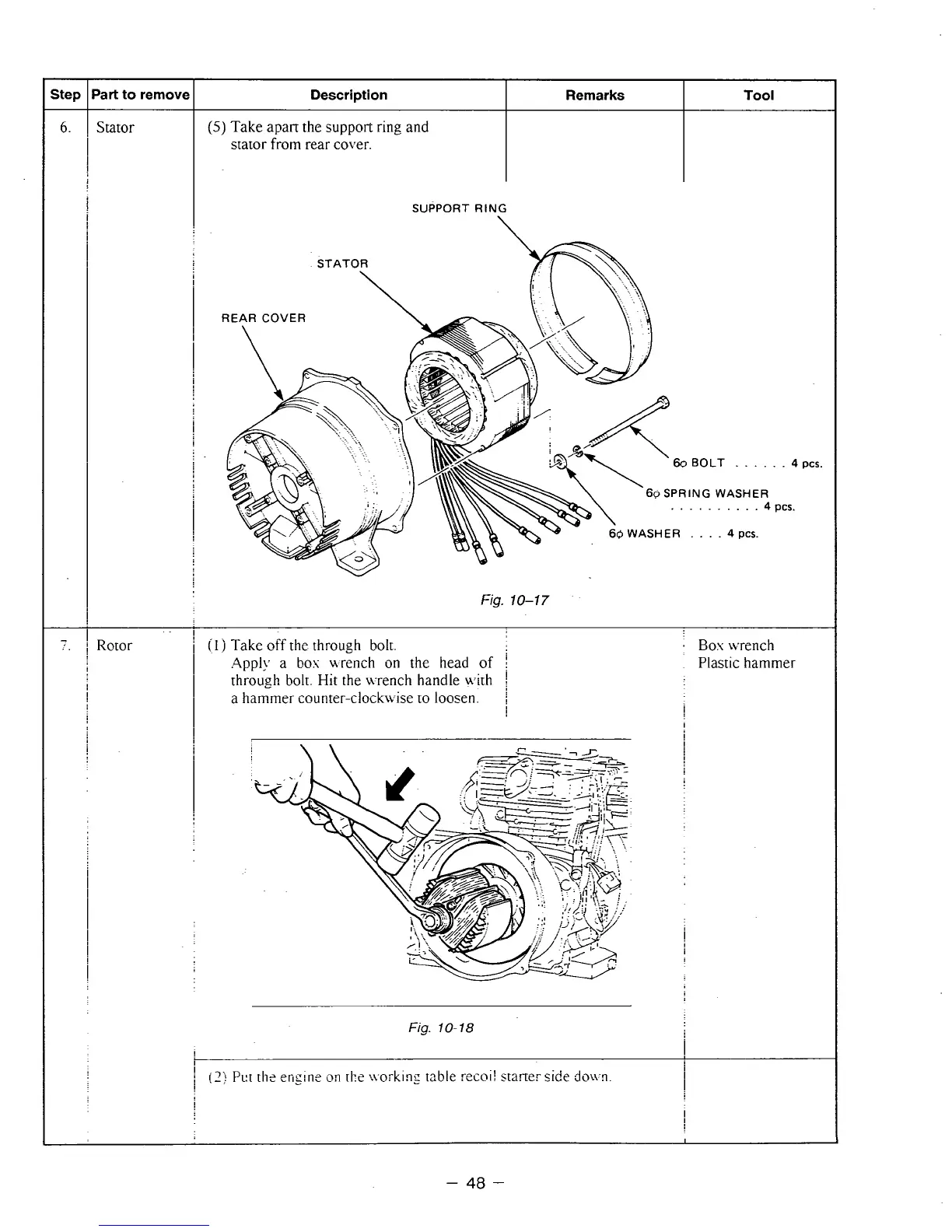

Robin RGV2200 User Manual

-
Step
6.
-
-
..
Part to remove I Description
Remarks
Tool
Stator
Rotor
..
(5) Take apart the support ring and
stator
from rear cover.
SUPPORT RING
\
60 BOLT ...... 4 pcs.
60 SPRING WASHER
......... .4 pcs.
Q WASHER .... 4 pcs.
Fig. 10-1 7
i 1 i Take off the through Dolt.
.Apply a box nrench on the head of I
through bolt. Hit the Lvrench handle with 1
a hammer counter-clockwise to loosen. j
Fig. 10-18
Box lvrench
Plastic hammer
- 48 -
