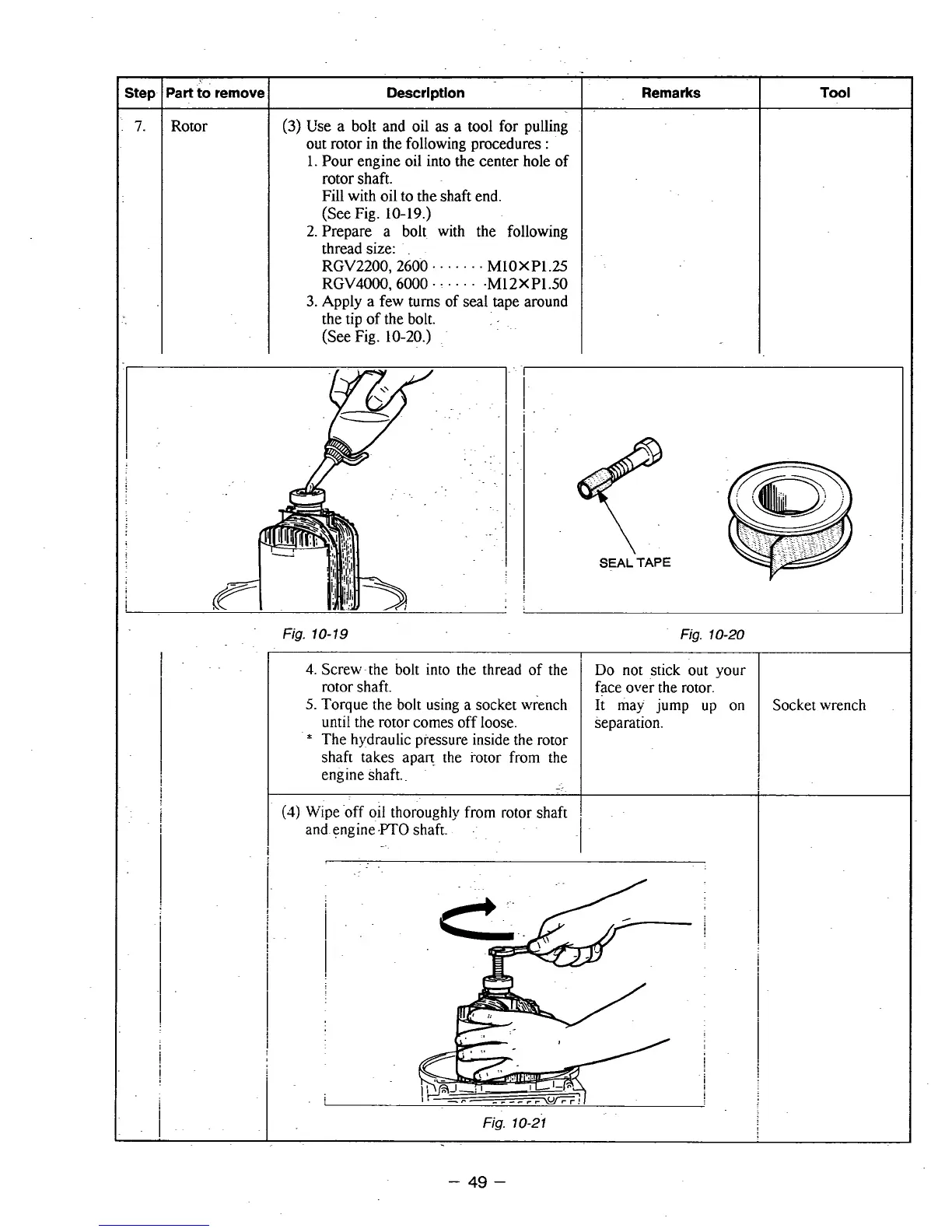

Step
I.
-
I
Dart to remove
Rotor
Description
(3)
Use a bolt and oil as
a
tool for pulling
out rotor
in
the following procedures
:
1. Pour engine oil into the center hole of
rotor shaft.
Fill with oil
to
the shaft end.
(See Fig. 10-19.)
thread size:
2.
Prepare a bolt with the following
RGV2200,2600.
......
MIOXP1.25
RGV4000,6000..
....
.M12XP1.50
3.
Apply a few turns of seal tape around
the tip of the bolt.
Remarks
Tool
Fig.
10-19
4.
Screw~the bolt into the thread of the
rotor shaft.
5.
Torque the bolt using a socket wrench
until
the rotor comes
off
loose.
*
The hydraulic pressure inside the rotor
shaft takes apan the rotor from the
engine shaft.
Fig.
10-20
Do
not stick out your
face over the rotor.
It
may
jump
up
on
separation.
Socket wrench
(4)
Wipe .off oil thoroughly from rotor shaft
and
engine-PTO shaft.
I
Fig.
10-21
-
49
-
