10-3-8 FUEL TANK

(1) Hand tighten the strainer screw as far as it will

go, loosen it again by one or two rotations (fuel

outlet faces down), then tighten the lock nut.

(2) Mount the fuel tank on the frame with rubber

washers between the tank flange and the

frame.

M6 x 20 mm bolt (black) . . . 4 pcs.

Rubber washer . . . 4 pcs.

NOTE : For easy tank assembly, glue the rubber

washers over the mounting holes of the

frame.

(3) Connect the rubber pipe.

First, fit the hose clamps on the rubber pipe and

connect it to the strainer and the carburetor. Then

fasten it with the hose clamps.

NOTE : Apply a drop of oil to the rubber pipe for

easier connection.

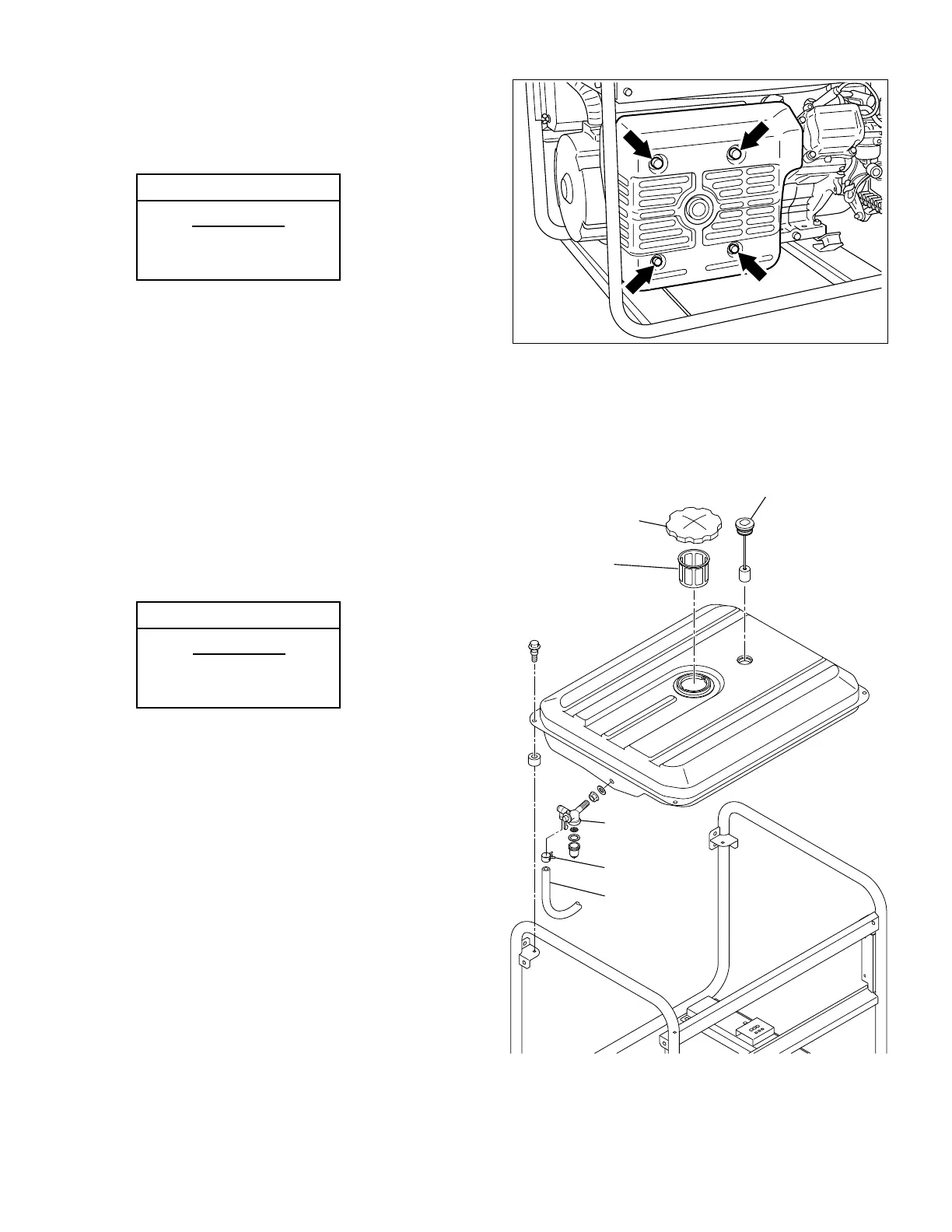

Fig. 10-34

FUEL

STRAINER

HOSE CLAMP

RUBBER PIPE

FUEL GAUGE

FUEL FILTER

FUEL TANK CAP

(7) Assemble the muffler cover (front).

(See Fig. 10-33)

M6 x 12 mm flange bolt . . . 2 pcs.

Fig. 10-33

euqrotgninethgiT

m-N9.5-5.4

mc-gk06-05

bl-tf3.4-6.3

euqrotgninethgiT

m-N9.6-5.4

mc-gk07-05

bl-tf1.5-6.3
