Robin RGV7500 Service Manual

- 46 -
(4) Attach the muffler to the exhaust pipe and gen-
erator rear cover without tightening.
(5) Tighten the muffler to the exhaust pipe.
(See Fig.10-31.)
M8 x 20 mm bolts . . . 2 pcs.
(6) Tighten the muffler bracket to the generator cover. (See Fig.10-32.)
M8 x 20 mm bolt and washer Ass’y . . . 2 pcs.

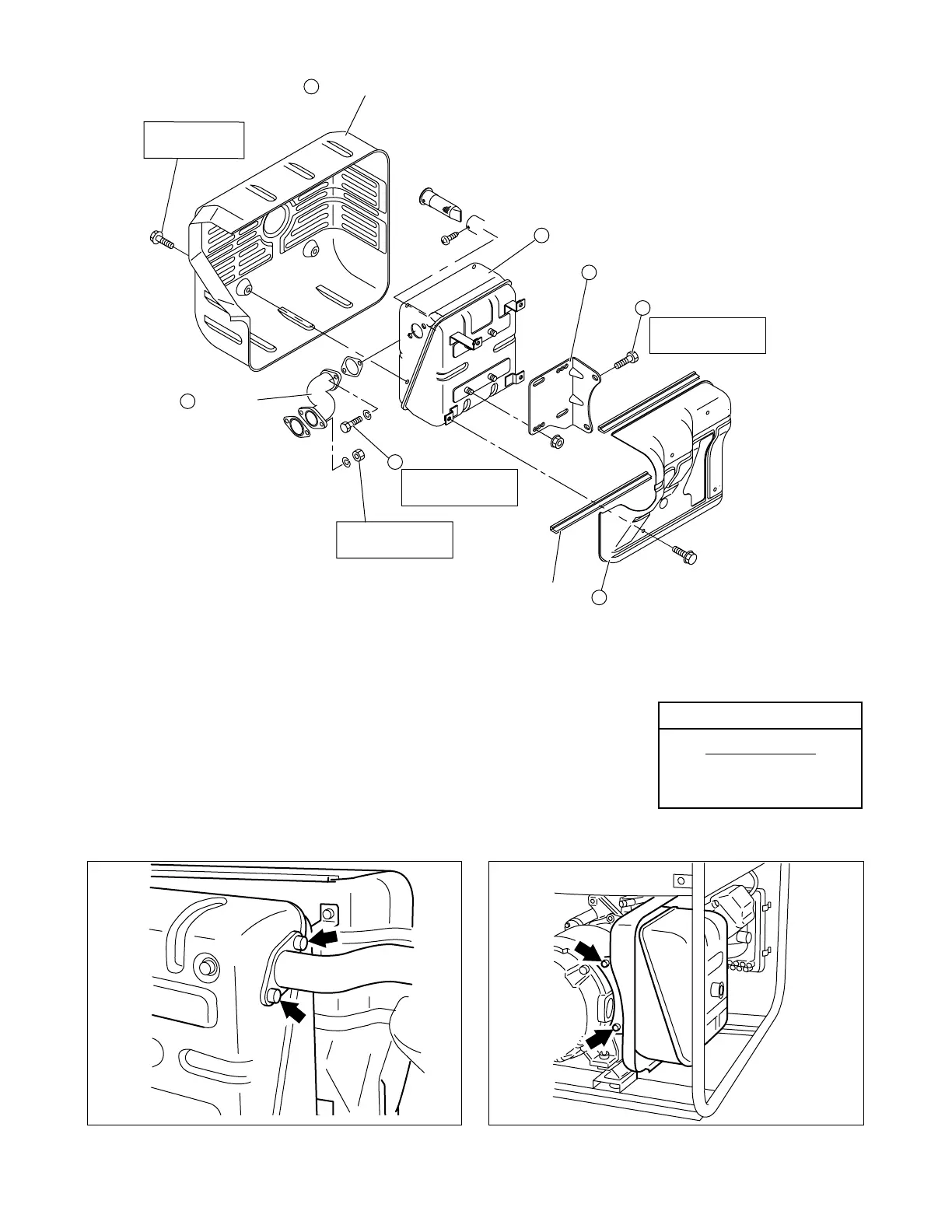

Fig. 10-30
Fig. 10-32Fig. 10-31
euqrotgninethgiT
m-N5.62-5.22
mc-gk072-032
bl-tf5.91-6.61
1 EX. PIPE
2 MUFFLER BRACKET
3 MUFFLER
4 M8 BOLT
4 M8 BOLT
3 MUFFLER COVER
(
REAR
)
SEAL RUBBER
7 MUFFLER COVER
(
FRONT
)
22.5 - 26.5 NĂm
230
- 270 kgĂcm
22.5 - 26.5 NĂm
230
- 270 kgĂcm
4.5 - 5.9 NĂm
50
- 60 kgĂcm
22.5 - 26.5 NĂm
230
- 270 kgĂcm
