RoboBuilder RQ-110 - Page 30

30

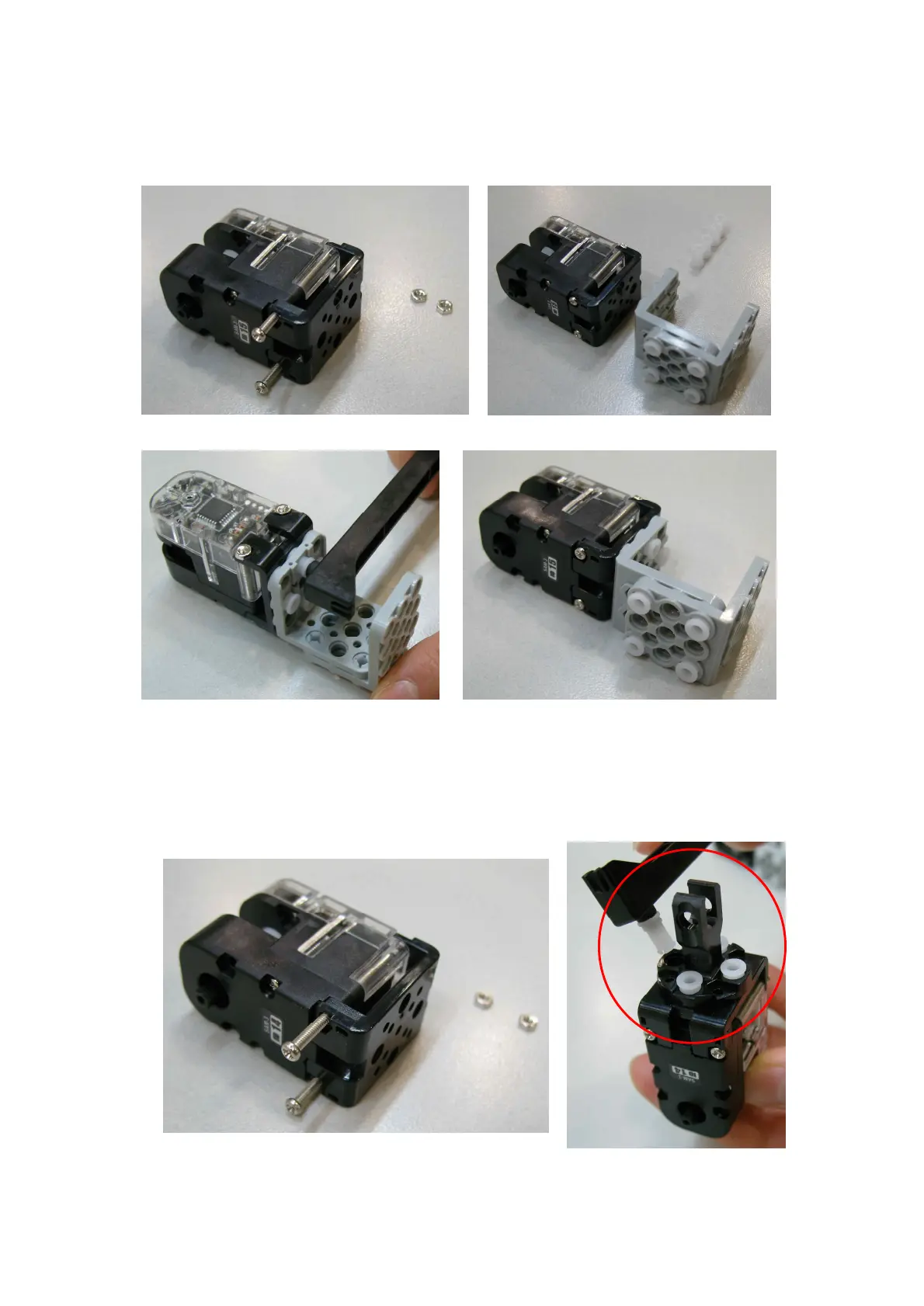

STEP2. Connect ID15 and ‘U’ Frame by using Bolt (B27) and Nut, then connect with “Hand” part by using
2s rivets.
STEP3. Connect ID14 and ‘U’ Frame by using Bolt (B27) and Nut, then, connect with Joint Frame.
Be careful of Joint Frame direction when you connect with smart servo.
