RoboBuilder RQ-110 - Right LEG Assembly

19
2.3 Right LEG Assembly

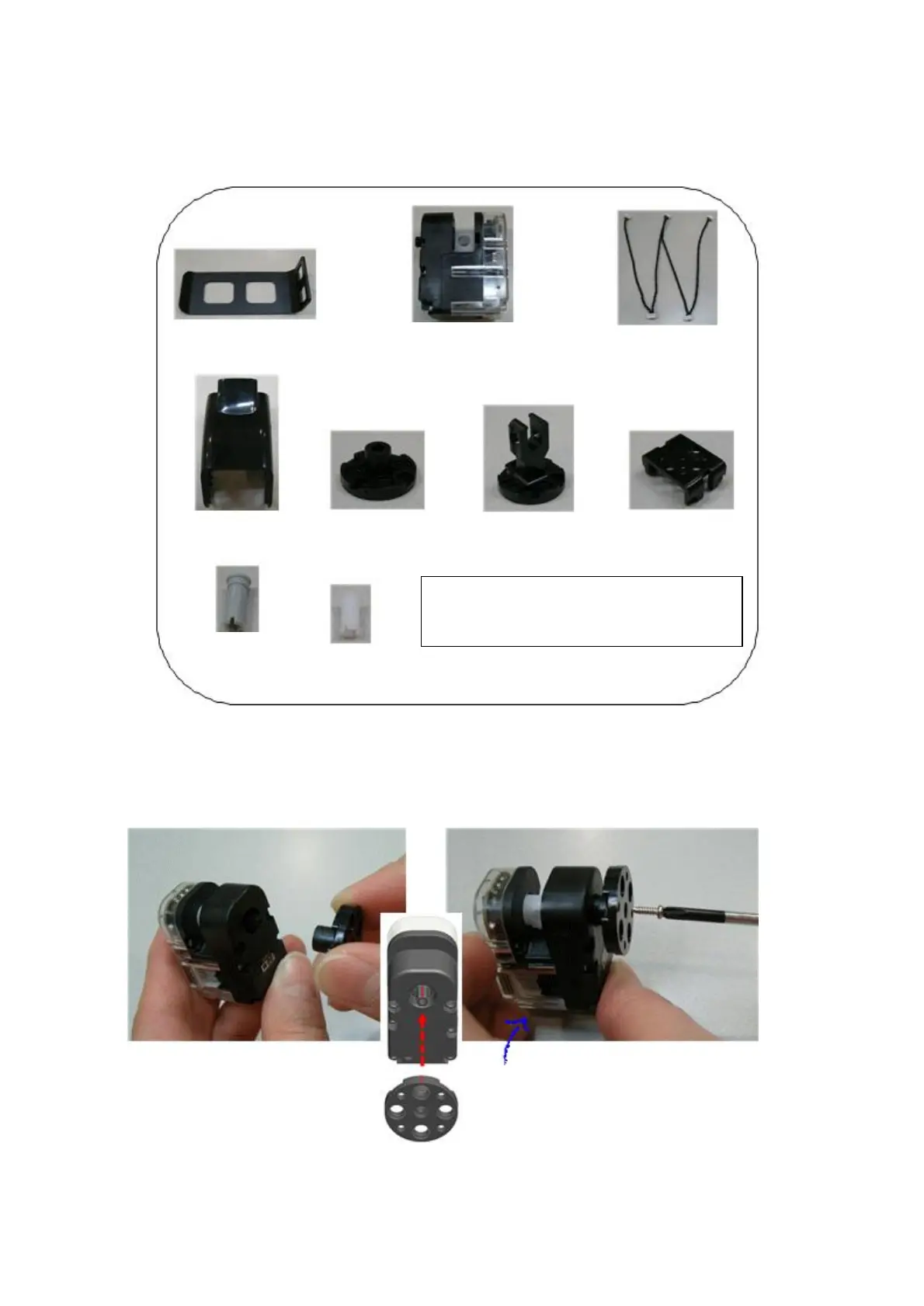

STEP1. Insert front horn to smart servo ID09, then fix it with screw (P6).
Before insert front horn to smart servo, check the chase mark as the below.
Foot Frame
Smart Servo * 4
(ID 06, 07, 08, 09)
W Cable * 1
Knee Frame * 1
Front Horn * 1
Joint Frame * 2
‘U’ Frame * 1
3s rivet * 2
2s rivet * 8
Screw (P6) * 1, Bolt (B12) * 1
Bolt(B27)*4, Bolt (B35) *5, NUT * 10
Front horn chase mark
should be in center position
(12 o’clock direction)
Be careful that smart servo initial
position should not be rotated
when you put screw into front
