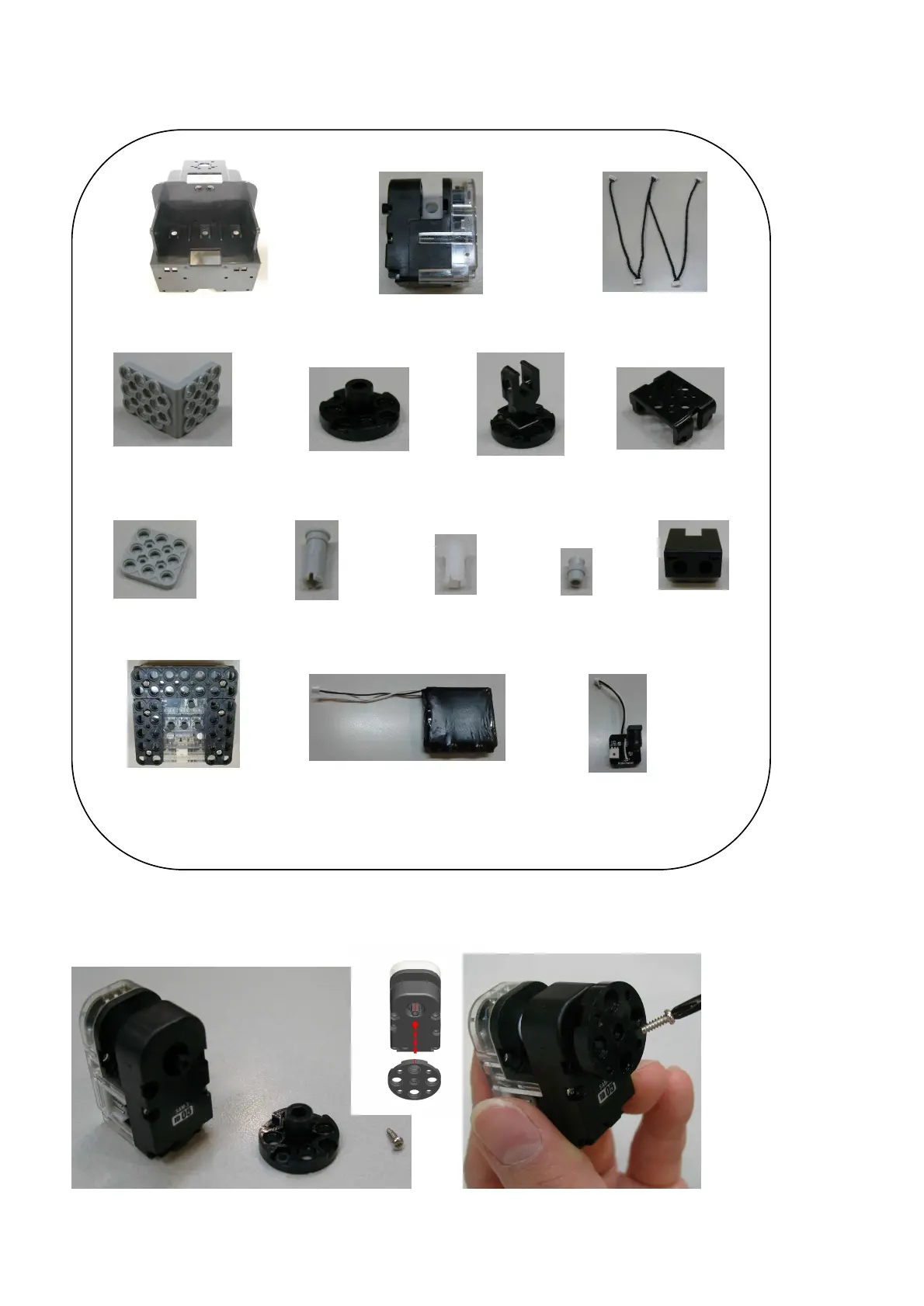

2.7 BODY Assembly
Body Frameⅹ1 Smart Servoⅹ4(ID00, ID05, ID10, ID13) W Cable x 2
3*6 L type Frameⅹ2 Front Hornⅹ4 Joint Frameⅹ4 U Frameⅹ2
3*3 Frameⅹ1 3s rivetⅹ8 2s rivetⅹ20 double rivetⅹ10 IRⅹ1
Smart Controllerⅹ1 Li-Poly Batteryⅹ1 Charging Board*1
Screw(P6)ⅹ4, Bolt (B6)ⅹ2, Bolt (B27)ⅹ4, Bolt (B30)ⅹ4, Nutⅹ10
STEP1. Connect Front Horn to ID05 by using screw (P6).
Front horn chase mark should be in center position (12 o’clock direction)
