RoboBuilder RQ-110 - LEFT LEG Assembly

24

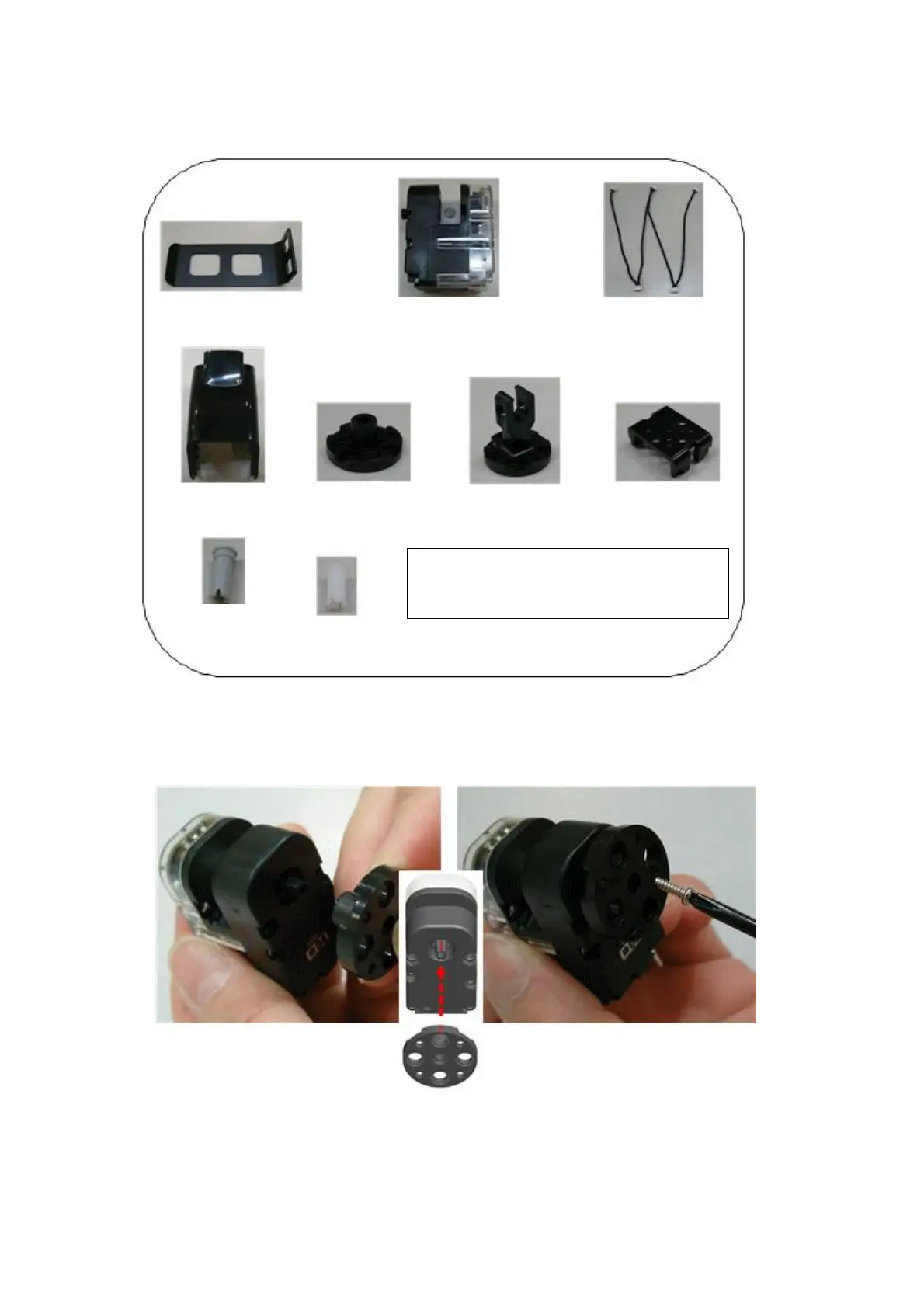

2.4 LEFT LEG Assembly
STEP1. Connect Front Horn to smart servo “ID04” by using screw (P6).
Foot Frame
Smart Servo * 4
(ID 01, 02, 03, 04)
W Cable * 1
Knee Frame * 1
Front Horn * 1
Joint Frame * 2
‘U’ Frame * 1
3s rivet * 2
2s rivet * 8
Screw (P6) * 1, Bolt (B12) * 1
Bolt(B27)*4, Bolt (B35) *5, NUT * 10
Front horn chase mark
should be in center position
(12 o’clock direction)
