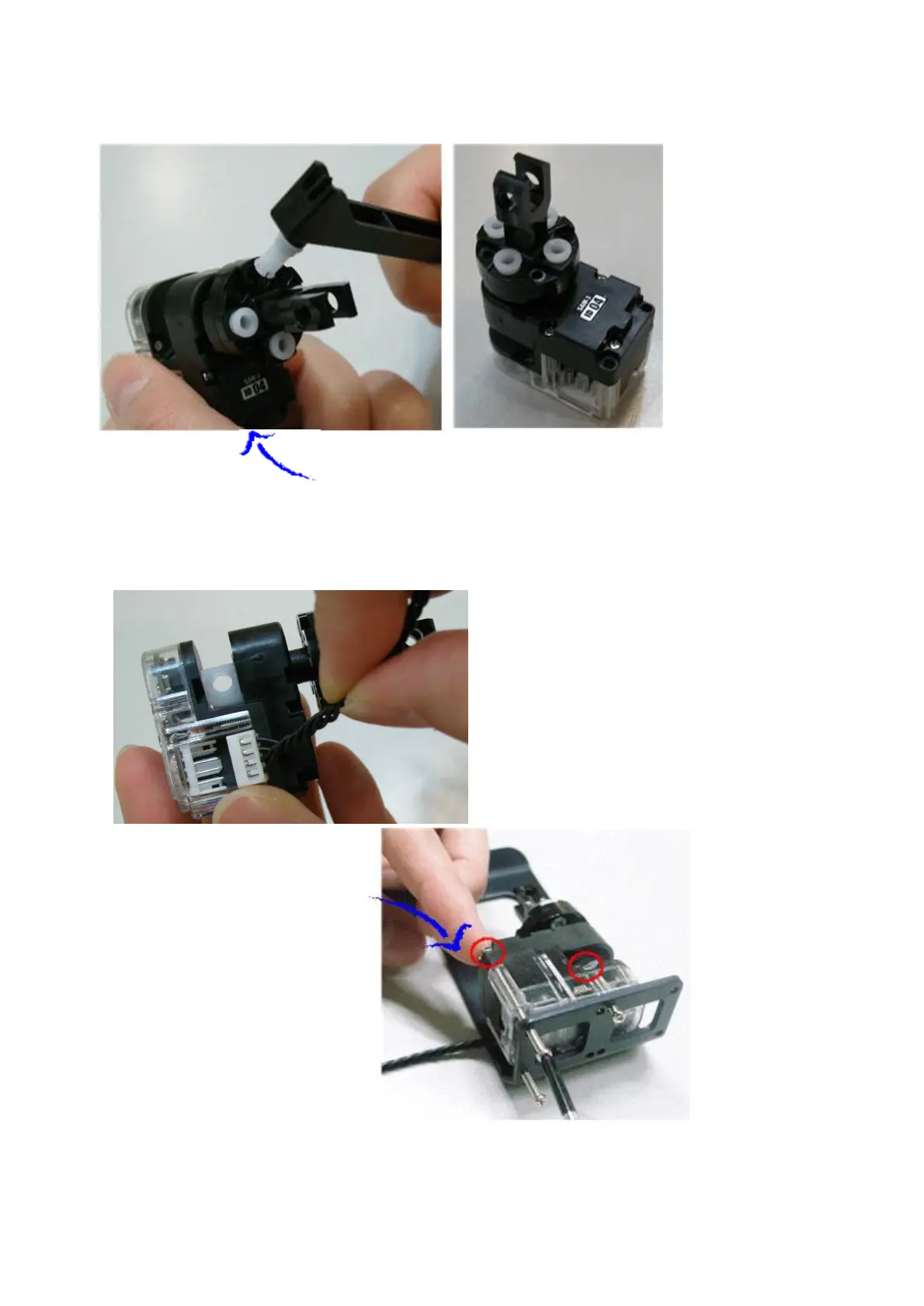

STEP2. Connect Front Horn and Joint Frame by using 2s rivets.
Be careful with Joint Frame direction.
STEP3. Insert “W Cable” with ID04, then connect Foot Frame by using Bolt(B12, B27) and Nut.
⇦ W Cable connection to ID04
NUT connect position
