RoboBuilder RQ-110 - LEFT ARM Assembly

32
2.6 LEFT ARM Assembly

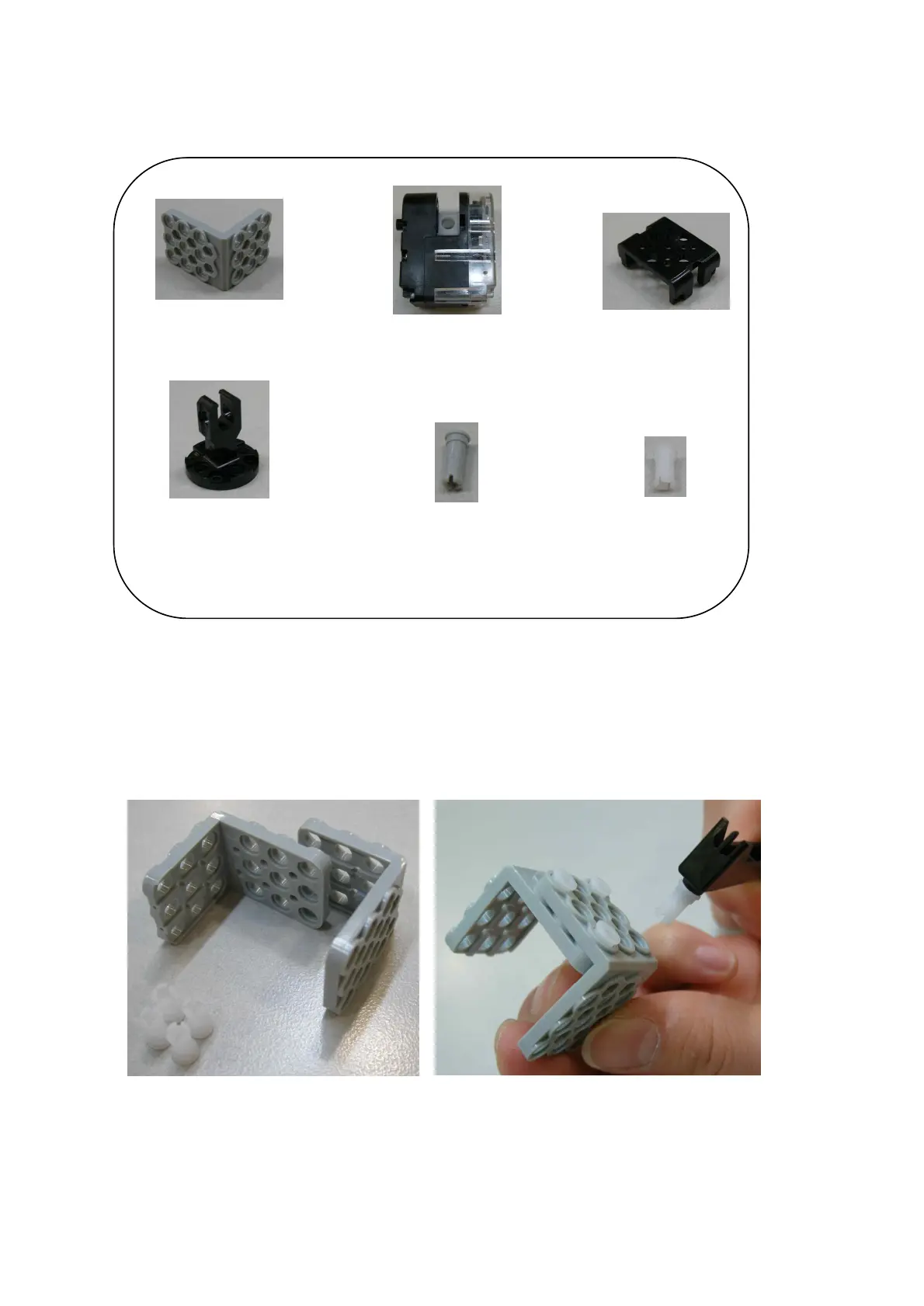

3*6 L type Frameⅹ2 Smart Servoⅹ2(ID11, ID12) ‘U’ Frame x 2
Joint Frameⅹ1 3s rivetⅹ1 2s rivetⅹ12
Bolt (B27) x 4, NUT x 4
STEP1. Make “Hand” part by using the two 3*6 L type Frame and “2s rivets” as shown in the below.
Becareful with 3*6 L type Frame part direction because the both sides are not same.
