26

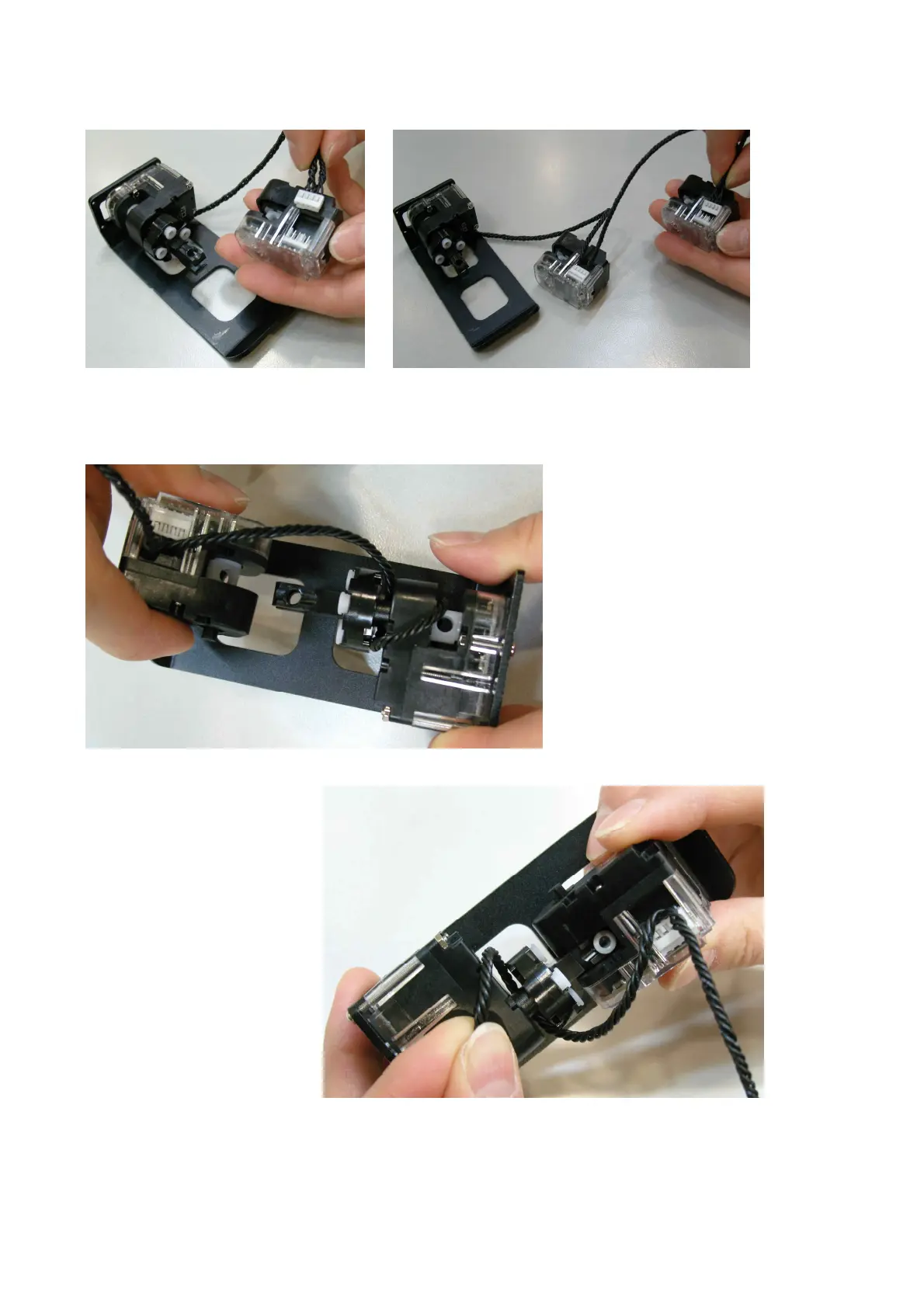

STEP4. Connect W Cable with ID03 and ID02.
STEP5. ConnectJoint Frame” with ID03 by using 3s rivet. Then, rotate W Cable1~2 times and fix it.
