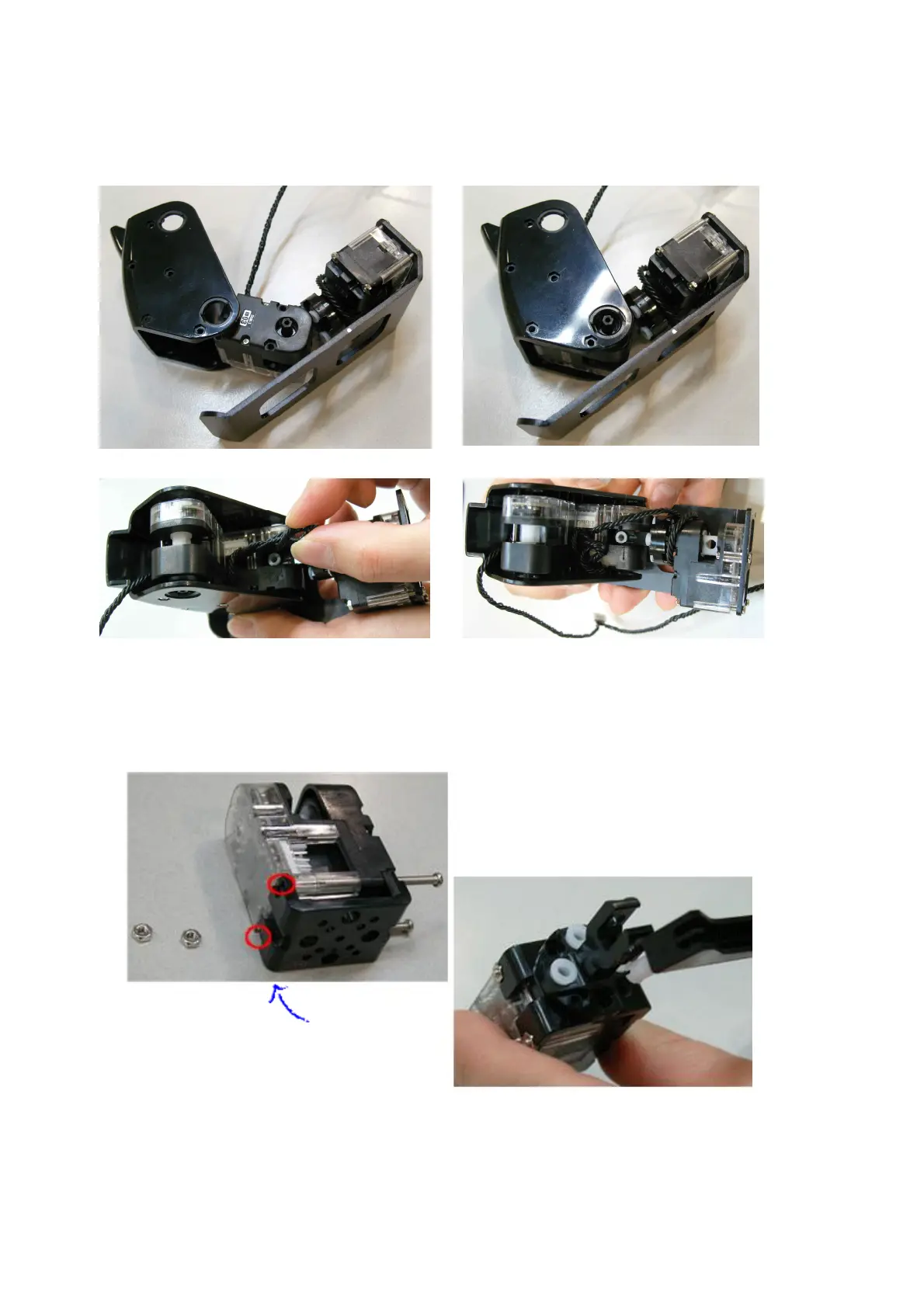

STEP6. Connect ID03 and ID02 with “Knee Frame” by using Bolt (B35) and Nut. Then, rotate the W Cable
3~4 times and put into empty space.
STEP7. Connect ID01 and ‘U’ frame by using Bolt (B27). Then use the 2s rivet to fix with “Joint Frame”.
NUT
Be careful JOINT frame direction
