Transport and positioning
Installation, use and maintenance manual – Next-R
27
2
oor.
2.4.2.3 Vertical downow gas unit heaters
A minimum distance of 1 m from all sides is required
around the vertical downow gas unit heater.
Table 2.1 p. 27 shows recommended minimum and
maximum heights for installation and the air jet range to
the oor, depending on the actual height of the gas unit
heater from the oor (indicated with H).
For vertical downow gas unit heaters, the louvres
of the delivery grille must be in the fully open po-
sition.

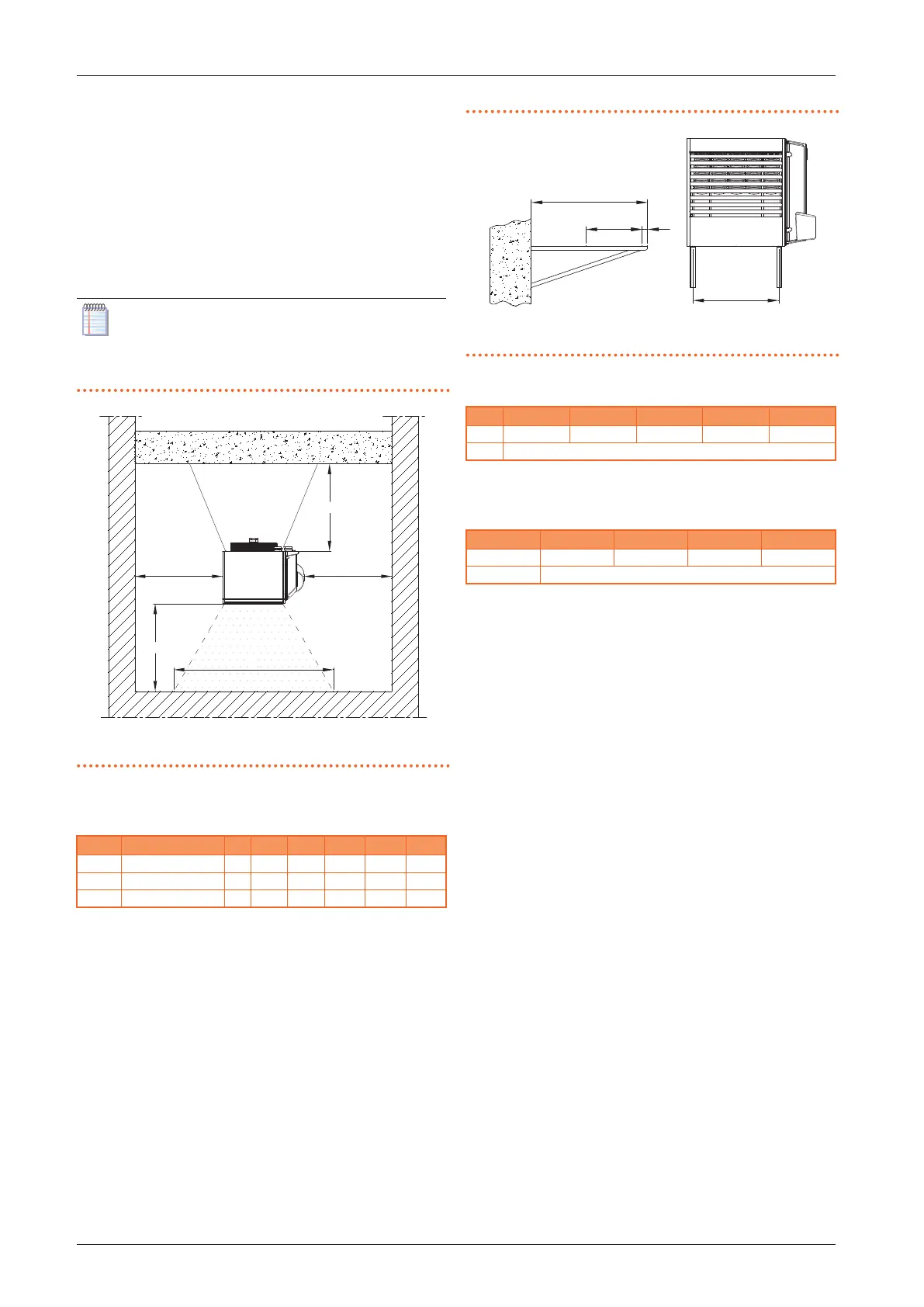

Figure2.3 Clearances
A Air jet range
H Gas unit heater installation height
> 1 m
H
> 1 m> 1 m
A
Table2.1 Installation height and air jet range for vertical down-
ow gas unit heaters
R15 R20 R30 V R40 V R50 V
Hmin Minimum height m 3,0 3,0 3,5 5,0 6,0
Hmax Maximum height m 4,0 4,0 6,0 7,0 8,0
A Air jet range m 16-H 16-H 20-H 22-H 24-H
E.g.: if a R40 V is installed at 6 m from the ground (H = 6),
the air jet range value (A) is (22 - 6) = 16 m.
2.5 SUPPORT BRACKET
Robur provides easy mounting support brackets as an op-
tional, suitably designed for Next-R series gas unit heaters,
which allow simplifying the wall xing.
If you do not want to use these options, refer to Figure
2.4 p.27 .
When xing the unit to the support brackets, use 4 M10
bolts.
Figure2.4 Installation with support bracket
A Gas unit heater xing points centre distance
B Support bracket length
40405
B
A
Table2.2 Support bracket dimensions for axial gas unit heaters
R30 R40 R50 R60 R80
A 370 370 620 810 1010
B 840
Table2.3 Support bracket dimensions for centrifugal gas unit
heaters
R30 C R40 C R50 C R80 C
A 370 370 620 1010
B 1400
For vertical downow gas unit heater, indications are giv-
en on how to proceed with the gas unit heater suspension.
2.5.1 Axial gas unit heaters
For axial gas unit heaters the following support brackets
are available as optional:
▶ OSTF020 revolving wall support bracket (R15, R20
models)
▶ O19800020 revolving wall support bracket (R30, R40
models)
▶ O19800026 revolving wall support bracket (R60 mod-
el)
▶ O19800028 revolving wall support bracket (R80 mod-
el)
▶ OKMN000 revolving wall support bracket (R50 model)
▶ OSTF009 support bracket 1,4 m length
▶ OSTF005 tubular support bracket (modelli R30, R40,
R50, R60, R80)
All support brackets are supplied with bolts and the rear
support plate.
For mounting instructions of the brackets, refer to the rel-
evant instruction sheets.
2.5.2 Centrifugal gas unit heaters
For centrifugal gas unit heaters, the following mounting
brackets are available as optional:
▶ OSTF009 support bracket 1,4 m length
All support brackets are supplied with bolts and the rear
support plate.
For mounting instructions of the brackets, refer to the rel-
evant instruction sheets.
2.5.3 Vertical downow gas unit heaters
Vertical downow gas unit heaters do not require wall
