Rockville dB13 - 5 Channel Amp with 2 Channel Input

10

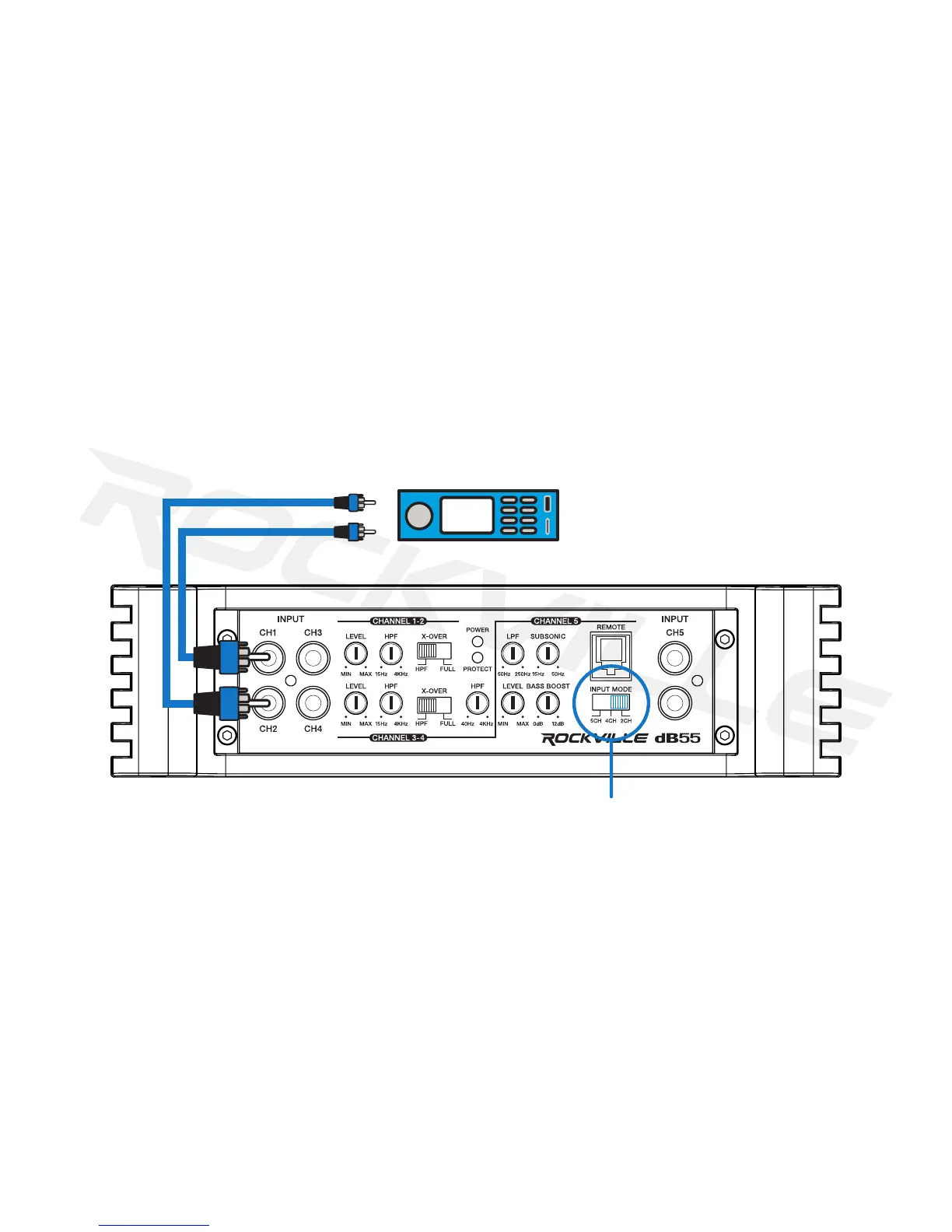

If your head unit has one single pair of RCA outputs, input them in to the ampliers Channel 1 and 2 input jacks and set the Input Mode Switch to 2Ch. The ampliers preamp circuitry will automatically
mix all the channels and output will occur on all 5 channels. There will be Left and Right balance with constant subwoofer but no Front to Rear Fader Control.
5 Channel Amp with 2 Channel Input
TO AUDIO OUTPUTS OF HEAD UNIT OR SIGNAL
PROCESSOR WITH STEREO OUTPUTS
INPUT MODE SWITCH
IN 2CH POSITION
L
R
