Rockville dB13 - 4 Channel Amp with Dual Mixed Mono Configuration

18
ALL CROSSOVER SETTINGS
IN THIS MODE SHOULD BE
SET TO FULL RANGE.

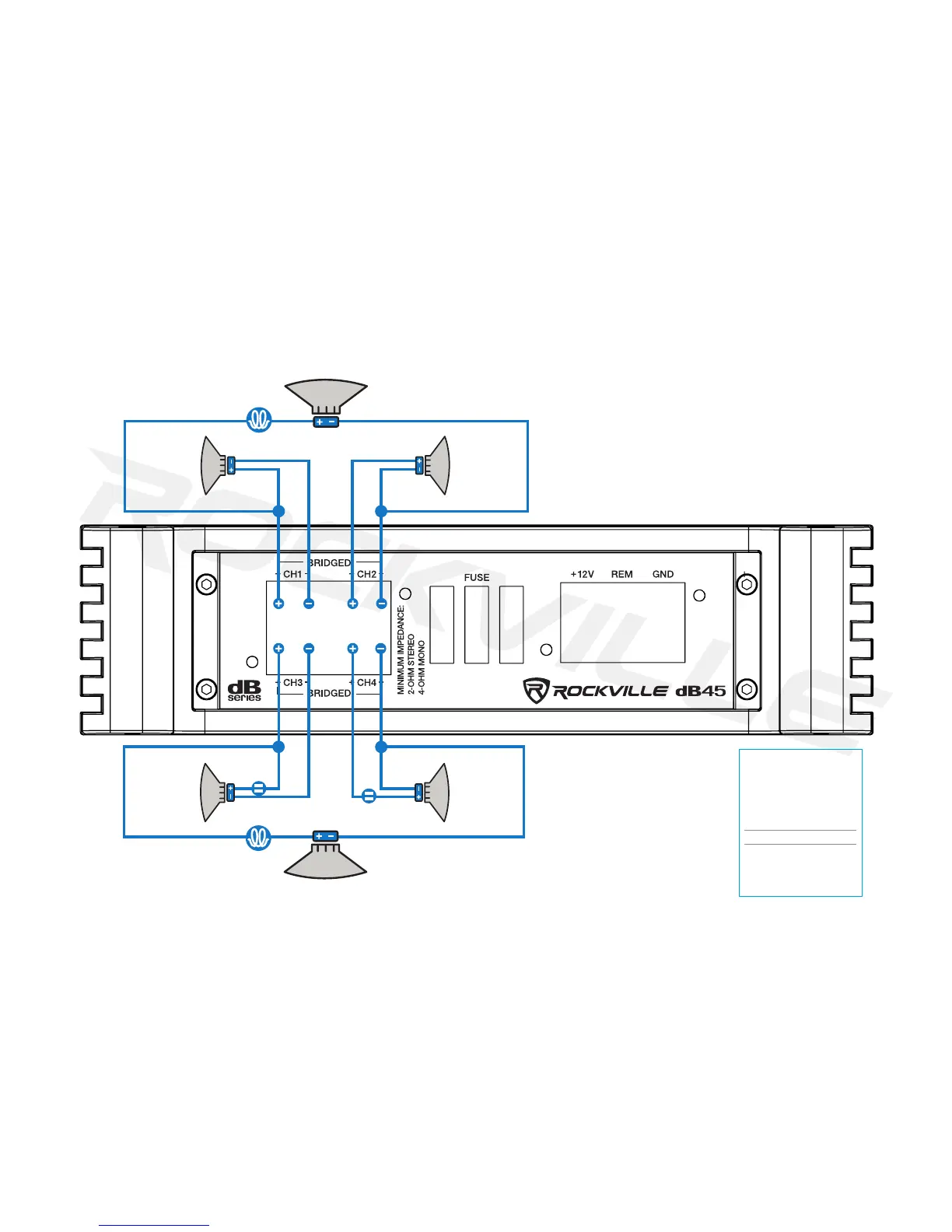

When conguring mixed mono systems, wire either
using SYSTEM A or SYSTEM B depending on the use of
external passive crossovers.
SYSTEM B
SUBWOOFER
MINIMUM IMPEDANCE
8 OHMS
SUBWOOFER
MINIMUM IMPEDANCE
4-8 OHMS
REAR SPEAKERS
HIGH PASS FILTER
CAPACITOR
HIGH PASS FILTER
CAPACITOR
LOW PASS
FILTER INDUCTOR
LOW PASS
FILTER INDUCTOR
LEFT
SPEAKER
4 OHM
LEFT
SPEAKER
4 OHM
RIGHT
SPEAKER
4 OHM
RIGHT
SPEAKER
4 OHM
SYSTEM A
FRONT SPEAKERS
4 Channel Amp with Dual Mixed Mono Configuration
COMPONENT
VALUES FOR
6dB PASSIVE
CROSSOVER
4 OHM
FREQUENCY INDUCTOR
80 Hz
100 Hz
120 Hz
150 Hz
16 mH
13 mH
11 mH
9 mH
