13

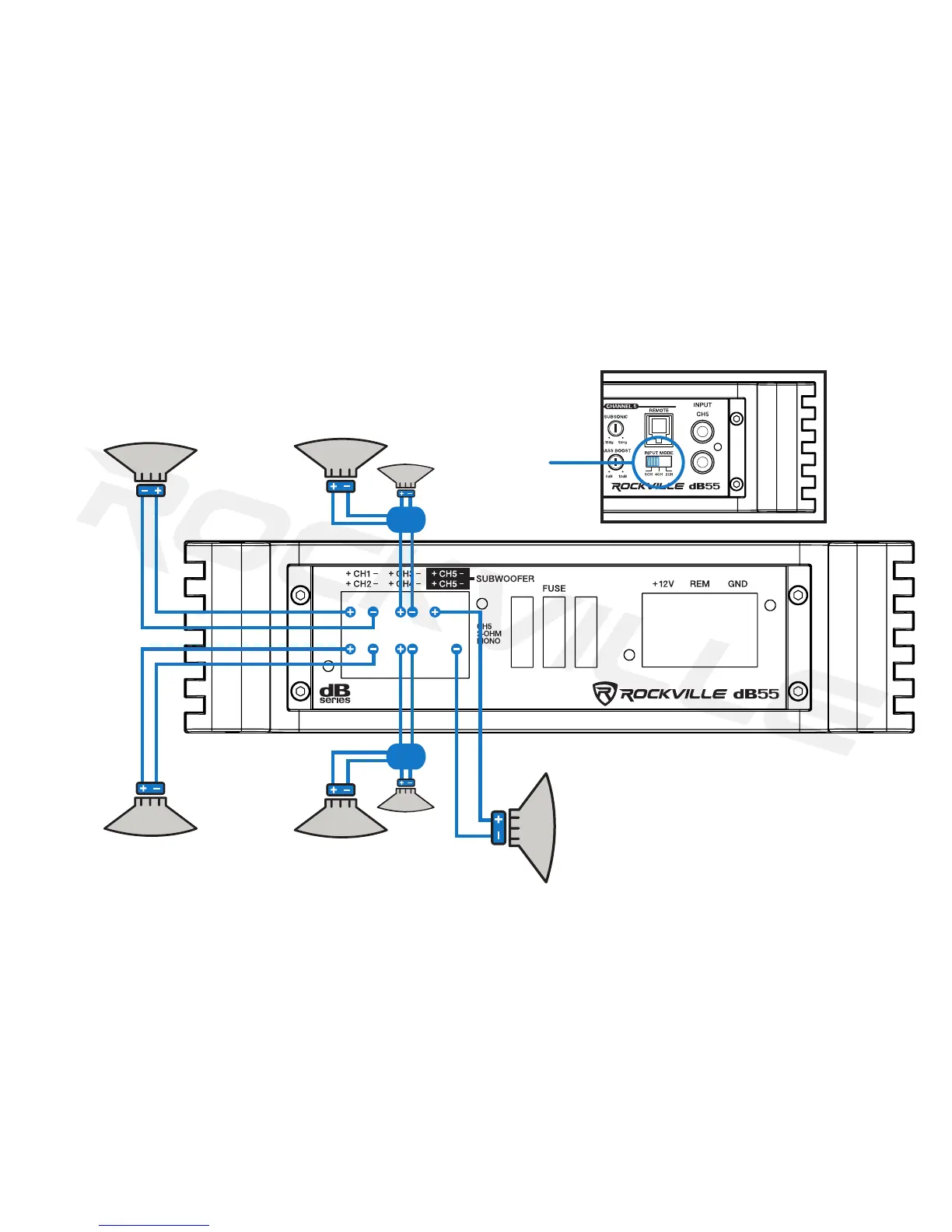

INPUT MODE SET
TO 5 CHANNEL
Minimum impedance for channels 1 through 4 is 2 ohm stereo.
Channel ve minimum impedance is 2 ohm mono capable.
SUBWOOFER
MINIMUM IMPEDANCE
2–4 OHMS
COMPONENT SPEAKERS
MINIMUM IMPEDANCE
2–4 OHMS
COMPONENT SPEAKERS
MINIMUM IMPEDANCE
2–4 OHMS
COMPONENT SPEAKERS
MINIMUM IMPEDANCE
2–4 OHMS
5 Channel Amp Speaker Wiring
