Rockville dB13 - Basic 4 Channel Configuration

14
CROSSOVER MODE SWITCHES
IN FULL RANGE POSITION
RIGHT
SPEAKER
2–4 OHM
REAR SPEAKERS
LEFT
SPEAKER
2–4 OHM

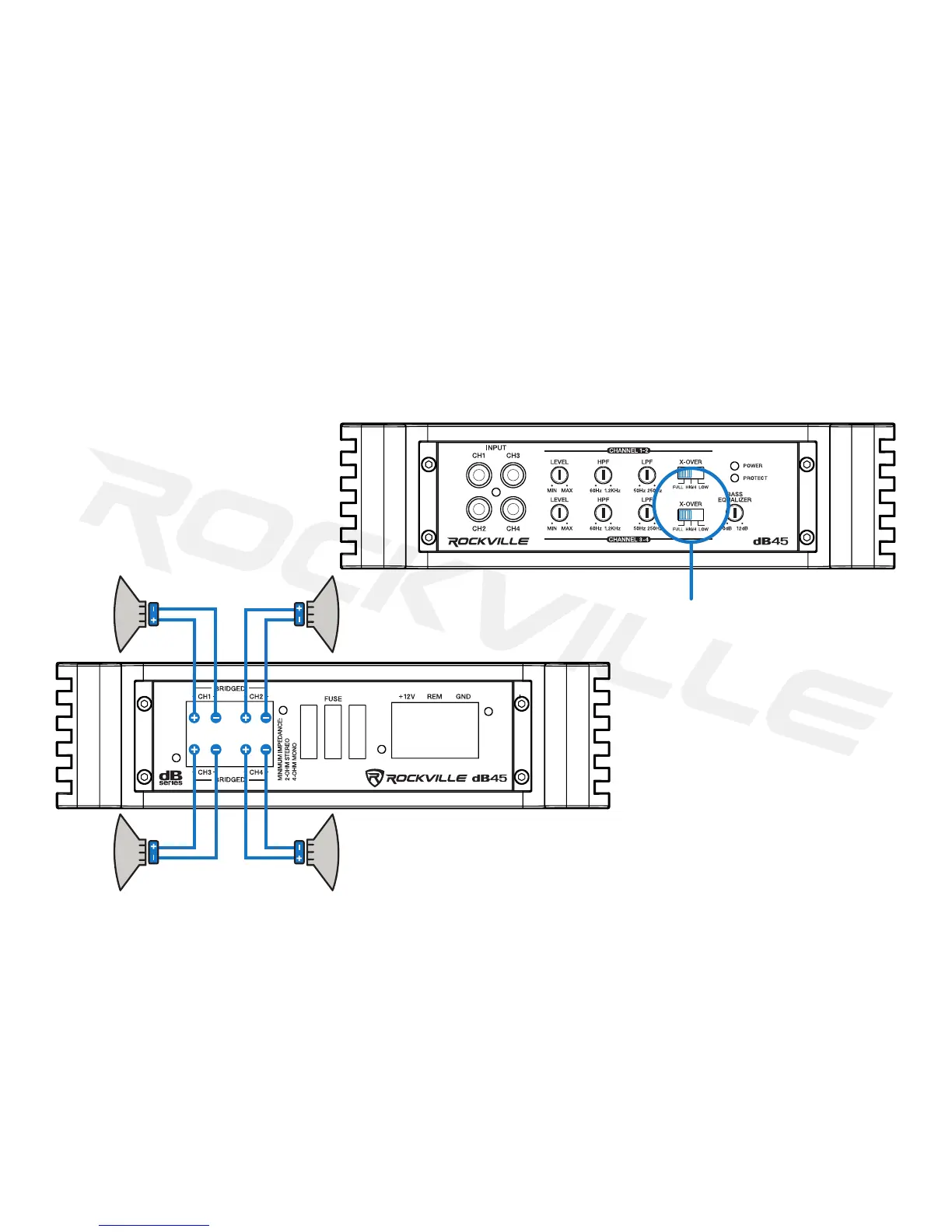

Install any combination of speakers independently on all 4 channels being careful not to load any single channel below 2 ohm stereo. For typical 6˝ x 9˝ or 6.5˝ or component speaker
installs, set the Crossover Mode Switches to Full Range.
RIGHT
SPEAKER
2–4 OHM
FRONT SPEAKERS
LEFT
SPEAKER
2–4 OHM
Basic 4 Channel Configuration
