Rockville dB13 - 5 Channel Amp with 4 Channel Input

11
5 Channel Amp with 4 Channel Input
If your head unit has two pairs of RCA outputs, input Front Left and Front Right in to amplier Channels 1 and 2 input jacks. Rear Left and Rear Right in to ampliers Channels 3 and 4 input jacks.
Set the Input Mode Switch to 4Ch. The ampliers preamp circuitry will automatically mix all the channels and output will occur on all 5 channels. There will be Left and Right balance, Front to Rear
Fader with constant subwoofer.

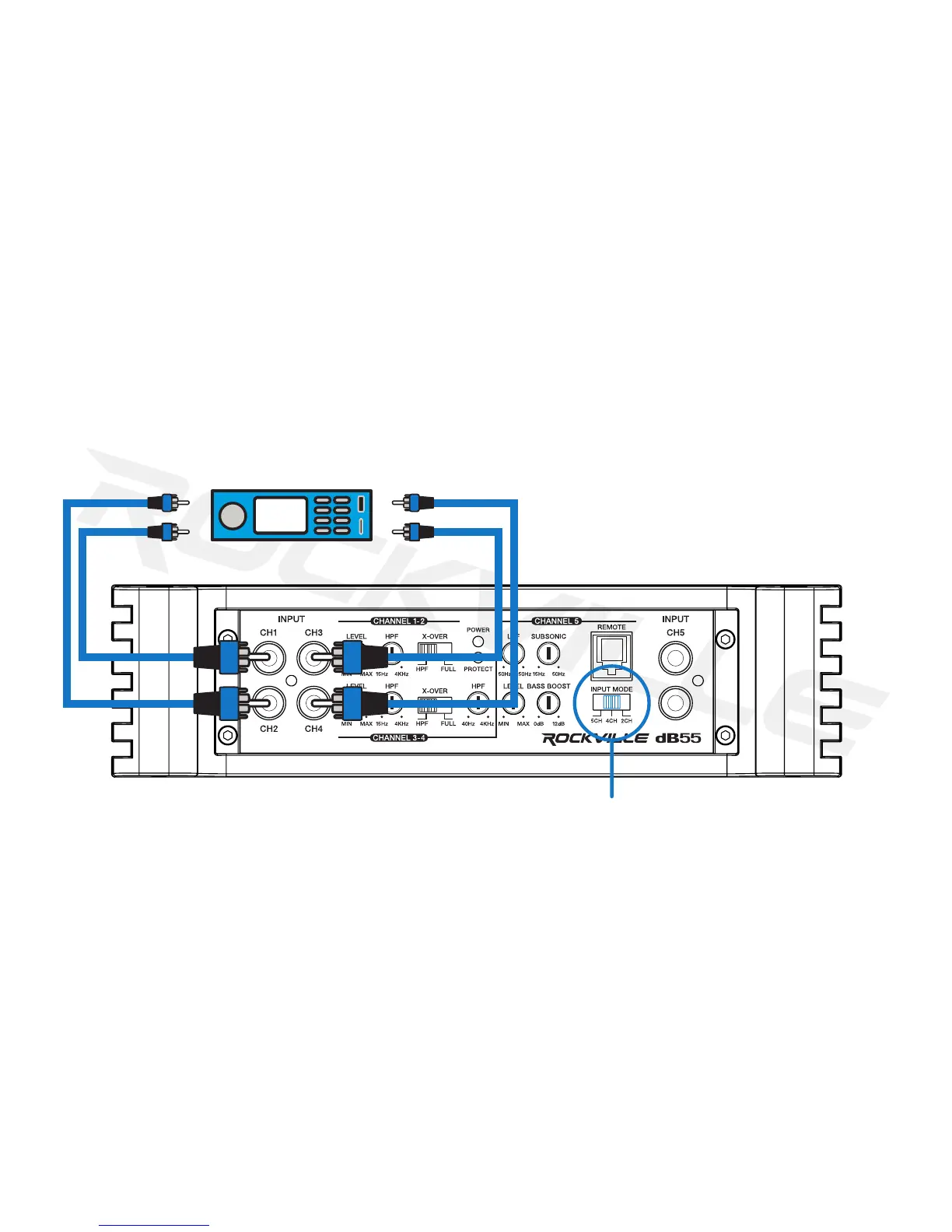

TO AUDIO OUTPUTS OF HEAD UNIT OR SIGNAL
PROCESSOR WITH STEREO OUTPUTS
INPUT MODE SWITCH
IN 4CH POSITION
L L
R R
