Rockville dB13 - Speaker Wiring Guide: Dual VC Configurations

29

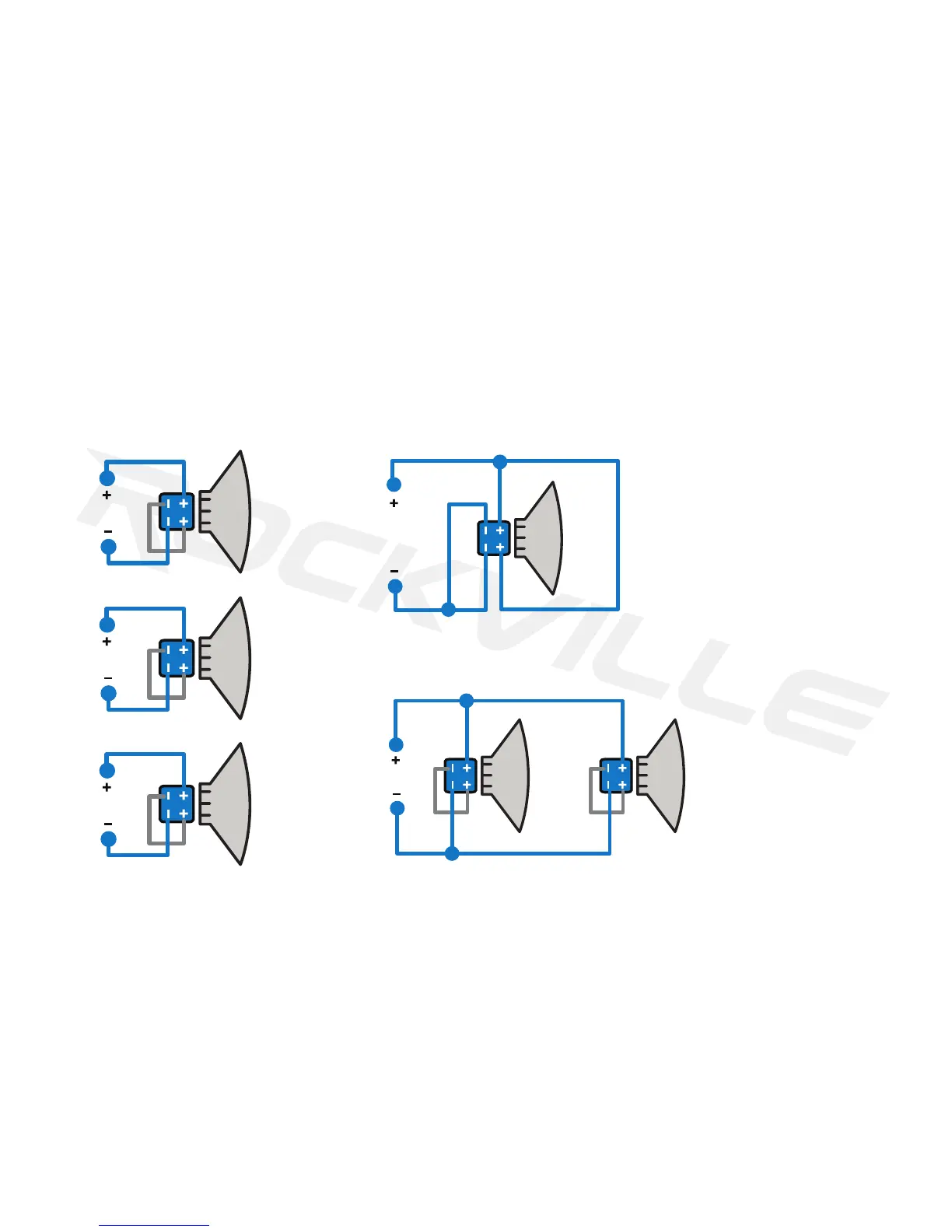

2 X DUAL VC 2 OHM SPEAKERS
WITH VOICE COILS,
ALL IN PARALLEL
SERIES:
DUAL VOICE COIL
SPEAKERS
PARALLEL:
DUAL VOICE COIL
SPEAKERS
Please note that the minimum impedance load
for single dB Series Ampliers is 2 ohm stereo
and 4 ohm mono bridged.
Lower impedance loads will cause overheating
and may damage the ampliers.
Do not mix dierent impedance speakers in
series and / or parallel combinations, as unequal
power sharing and acoustic outputs will result.
8 OHM TO
AMPLIFIER
4 OHM TO
AMPLIFIER
2 OHM TO
AMPLIFIER
2 OHM TO
AMPLIFIER
2 OHM TO
AMPLIFIER
4 + 4
OHM
4 + 4
OHM
2 + 2
OHM
2 + 2
OHM
2 + 2
OHM
1 + 1
OHM
Speaker Wiring Guide
