Rockwell Automation Publication 2198-UM005C-EN-P - February 2022 49
Chapter 3 Mount the Kinetix 5300 Drive System
This hole pattern applies when transitioning from frame 3 drives to frame 2
drives. To mount additional frame 2 drives to the right of Axis 2 in this figure,
refer to the frame 2 hole pattern in Figure 21
.

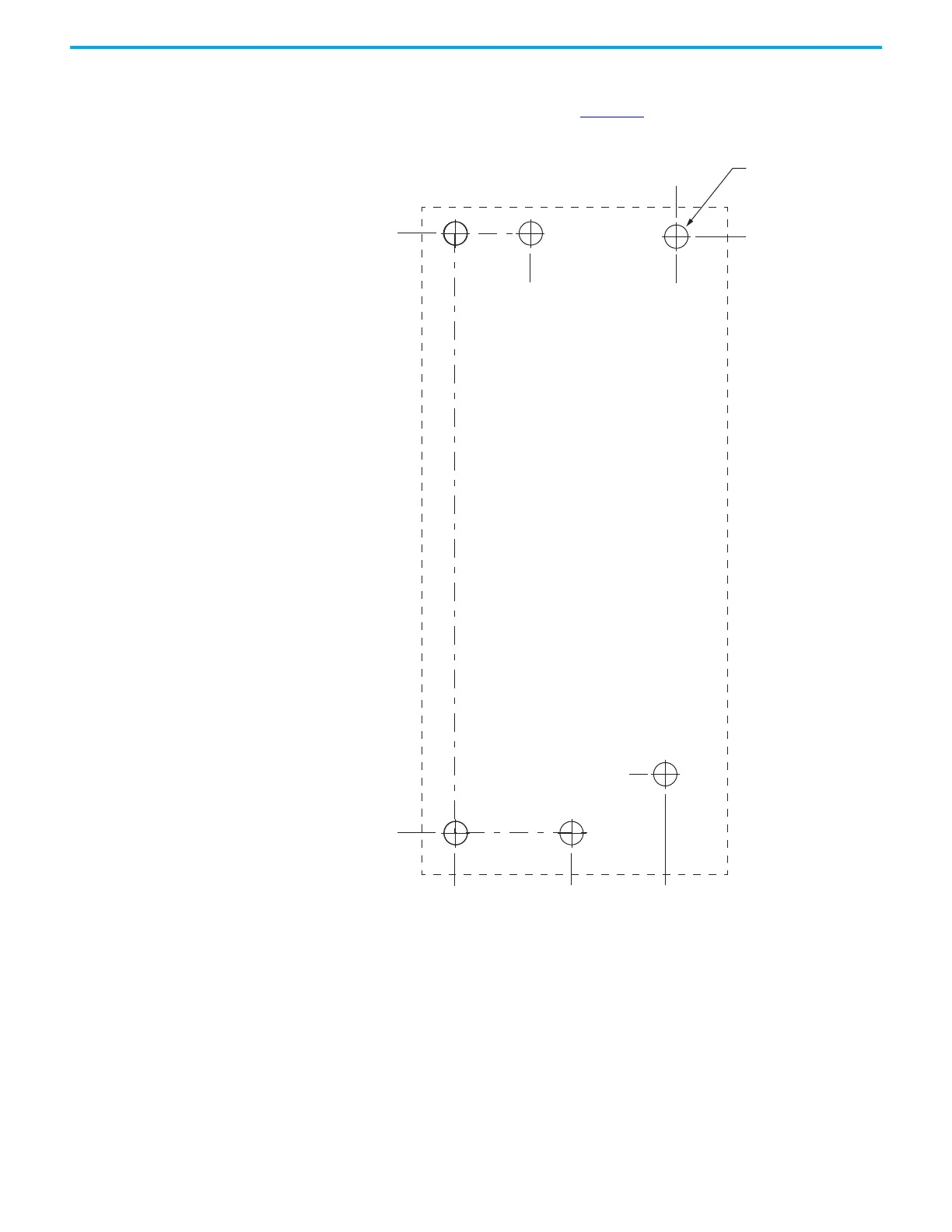

Figure 25 - Frame 3 to Frame 2 Hole Pattern
273.70
0
52.50
0
6x
ØM4 (#8-32)
Axis 1
(frame 3)
Axis 2
(frame 2)
272.24
28.40
95.00
100.00
34.00
Hole spacing is measured in millimeters
and not converted to inches to avoid errors
due to rounding.
