1-6 Contactor Product Description
1502-UM051E-EN-P – June 2013

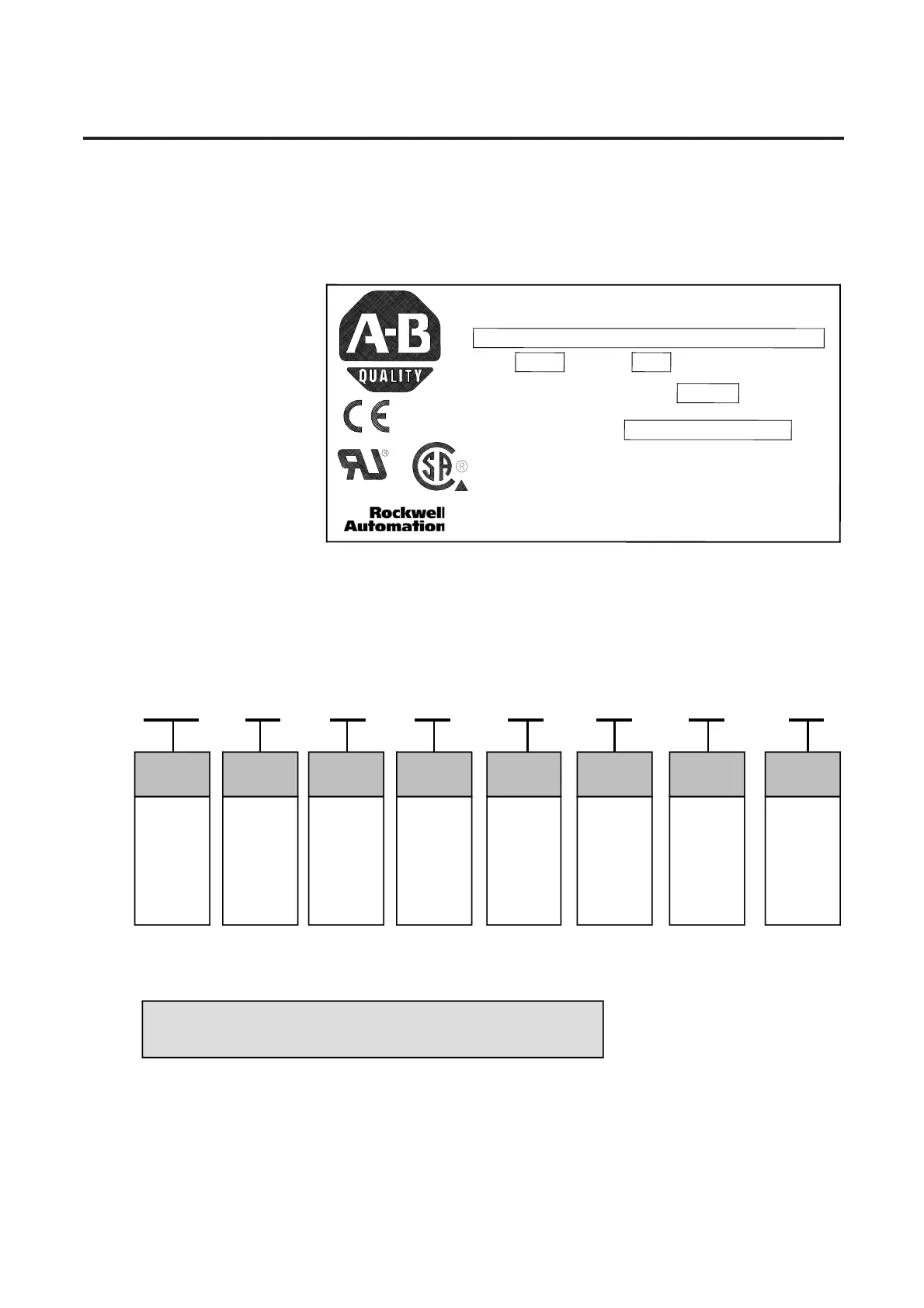

Contactor Identication Each contactor is identied with a nameplate (Figure 1.5) attached to the
interphase barrier retainer at the front of the contactor. e nameplate informa-
tion includes the Catalog Number, Series Letter, Voltage Rating, Non-enclosed
Current Rating, Interrupting Capacity, Altitude Range, CSA and UL markings.
VACUUM CONTACTOR
3Ø
CET APPAREIL. DES RAYONS X DANGEREUX
READ INSTRUCTIONS BEFORE ENERGIZING
LIRE LES INSTRUCTIONS AVANT D'ALIMENTER
THIS DEVICE.MAY PRODUCE HARMFUL X-RAYS.
CONTACTEUR SOUS VIDE
E102991
MADE IN CANADA
PEUVENT SE PRODUIRE
2500-
PLAGE D'ALTITUDE
ALTITUDE RANGE
POUVOIR DE COUPURE
INTERRUPTING CAPACITY
CAT.
LR12235
IEC60470
V. 50/60 HZ.AMP.
M.
SER.
AMP.
CUS
Figure 1.5 – Contactor Label
Catalog No. Explanation e following catalog number explanation will help identify the contactor and
shall be used when contacting your local Rockwell Automation Sales oce or
the factory for assistance.
A
= 3 pole, electrically held contactor
B
= 3 pole, mechanically latched contactor with electrical and mechanical release
1502 - V 8 D X D A - 1
First
Position
Bulletin
Number
1502
Second
Position
Contactor Type
and Interlock
V
= Vacuum ,
no interlock
VC
= Vacuum ,
Optim ized for
IntelliVAC™
control
Third
Position
Contactor
Size
8
= 800 A
Fourth
Position
Nominal
Line Voltage
D
= 7200 V
Fifth
Position
Fuse Mounting
Provisions
X
= None
Sixth
Position
Coil
Voltage
D
= 110 V D C
(120 V AC)
Seventh
Position
Function
Refer to
Table 1.A
Eighth
Position
Altitude
Code (meters)
1 = 0 – 1000
2 = 1001–2000
3 = 2001–3000
4 = 3001–4000
5 = 4001–5000
E
= 207 V D C
(230 V AC)
D
= 3 pole, electrically held contactor with fast drop-out time
Table 1.A – Vacuum Contactor Function
