28 Rockwell Automation Publication ENET-IN002H-EN-P - August 2017
Chapter 2 Install a 1768 EtherNet/IP Communication Module

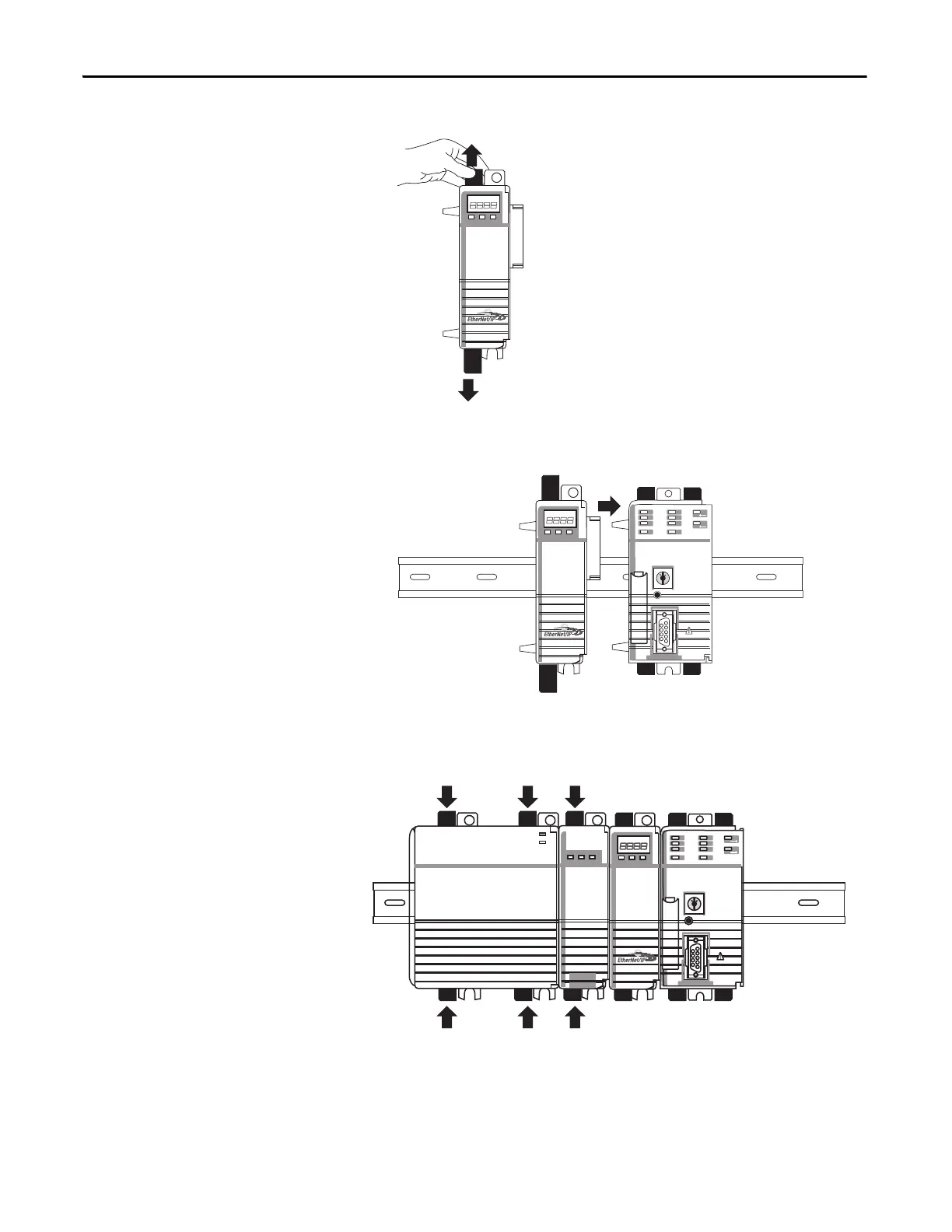

2. Open the DIN rail latches on the module.
3. Align and press the module onto the DIN rail to the left of the controller.
4. Slide the module snugly against the controller.
5. Mount the 1768 power supply and additional 1768 modules to the left of
the controller.
6. Close the DIN rail latches.
In this example, the 1768 EtherNet/IP communication module is installed in
slot 1 and the 1768 CompactLogix controller is installed in slot 0.
31597-M
31599-M
