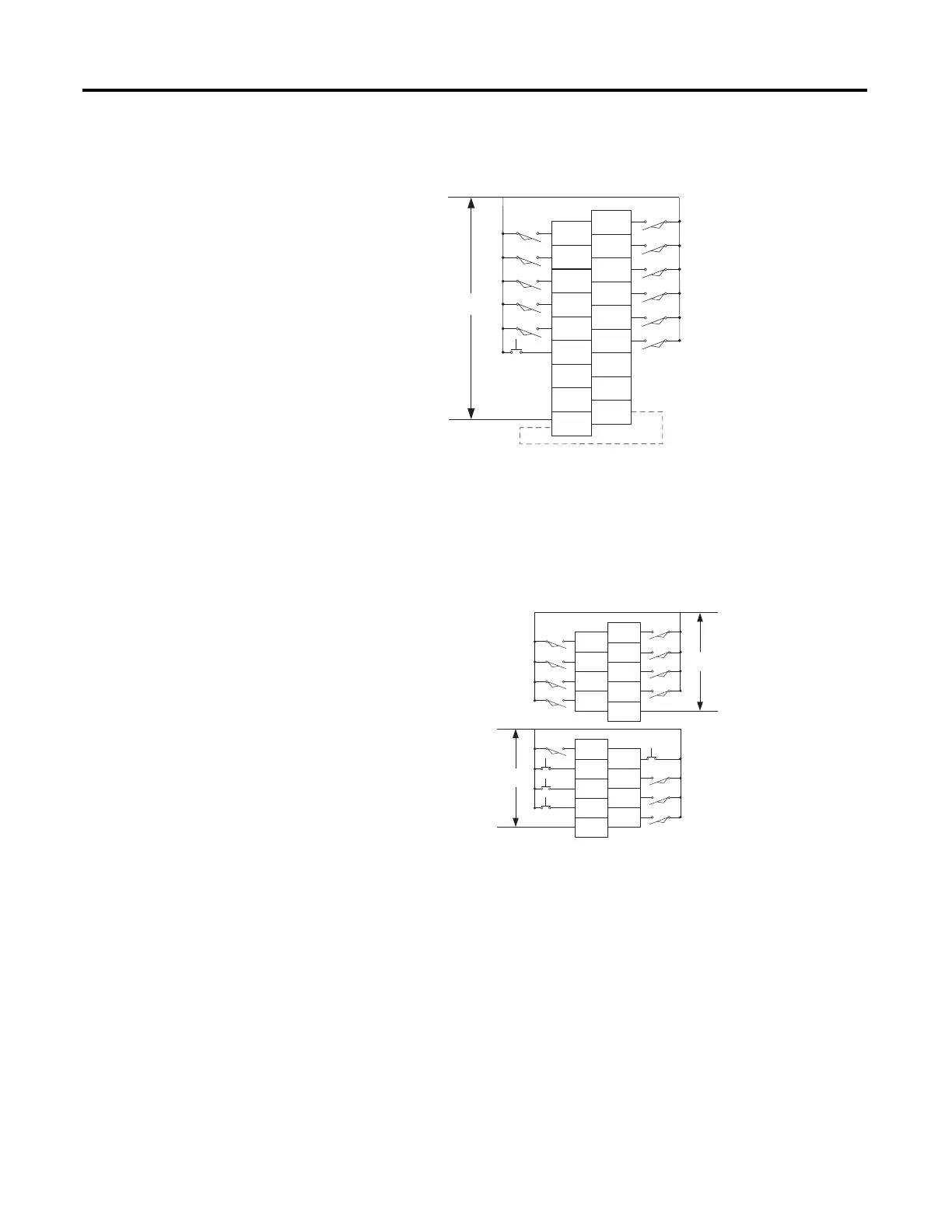

Chapter 2 Module Wiring
1769-IM12
Compact 240V AC input module
1769-IQ16
Compact 24V DC sink/source input module
IN 7
IN 5
IN 3
IN 1
AC
COM
IN 6
IN 4
IN 2
IN 0
L1
L2
200/240V AC
NC
NC
IN 10
IN 8
AC
COM
NC
NC
IN 11
IN 9
Commons are
connected internally.
1769-IM12
Do not use the NC terminals as a connection.
IN 7
IN 5
IN 3
DC
COM 1
IN 6
IN 4
+DC (sinking)
-DC (sourcing)
-DC (sinking)
+DC (sourcing)
+DC (sinking)
-DC (sourcing)
-DC (sinking)
+DC (sourcing)
24V DC
IN 12
IN 14
IN 10
IN 8
IN 15
DC
COM 2
IN 13
IN 11
IN 9
24V DC
IN 1
IN 2
IN 0
1769-IQ16
