14 Rockwell Automation Publication 1492-QS003B-EN-P - October 2019
Chapter 1 Installation

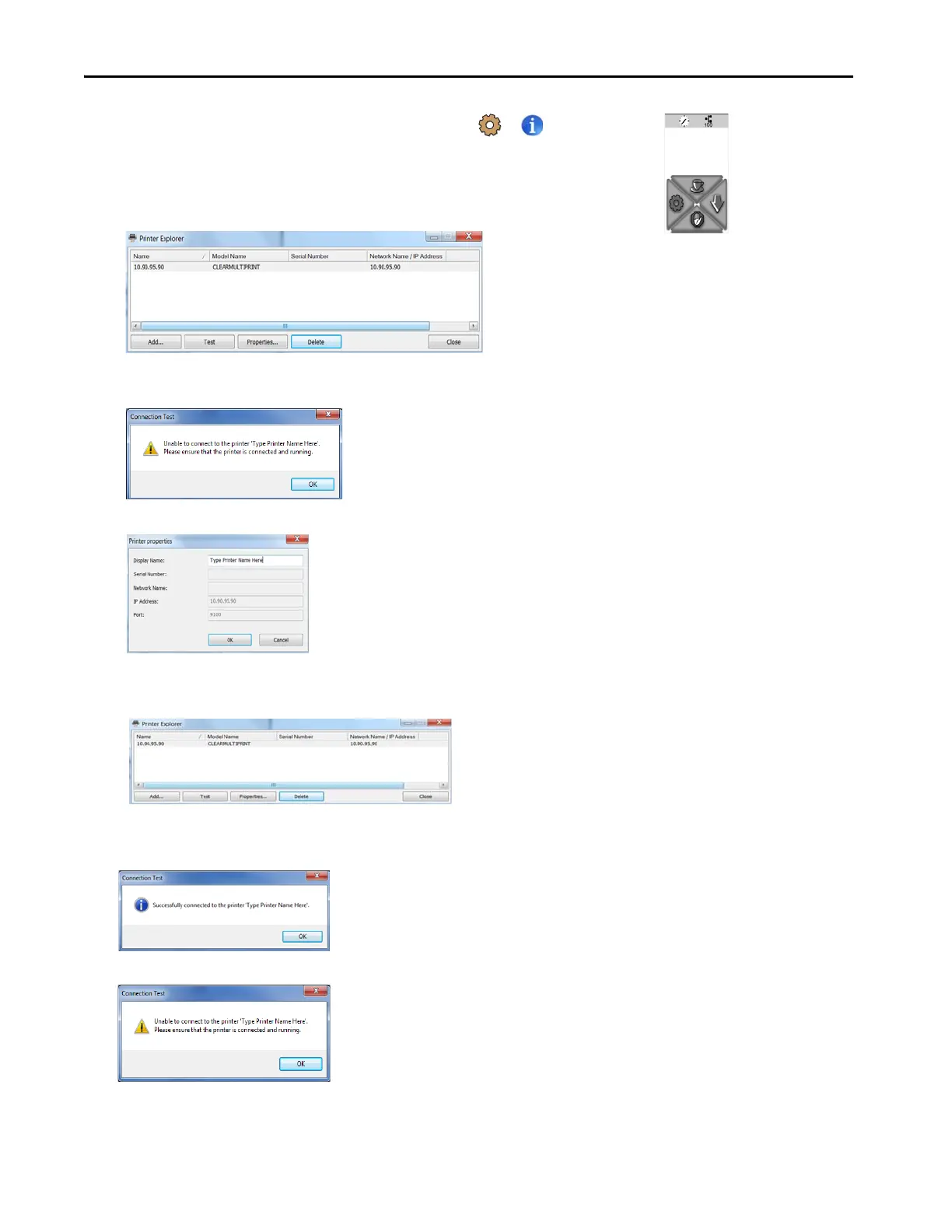

5. To retrieve the IP Address from Printer Display, touch > , scroll through
the display to find the IP Address.
6. Enter the IP Address and the port of the printer.
If the printer is found, it is displayed in the Printer dialog box
The following is displayed if the printer is not found. For example if the printer is turned off or if there is a network
connectivity issue.
7. Click Properties to change the printer name.
8. Enter the printer name in the display name field. Click OK to continue.
The changed name is now displayed in the printer dialog box.
9. To check the connection to the printer, click Test.
If the printer is connected and accessible, the following dialog box appears.
If the printer is not accessible, for example because it is turned off, the following dialog box appears.
