Chapter 7 Maintenance
Clean
,
Change
,
or Replace
the Print Roller
Accumulations of dirt on the print roller can impair
the media transport and the print quality.

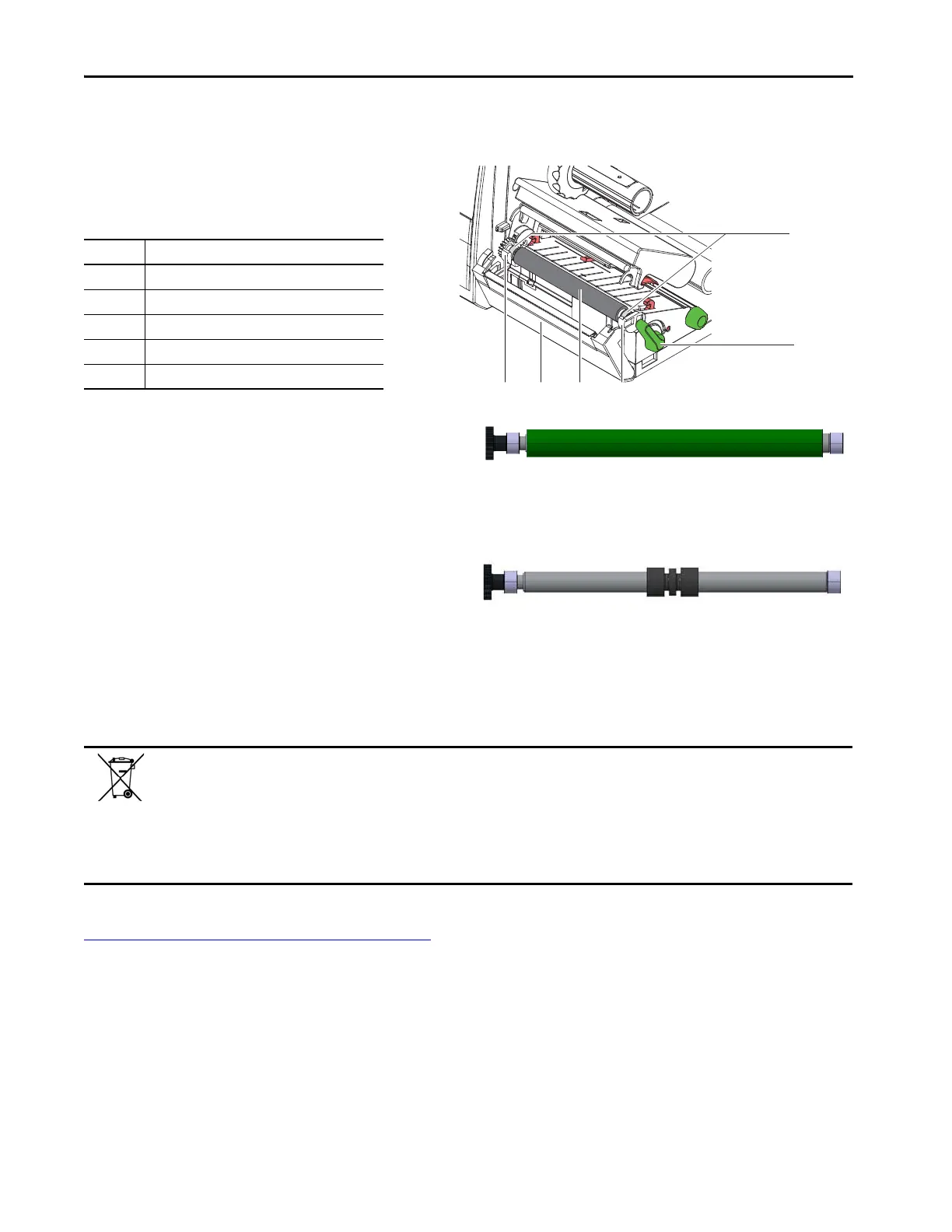

Figure 2 - Clean, Change, or Replace the Print Roller
1. Turn the lever (2) counterclockwise to open the
print head.
2. Remove the material and transfer ribbon from the
pri
nter.
3. Fold down the cover with the tear-off plate.
4. Lift the print roller (4) from its retainers(3).
5. Remove the deposits with the roller and clean with a
sof
t cloth. Replace the roller if it appears damaged.
6. Push the roller with bearings (1) into the retainer (3)
u
ntil they click into place.
7.
F
old up the cover with the tear-off plate.
EEE Yönetmeliðine Uygundur. (In Conformity with the EEE Regulation)
Battery Notice: This product
contains Perchlorate material. Special handling may apply. For more information, go to
http://www.dtsc.ca.gov/hazardouswaste/perchlorate/.
Item Description
1 Roller with bearing
2 Print head lock lever
3 Retainers
4 Print roller
5 Cover
