Turn Printer On

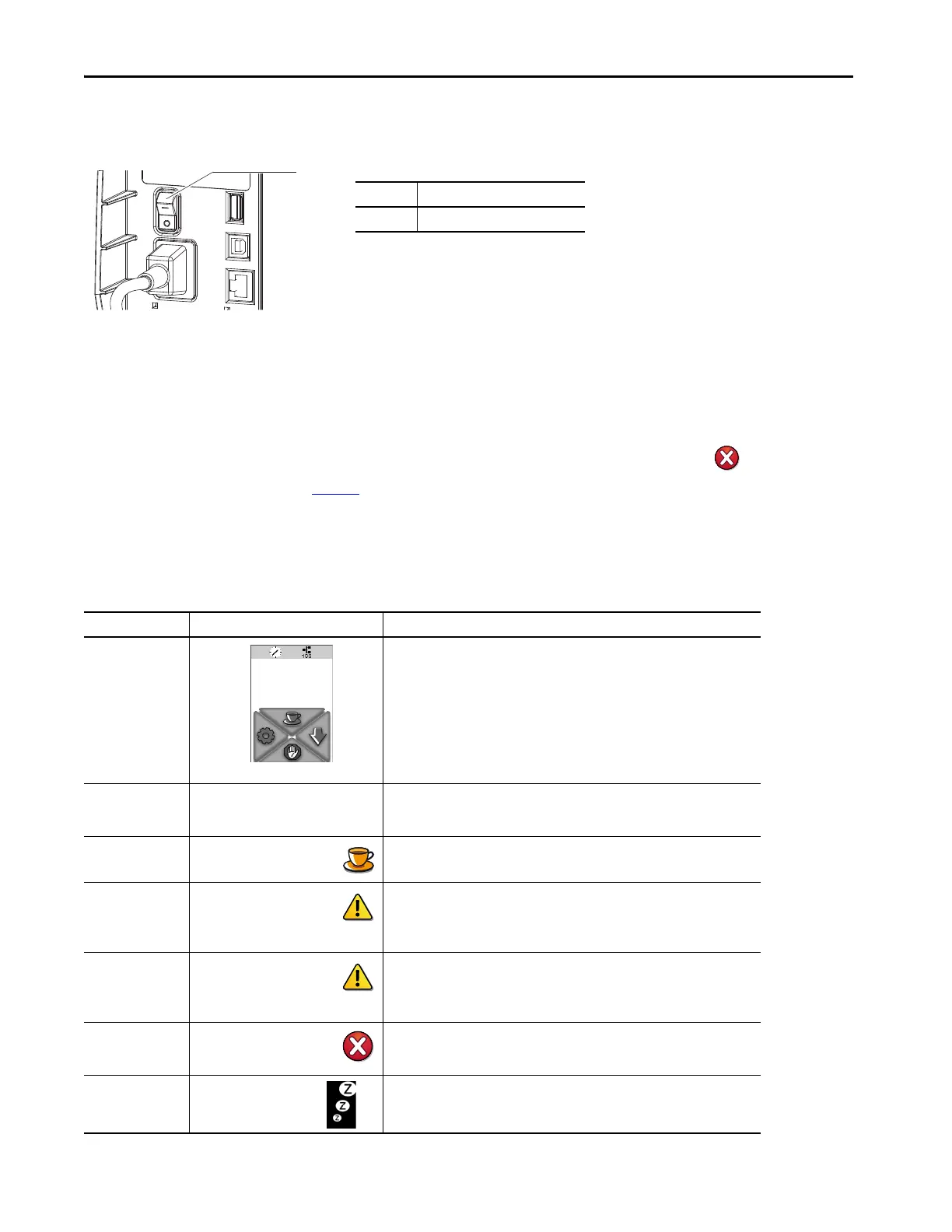

Table 5 - Power Switch
When all connections are made, follow these steps.
1. Switch on the printer at the power switch (1).
2. Then the printer performs a system test.
If successful, the system status Ready displays. If an error occurs during the system test, the symbol Critical Fault
and type of error are displayed. Use Tab l e 6 to troubleshoot the error.
Printer States
Table 6 - Printer States
Item Description
1 Power switch
State Display Description
Ready The printer is in the ready state and can receive data.
Printing Label Printing Label
and the number of the printed labels in
the print job.
The printer is processing an active print job. Data can be transmitted for a new print
job, the new print job starts when the previous one has finished.
Pause Pause The operator interrupts the printing process.
Correctable Error The Error Type and number of
labels still to be printed. Display
updates red.
An error has occurred that the operator can correct without interrupting the print job.
The print job can be continued after corrected.
Irrecoverable Error The Error Type and number of
labels still to be printed. Display
updates red.
An error has occurred that the operator cannot correct without interrupting the print
job.
Critical Error Critical Fault
The Error Type.
Display updates red.
An error that occurs during a system test. Switch off the printer and then on again at
the power switch. Call Service if the fault occurs persistently.
Power Save Mode If the printer is not use for a lengthy period, it automatically switches to power save
mode. To exit power save mode, press the touch screen display.
