24 Rockwell Automation Publication 1492-QS003B-EN-P - October 2019
Chapter 5 Calibration
Adjust
the Print Position/Calibration

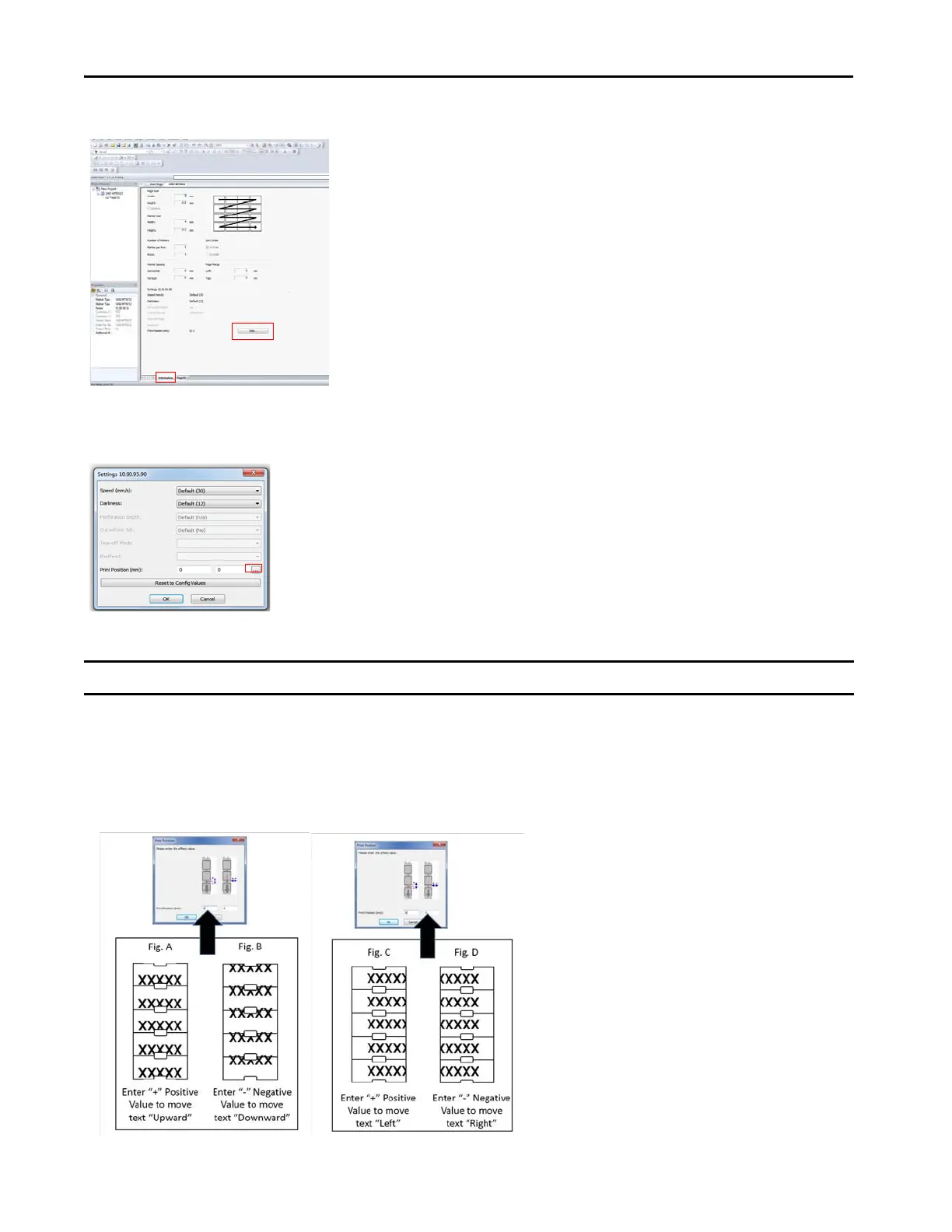

1. To view the calibration settings, click the Information tab at the bottom of the screen.
2. Click Edit.
3.
Click the ellipsis.
4. Visually check the
printed
tag and see where the
"Xs"
are in
relationship
to the
tag.
– If your "Xs" are shifted down on the tag, see Figure A.
– If your "Xs" are shifted up on the tag, see Figure B.
– If your "Xs" are shifted right on the tag, see Figure C.
– If your "Xs" are shifted left on the tag, see Figure D.
IMPORTANT The print position measurements are shown in millimeters, and the values correspond to actual position on the label.
