8 Rockwell Automation Publication 1492-QS003B-EN-P - October 2019
Chapter 1 Installation
Table 3 - What’s Included

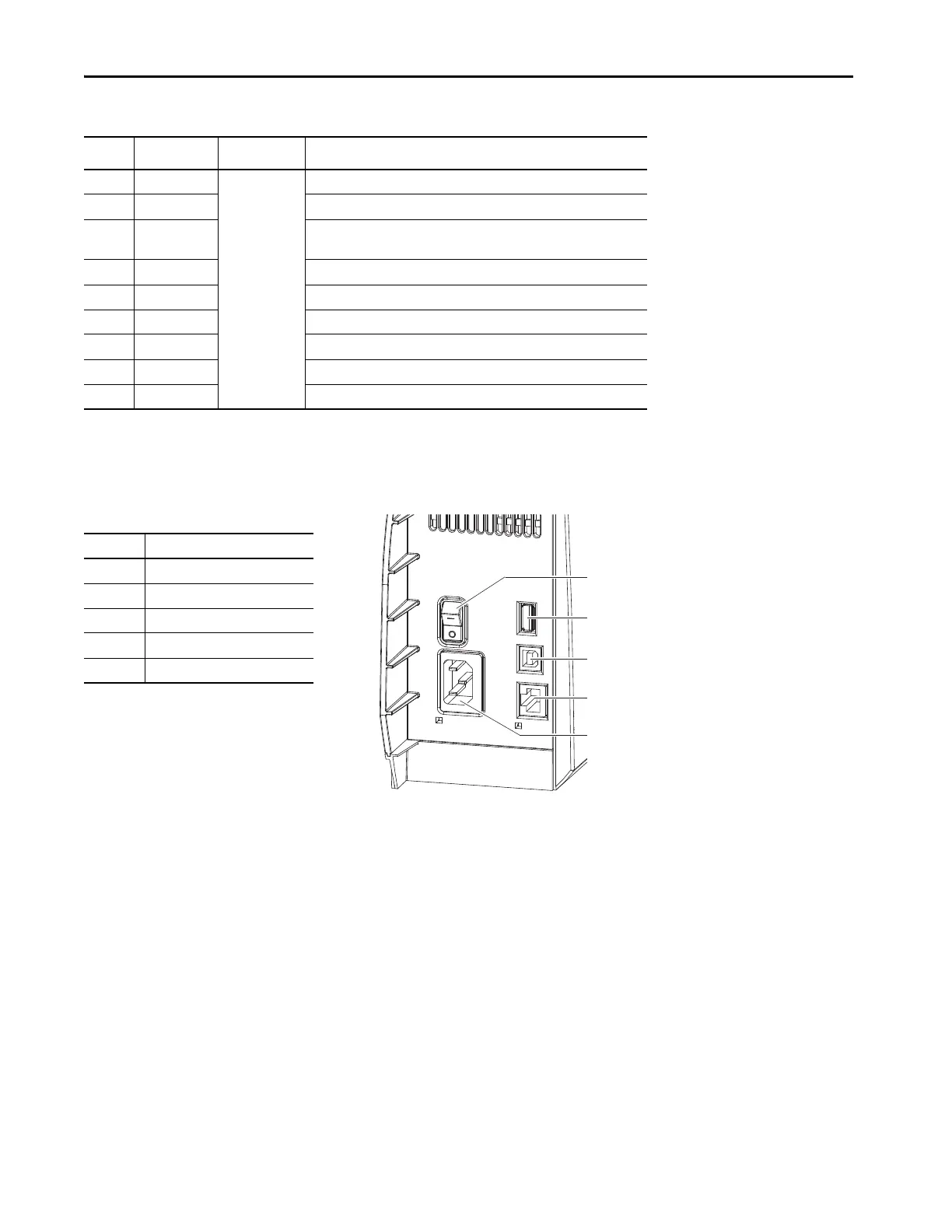

Connect the Device
Table 4 - Connections
Connect to the Power Supply
The printer is equipped with a wide area
power unit for a supply voltage of
100...240V.
1. Check that the device is switched off.
2. Plug the power cable into the power connection jack (5).
3. Plug the power cable into a grounded socket.
Quantity Cat. No. Description
1 1492-PRINTCMP ClearMultiprint Marking System
2 Power Cables (North American and European)
1 25 mm (0.98 in.) Ink Ribbon for Terminal Block Tags
(Cat. No. 1492-PRIBTB)
1 110 mm (4.33 in.) Ink Ribbon (Cat. No.1492-PRIBLAB)
1 Cardboard Core
1 Black Grooved Roller for Terminal Block Tags (Cat. No.1492-PROLLTB)
1 Green Print Roller for Label Printing (Cat. No. 1492-PROLLLAB)
1 DVD with ClearTools™ Software and Documentation
1 USB Cable
Item Description
1 Power switch
2 USB master ports
3 USB high-speed slave port
4 Ethernet 10/100 Base-T
5 Power connection jack
