5-22 Install and Replace Components

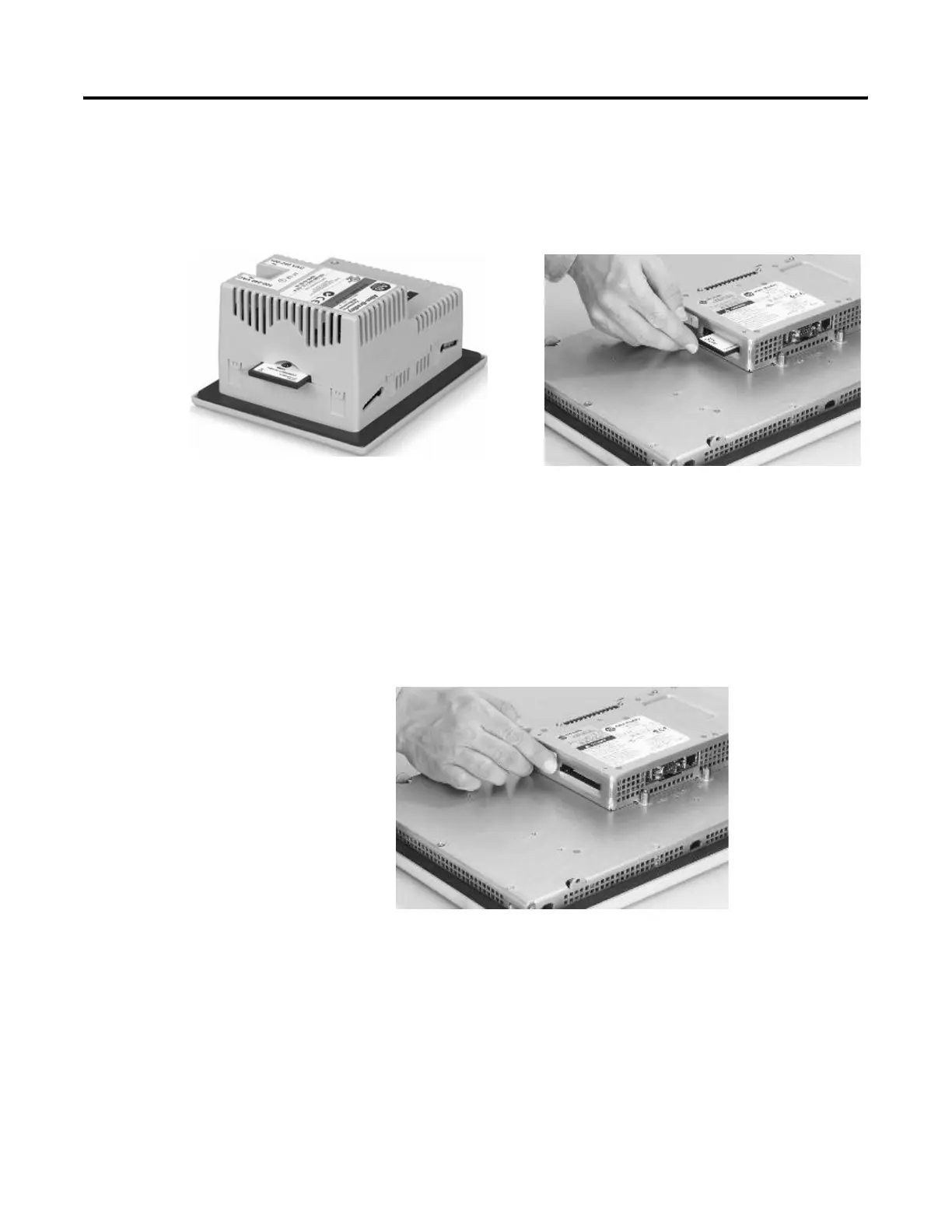

Insert a Compact Flash Card
1. Insert the card in the compact flash card slot of the terminal until
firmly seated.
Remove a Compact Flash Card
1. Press the Eject button on the logic module. When the button
pops out, press it again to release the card. The location of the
button varies depending on the series of the logic module.
The PanelView Plus 400 and 600 terminals do not have an eject
button. Simply secure edge of card with fingers and pull card
away from slot.
400 and 600 Terminals
700 - 1500 Terminals
