Product Dimensions

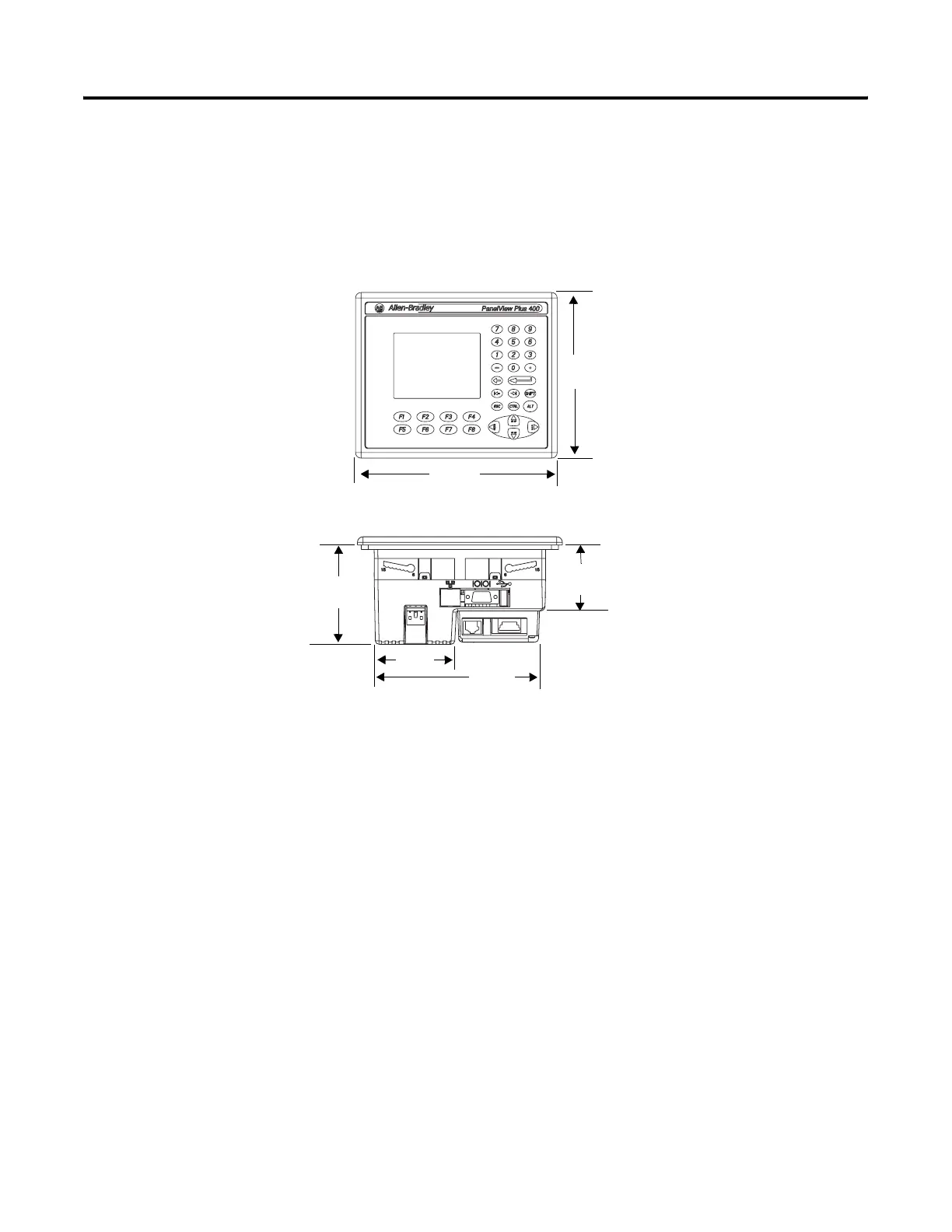

Product dimensions for each terminal are in mm (in).
PanelView Plus 400
152
(6.0)
185 (7.28)
60
(2.35)
90
3.54)
71 (2.81)
154 (6.08)
