Publication 2711P-UM001D-EN-P - September 2005
Installation 2-9

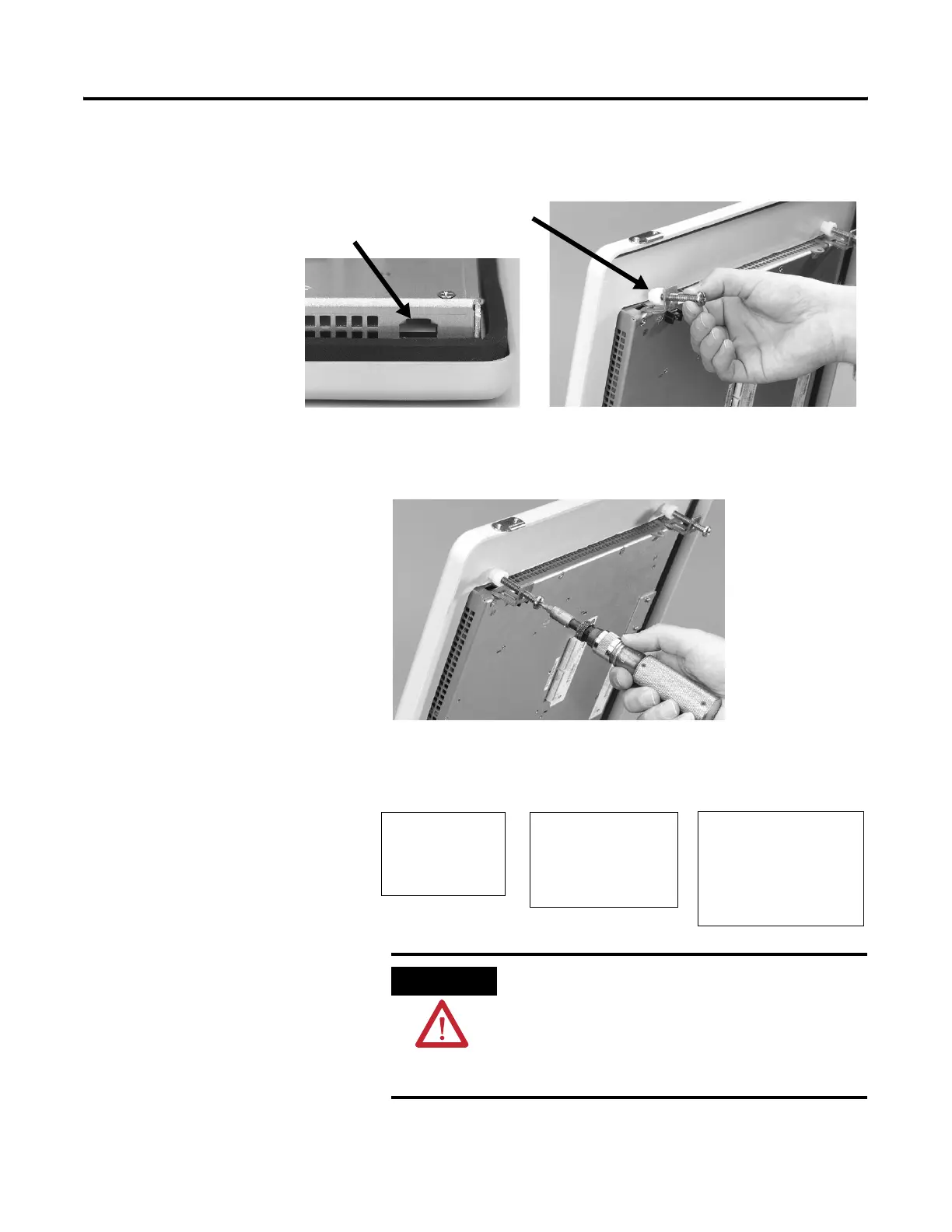

5. Slide the ends of the mounting clips into the slots on the
terminal.
6. Tighten the mounting clip screws by hand until the gasket seal
contacts the mounting surface uniformly.
7. Tighten the mounting clips screws to a torque of 0.90 to 1.1 Nm
(8 to 10 in-lb) using the specified sequence. Do not over-tighten.
Mounting Clip Slot
Mounting Clip
ATTENTION
Tighten the mounting clips to the specified
torque to provide a proper seal and to prevent
damage to the product. Allen-Bradley assumes
no responsibility for water or chemical damage
to the product or other equipment within the
enclosure because of improper installation.
1
2
3
4
5
6
7
8
Torque Sequence
for 6 Clips
246
513
Torque Sequence
for 4 Clips
14
3
2
Torque Sequence
for 8 Clips
To Next Page
