Configuration Mode 4-5
Run an Application
To run the currently loaded application, select the Run Application
button on the main Configuration Mode screen. An application must
be loaded, before you can run it. Log files generated by the
application may be deleted if this option was selected on the main
screen or enabled as a Startup Option under Terminal Settings.
Application Settings
From the Application Settings screen, you can show device shortcuts
defined for the loaded .MER application. For example, your .MER
application might have SLC defined as a device shortcut name for the
SLC 5/05. Device shortcuts are read-only and cannot be edited.
Terminal Settings
From Terminal Settings, you can open screens to configure and
modify non-application settings for the terminal.

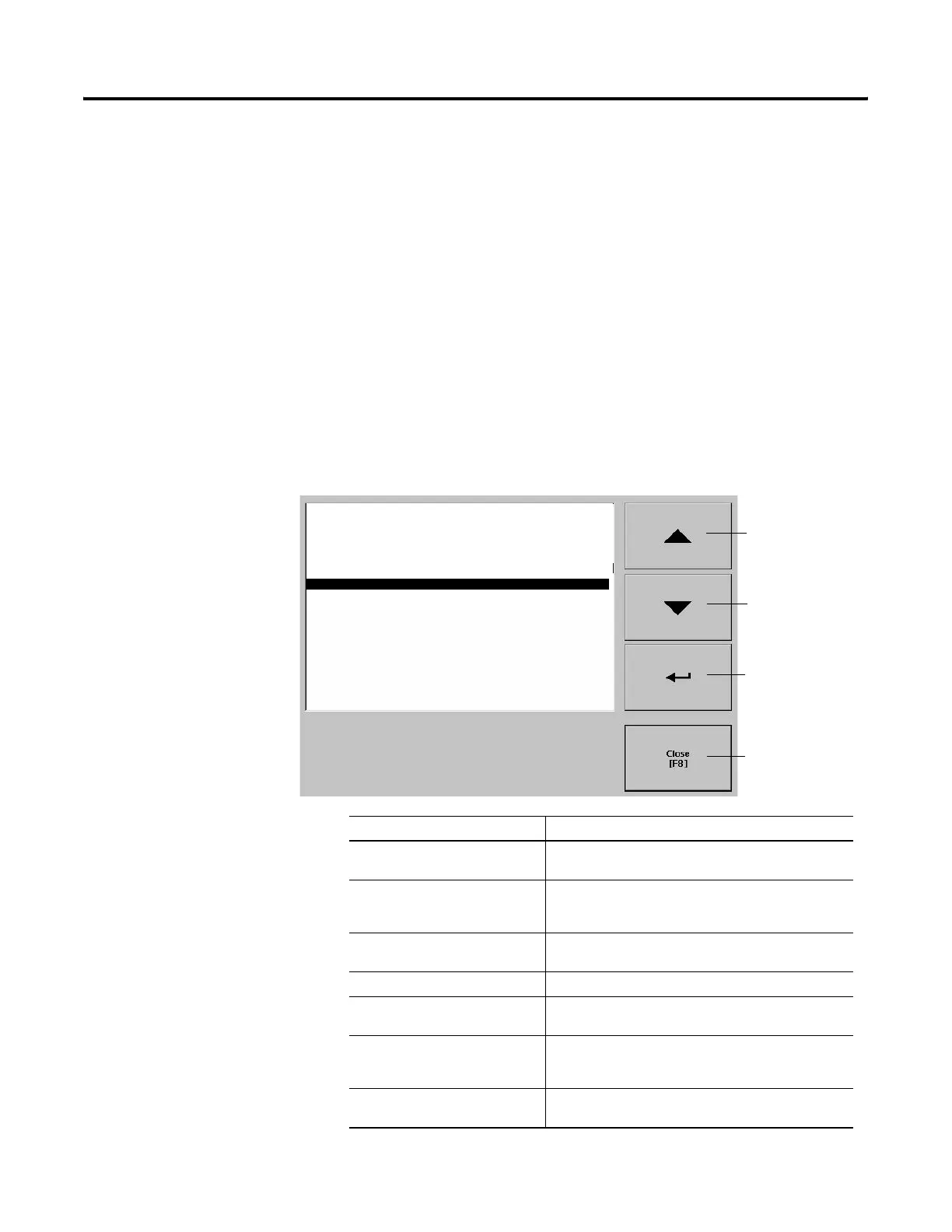

Moves highlight up
Moves highlight down
Selects highlighted
item and opens screen
Returns to previous
screen.
• On a touch terminal, tap the
button.
• On a keypad terminal, press
the corresponding key on the
keypad
Diagnostics Setup
Display
File Management
Font Linking
Input Devices
Networks and Communications
Print Setup
Startup Options
System Event Log
System Information
Time/Date/Regional Settings
Terminal Setting Description
Diagnostic Forwards diagnostic messages form a remote log
destination to a computer running diagnostics.
Display Shows the temperature of the display, sets the intensity of
the backlight, contrast of grayscale displays, and
enables/disables the screen saver.
File Management Copies or deletes application files or font files from a
storage location.
Font Linking Links a font file to a base font loaded on the terminal.
Input Devices Configures settings for the keypad, touch screen, or
attached keyboard and mouse.
Networks and Communications Configures network connections and communication
settings specific to the application (DHPlus, DH485,
Remote I/O, ControlNet, DeviceNet, Serial).
Print Setup Configures settings for printing displays, alarm messages,
and diagnostics messages generated by the application.
