Publication 2711P-UM001D-EN-P - September 2005
6-10 Terminal Connections
Ethernet Connections
The base configured unit of the 700 - 1500 terminals and the network
based unit of the 400 and 600 terminals have an Ethernet port that
supports:
• EtherNet/IP communications
• Third party Ethernet communications
• Network connections
• Application uploads/downloads
• Printing

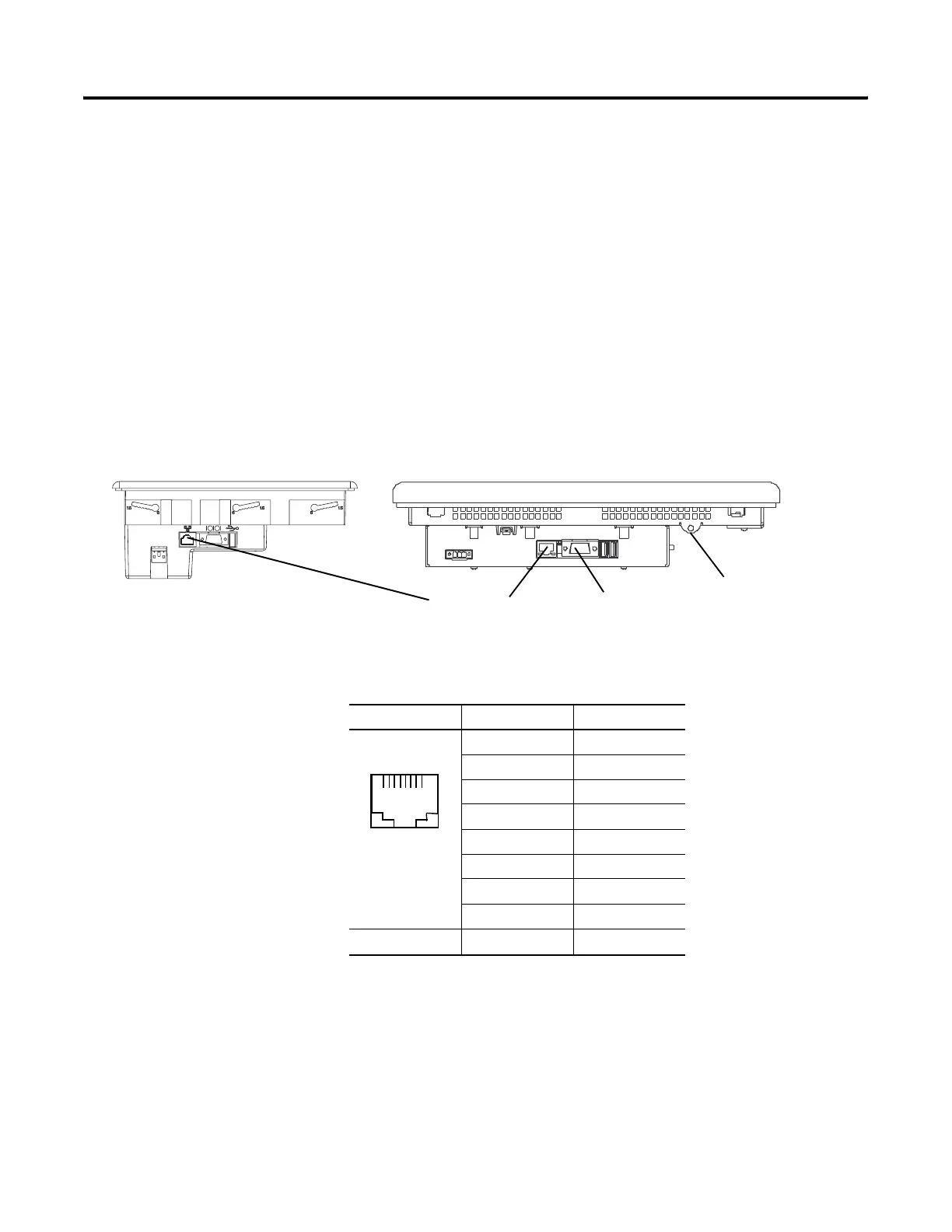

Ethernet Connector
The base configured unit of the terminals has an RJ45,
10/100Base-T connector for EtherNet/IP or Ethernet TCP/IP network
communications.
The table shows the connector pinouts.
Use point-to-point, 10/100Base-T cables with cross over pin-outs
(such as 2711P-CBL-EX04) when connecting the Ethernet port on the
terminal directly to a logic controller’s Ethernet port or a computer
10/100Base-T port. Use standard Ethernet cables when connecting to
a switch or hub.
Ethernet Port
Use RS-232 serial port to
transfer applications or print.
Insert plastic tie wrap in
hole and use as strain relief
for all attached cables.
Pin Pin Pin Name
Looking into RJ45
Connector
1TD+
2TD-
3RD+
4NC
5NC
6RD-
7NC
8NC
Shield Connection Chassis Gnd
1
