Publication 2711P-UM001D-EN-P - September 2005
Install and Replace Components 5-21

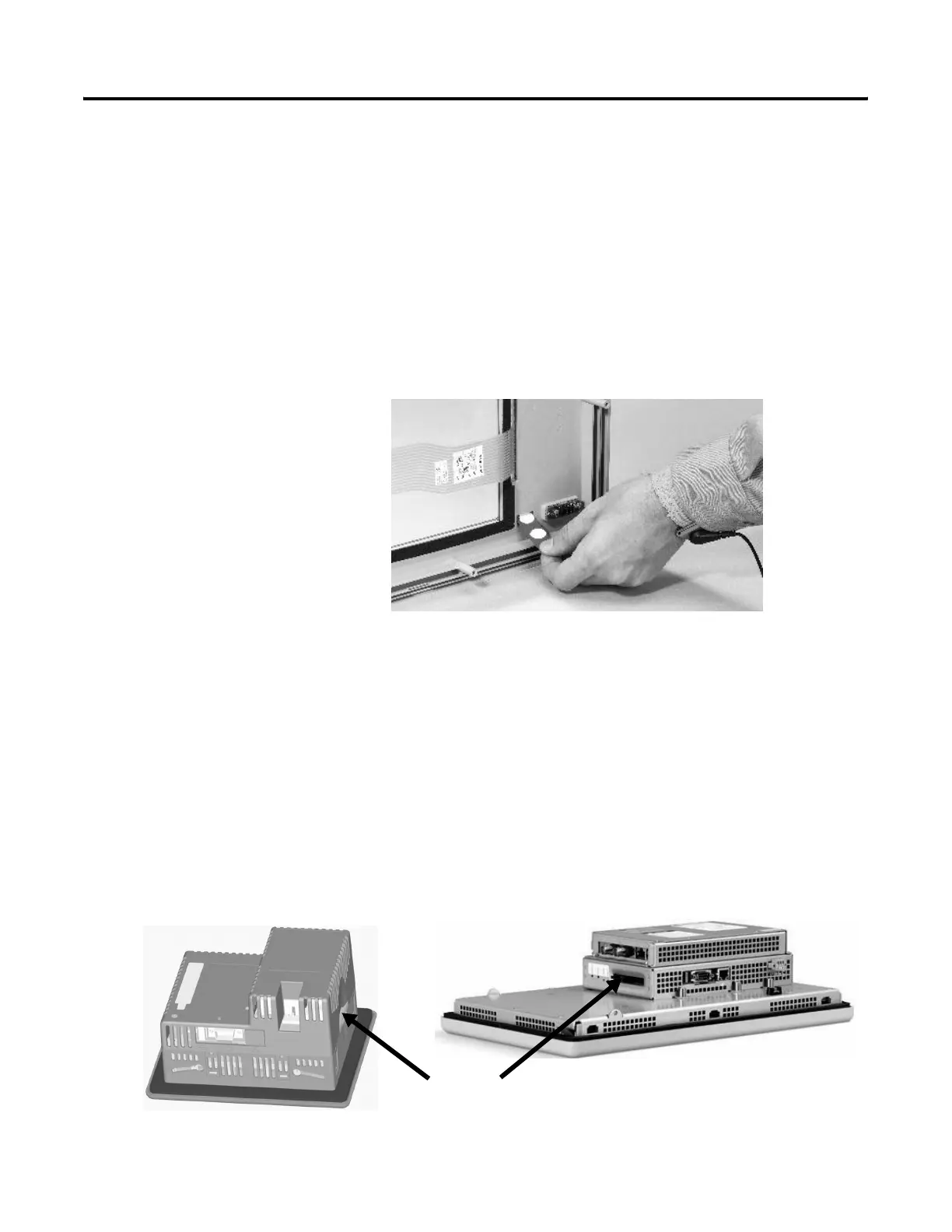

Replace the Keypad Legend Inserts on the 700-1500 Terminals
The F1-Fxx and K1-Kxx legend inserts on the PanelView Plus 700 -
1500 terminals are accessible when the display module bezel is
removed.
To replace the F1-Fxx or K1-Kxx function key legends:
1. Remove power from the terminal.
2. Remove the display module bezel.
3. Pull the legend inserts out from the slots on the bezel.
4. Slide the new legend strips into the same slots until only the end
tab is visible.
5. Replace the display module bezel.
Use an External Compact
Flash Card
All of the terminals have a compact flash card slot which supports
Type I compact flash cards. These cards are available in different
memory sizes.
The orientation of the card slot on the 700-1500 terminals varies
depending on the series of the logic module.
Compact Flash Card Slot
