Publication 2711P-UM001D-EN-P - September 2005
1-8 Overview

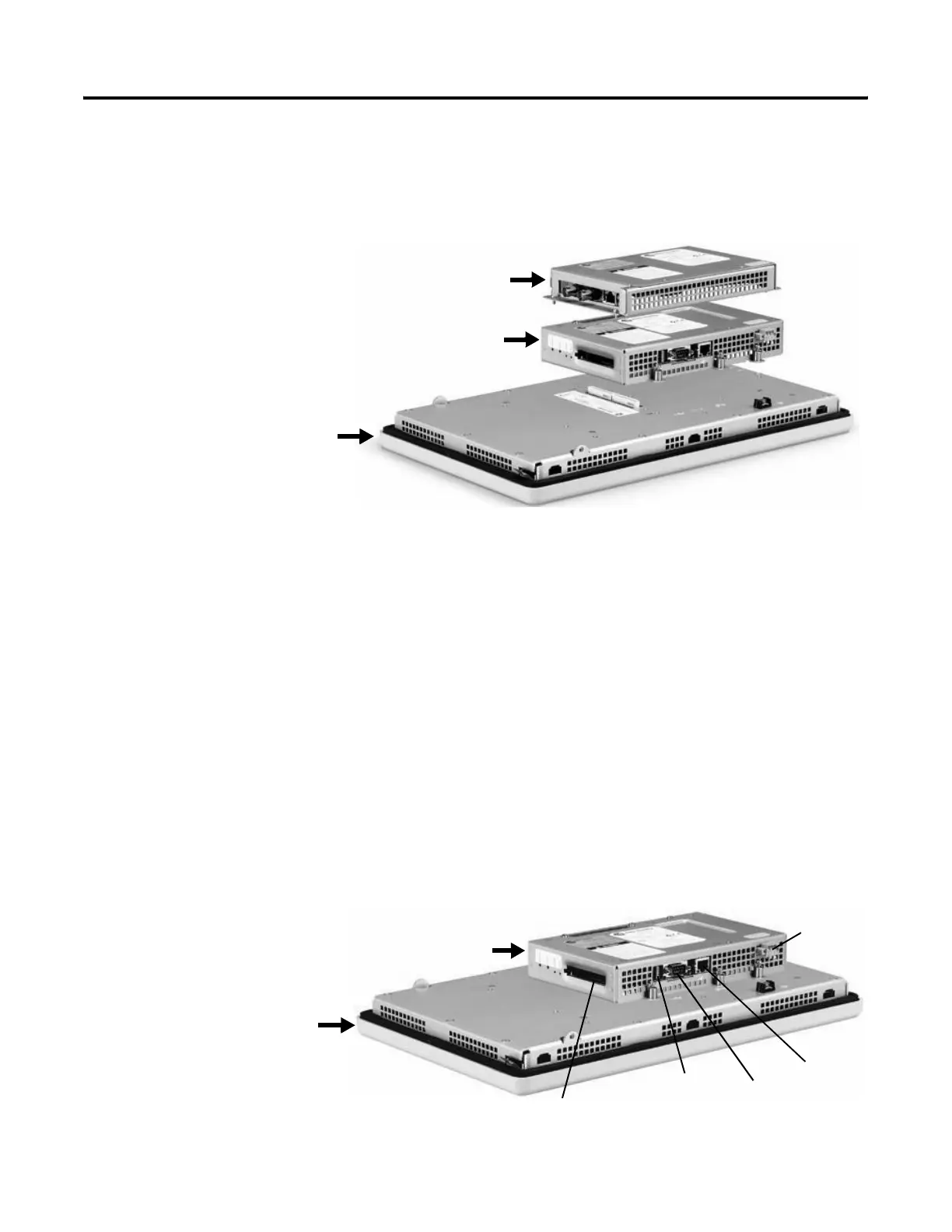

Modular Components
The terminals use modular components allowing for flexible
configuration, installation, and upgrades. Items can be ordered as
separate components or factory assembled per your configuration.
Base Configured Unit
The base configured unit of the terminal consists of:
• Display module (700, 1000, 1250, 1500) with keypad, touch or
keypad & touch input
• Logic module
The logic module contains:
• 24V dc input (18 to 32V dc)
• SDRAM and flash memory (various sizes)
• 10/100BaseT Ethernet port
• Serial RS-232 port for file transfers, printing and logic controller
communications
• 2 USB ports for attaching mouse, keyboard or printer
• Compact flash card slot for Type I compact flash cards
• Battery-backed real-time clock
Communication Module
Logic Module
Display Module
DC Input
Ethernet Port
Serial Port
Compact Flash Card Slot
USB Ports
Logic Module
Display Module
