Publication 2711P-UM001D-EN-P - September 2005
Installation 2-7

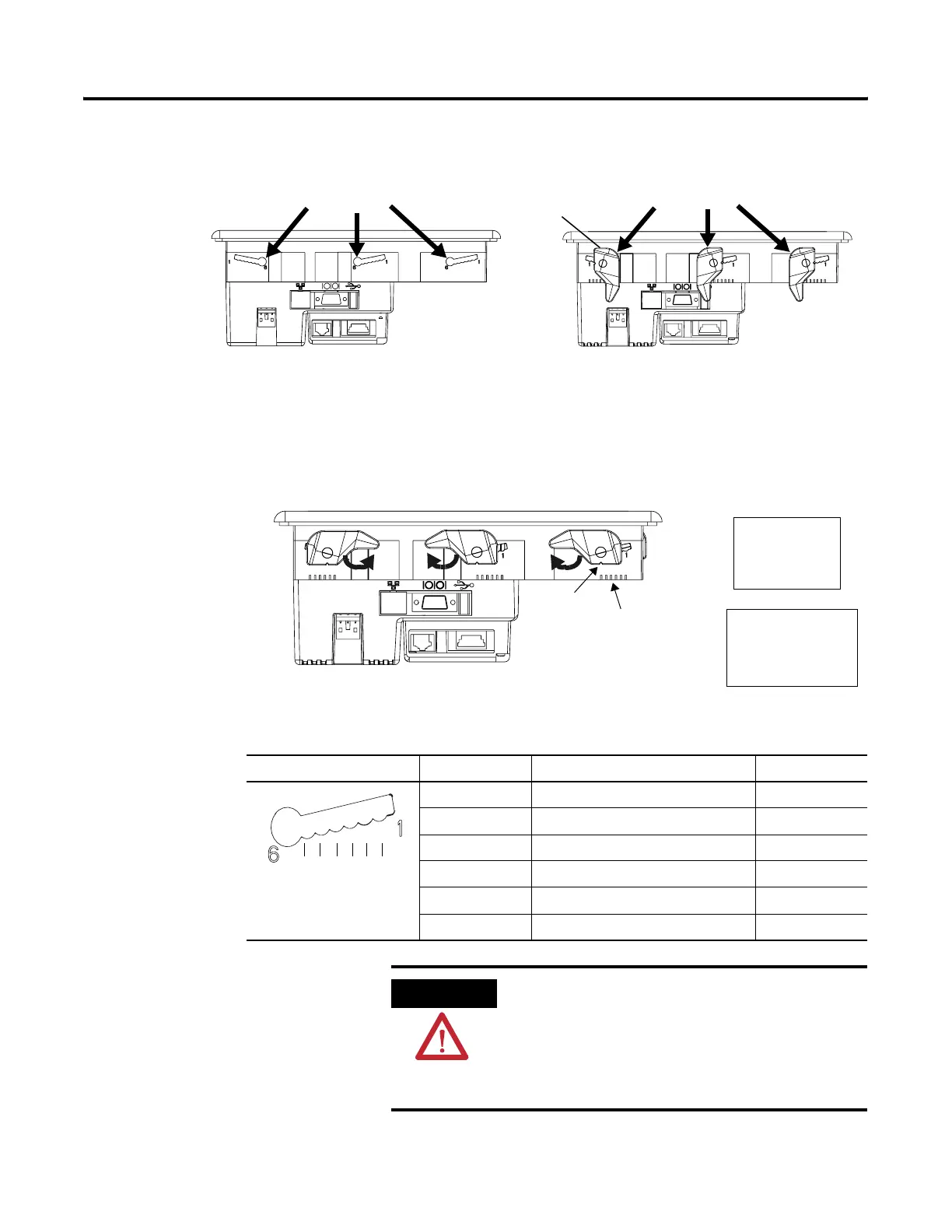

Slide each lever until flat side of lever touches the surface of the
panel.
7. When all levers are in place, slide each lever an additional notch
or two until you hear a click.
8. Rotate each lever in direction indicated until it is in the final
latch position.
Follow the latching sequence for the optimum terminal fit.
Use this table as a guide to provide an adequate gasket seal
between the terminal and the panel.
Mounting Slots
Mounting Levers
Flat Side of Lever
Notch
61
Alignment Marks
Rotate lever until notch in
lever aligns with proper
alignment mark on terminal.
6 Levers
246
513
14
3
2
4 Levers
Lever Position Panel Thickness Range Typical Gauge
1 0.15…2.01 mm (0.060…0.079 in) 16
2 2.03…2.64 mm (0.08…0.104 in) 14
3 2.67…3.15 mm (0.105…0.124 in) 12
4 3.17…3.66 mm (0.125…0.144 in) 10
5 3.68…4.16 mm (0.145…0.164 in) 8/9
6 4.19…4.75 mm (0.165…0.187 in) 7
Terminal Markings
or Alignment
1
2
3
4
5
6
ATTENTION
Follow instructions above to provide a proper
seal and to prevent potential damage to the
product. Allen-Bradley assumes no
responsibility for water or chemical damage to
the terminal or other equipment within the
enclosure because of improper installation.
