Connect Power 3-3
Remove and Install the Terminal Block for 400 and 600 Terminals
Remove and Install the Terminal Block for 700 - 1500 Terminals
PanelView Plus 700 - 1500 terminals operate only on DC power.
• Series A-D logic modules use a 3-position terminal block.
• Series E or later logic modules use a 2-position terminal block.
ATTENTION
AC and DC terminal blocks are keyed and marked
differently so be sure to follow markings. Do not
force terminal blocks into connectors to prevent
potential damage to terminal.
1. Insert tip of small,
flat-blade, screw driver into
terminal block access slot.
2. Gently pry terminal block
away from terminal to release
locking mechanism
1. Press terminal block base in
first with block leaning outward.
2. Gently push top of terminal block back
to vertical position to snap in locking tab.

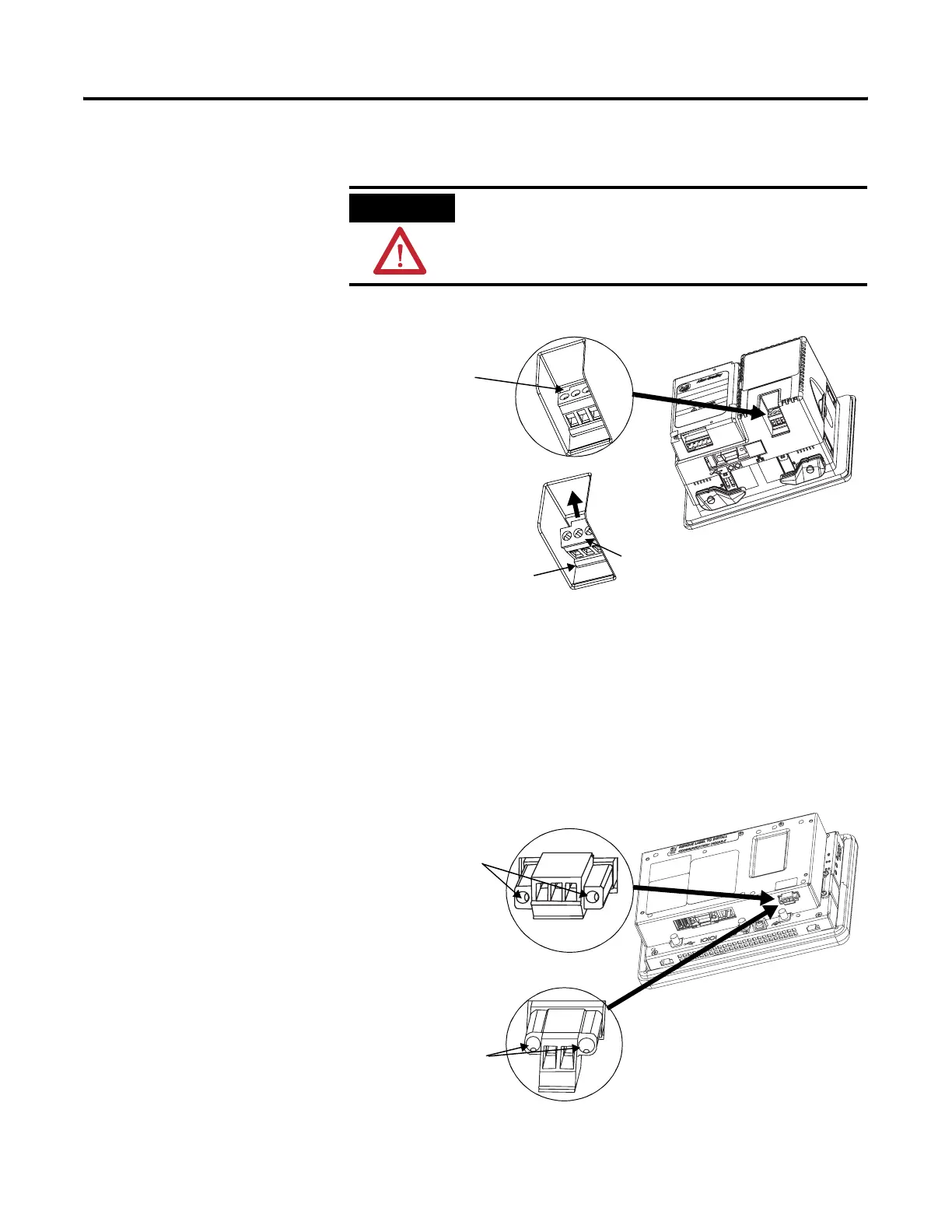

To remove terminal block:
To install terminal block:
1. Loosen the two screws
that secure the terminal
block.
2. Gently pull the terminal
block away from the
connector.
1. Reattach the terminal block to
the connector until seated.
2. Tighten the two screws that
secure the terminal block
to the connector.
To remove terminal block:
To install terminal block:
3-Position Terminal Block
2-Position Terminal Block
