Publication 2711P-UM001D-EN-P - September 2005
3-8 Connect Power

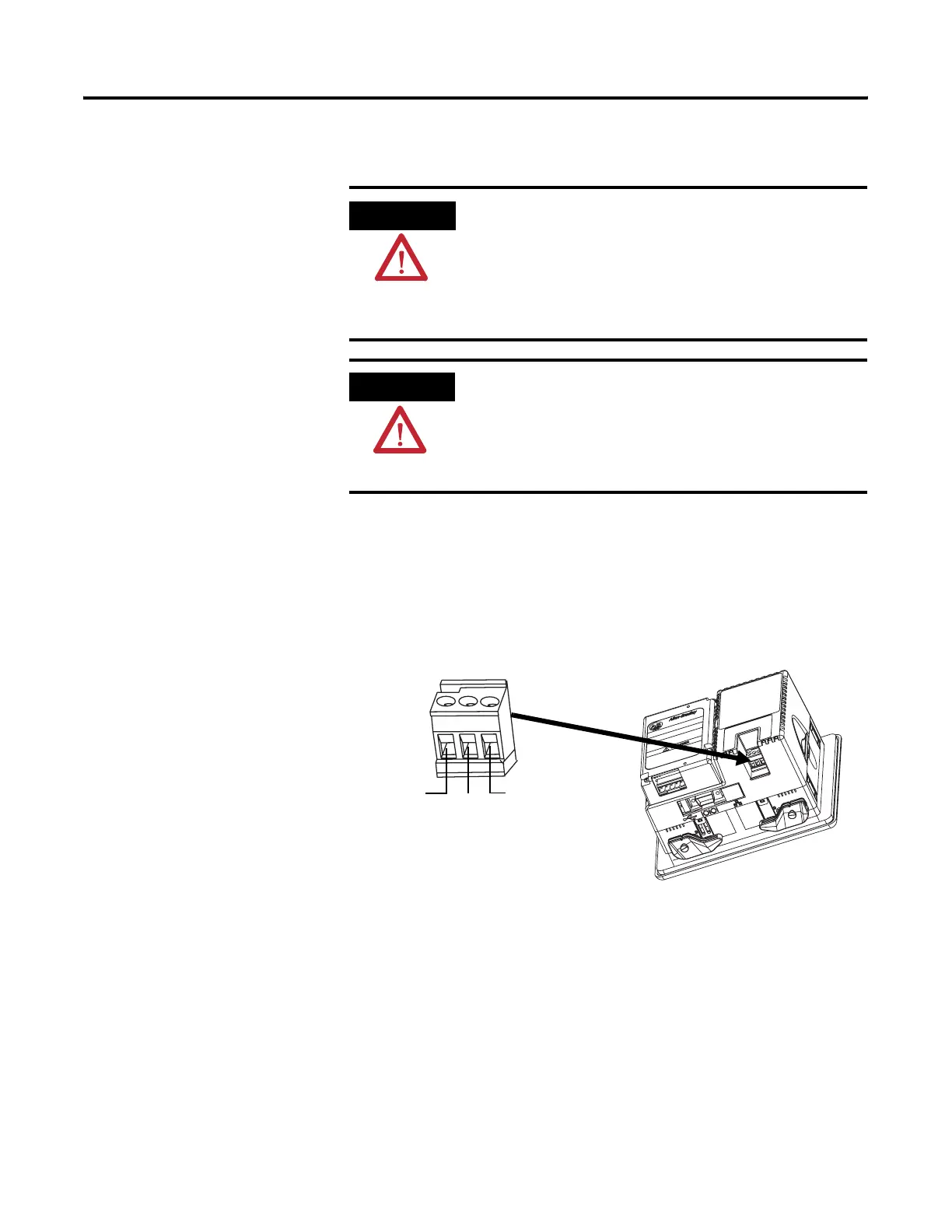

Connect AC power
1. Disconnect power to the terminal.
2. Secure the AC power wires to the terminal block screws.
3. Secure the Protective Earth ground wire to the Protective Earth
ground screw on the input terminal block.
4. Apply power to the terminal.
WARNING
Explosion Hazard - Do not connect or disconnect
equipment while circuit is live unless area is known
to be non-hazardous.
Disconnect all power before installing or replacing
components. Failure to disconnect power may result
in electrical shock and/or damage to the terminal.
ATTENTION
Improper wiring of the power terminals may result in
voltage at the communication connector shells.
Do not apply power to the terminal until all wiring
connections have been made. Failure to do so may
result in electrical shock.
L1
L2/N
Protective Earth Ground
To Next Page
