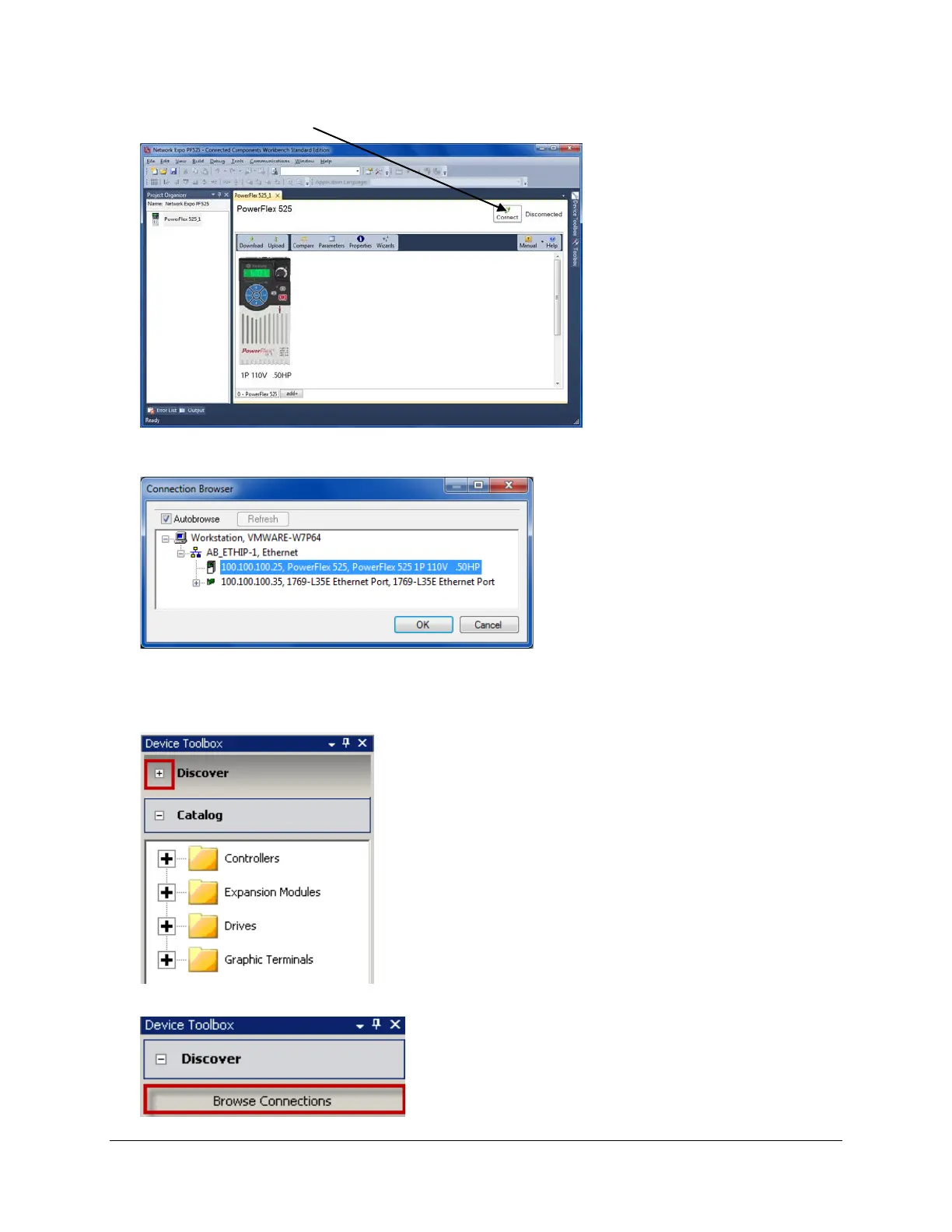

4. Select the Connect button and using the RS LInx Ethernet/IP driver that appears and find the PF525 Drive, Select it and
acknowledge the connection. ( See step 5)
5. The lab’s preconfigured RSLinx driver will appear. Click on the [+] to expand AB_ETHIP-1, Ethernet, click/highlight the
100.100.100.25, PowerFlex 525 1P 110V .50HP device.
6. Jump to Step 10) … Step 7 through 10 show how to do a direct connect to the drive when a parameter file has not yet been
created.
7. Click the [+] next to the Discover within the Device Toolbox.
8. Click the Browse Connections button to launch the RSWho connection browser.
Page 24 of 64
