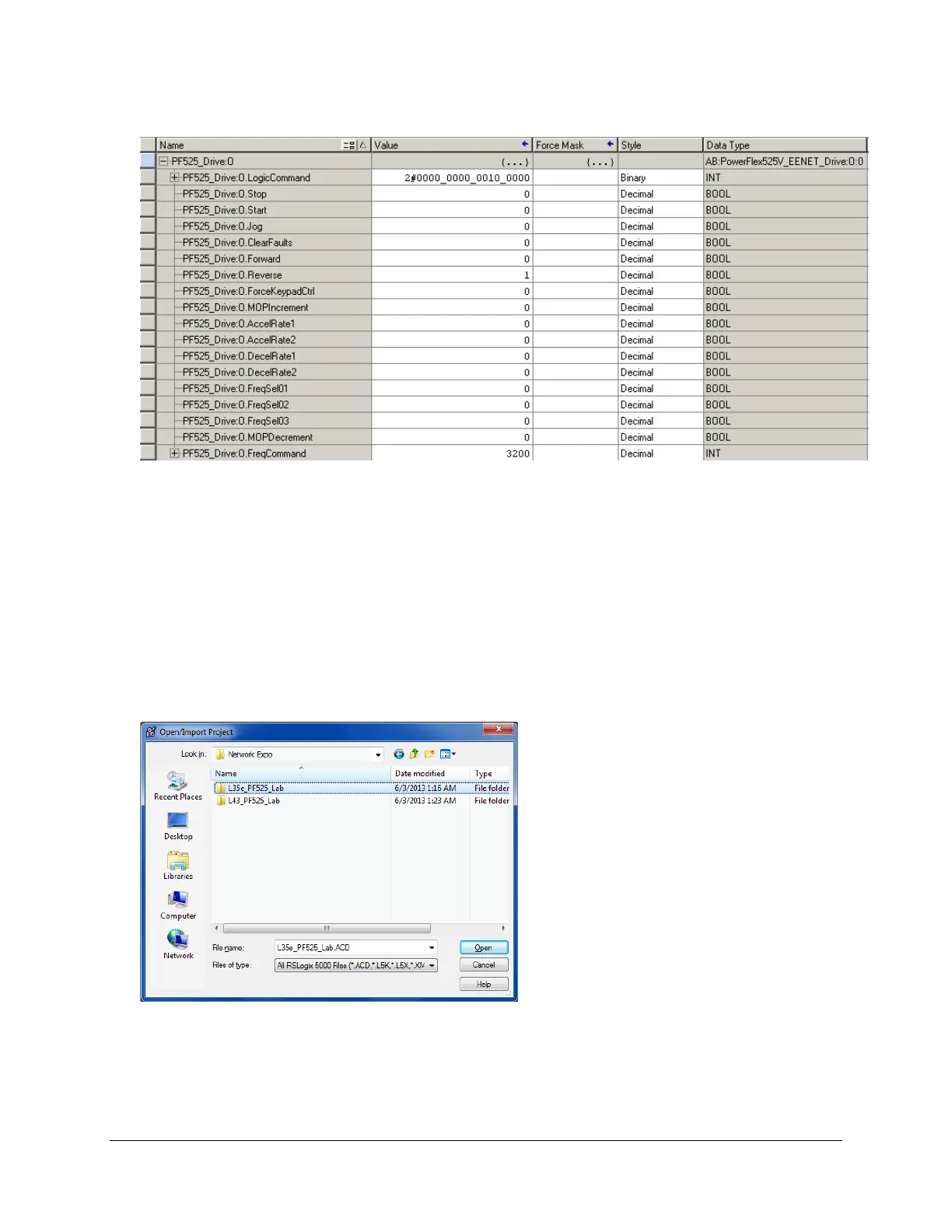

18. View the output tags.
Now expand the PF525_Drive:O output to view the output tag names.
Descriptive tag names have been created for the configured I/O. The Logic Command bits (BOOLs) are clearly defined as
well as the Reference. Note that the proper data types are used for every tag.
Close the Controller Tags window by clicking the lower [X] button in the upper-right corner of the screen.
19. Select the either the L35ePF525_Lab.ACD or L43PF525_Lab.ACD file and Click Open. You must open the folder which
represents the demo in front of you to access the correct file. Ask for help if you need assistance.
*NOTE* Lab files are located within Libraries>Network Expo>L35ePF525_Lab or Libraries>Network
Expo>L43ePF525_Lab folders depending on which demo you are using.
