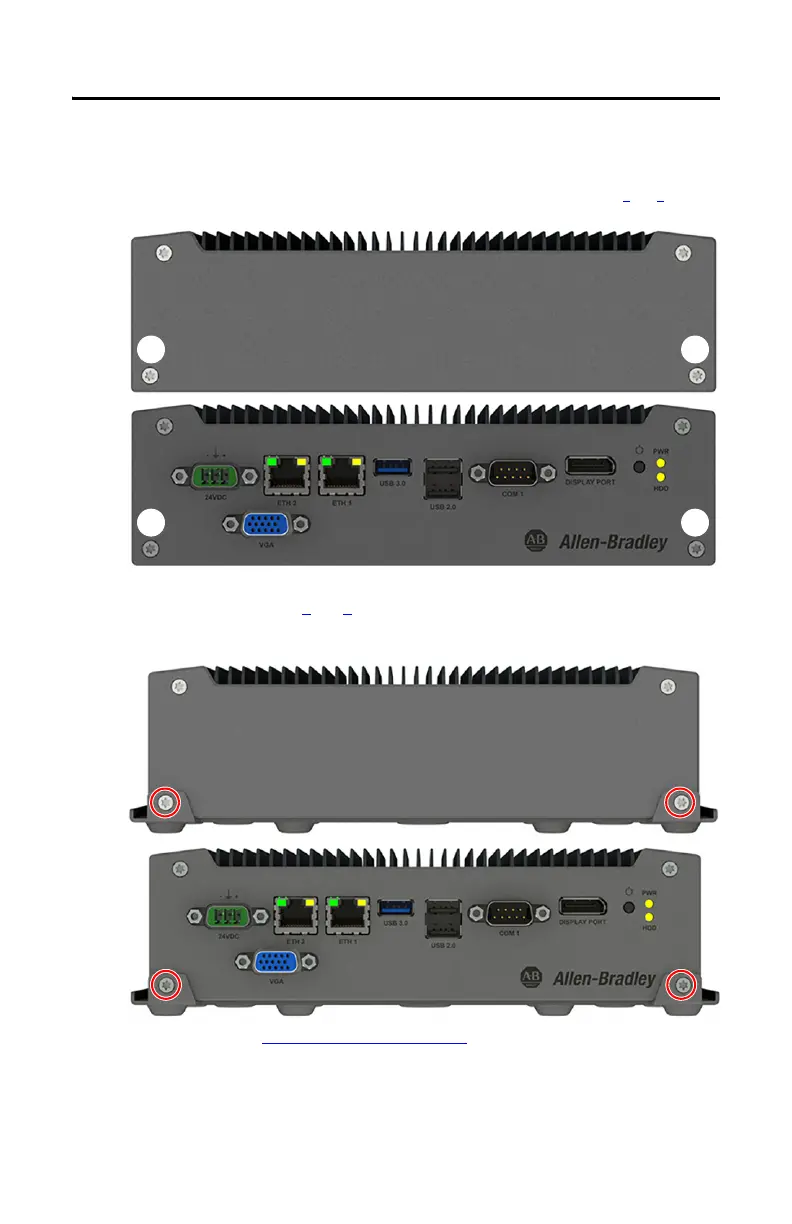

7. Remove the two screws (A) from the top of the VersaView 5000 device.
8. Remove two screws (B) from the bottom of the VersaView 5000 device.
9. Install the VersaView 5000 device to the VESA mounting bracket with the four screws
that you removed in steps 7
and 8.
Tighten the screws to a torque of 0.5 ft•lb (0.7 N•m).
10. Follow the steps for Post-configuration
on page 15.
TIP Cat. No. 6200T-NA model is used for illustrative purposes in steps 8
and 9.
A A
B B
