VersaView 5000 Thin Clients, Industrial Computers, and Accessories for Hazardous Locations
Install the DIN Rail Mounting Kit (Cat. No. 6200V-BXDIN)
To install a DIN rail mounting kit, perform the following steps.
1. Follow the steps for Pre-configuration on page 15.

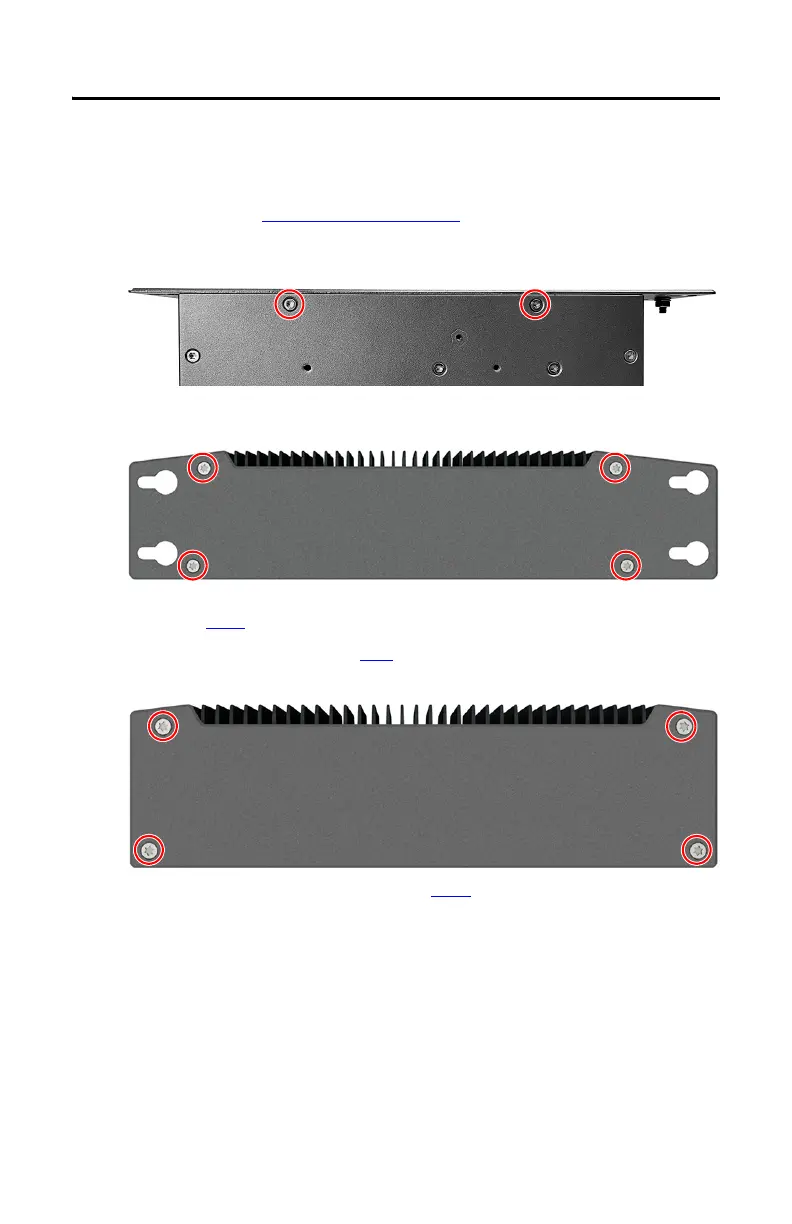

2. With the Torx 10 key or screwdriver, remove these two screws on the bottom of the
VersaView 5000 device.
3. Remove the four screws that secure the factory-installed mounting plate to the back of
the VersaView 5000 device.
4. Install the new backplate from the DIN rail mounting kit with the four screws that you
removed in step 3
.
5. Reinstall the two screws that you removed in step 2.
TIP For this step and step 5, tighten the reinstalled Torx screws to a torque of 0.5 ft•lb
(0.7 N•m).
