Rockwell Automation Publication 520-UM001I-EN-E - July 2016 199

Accessories and Dimensions Appendix B

3. Press along the edges of the back cover until it snaps firmly into place.

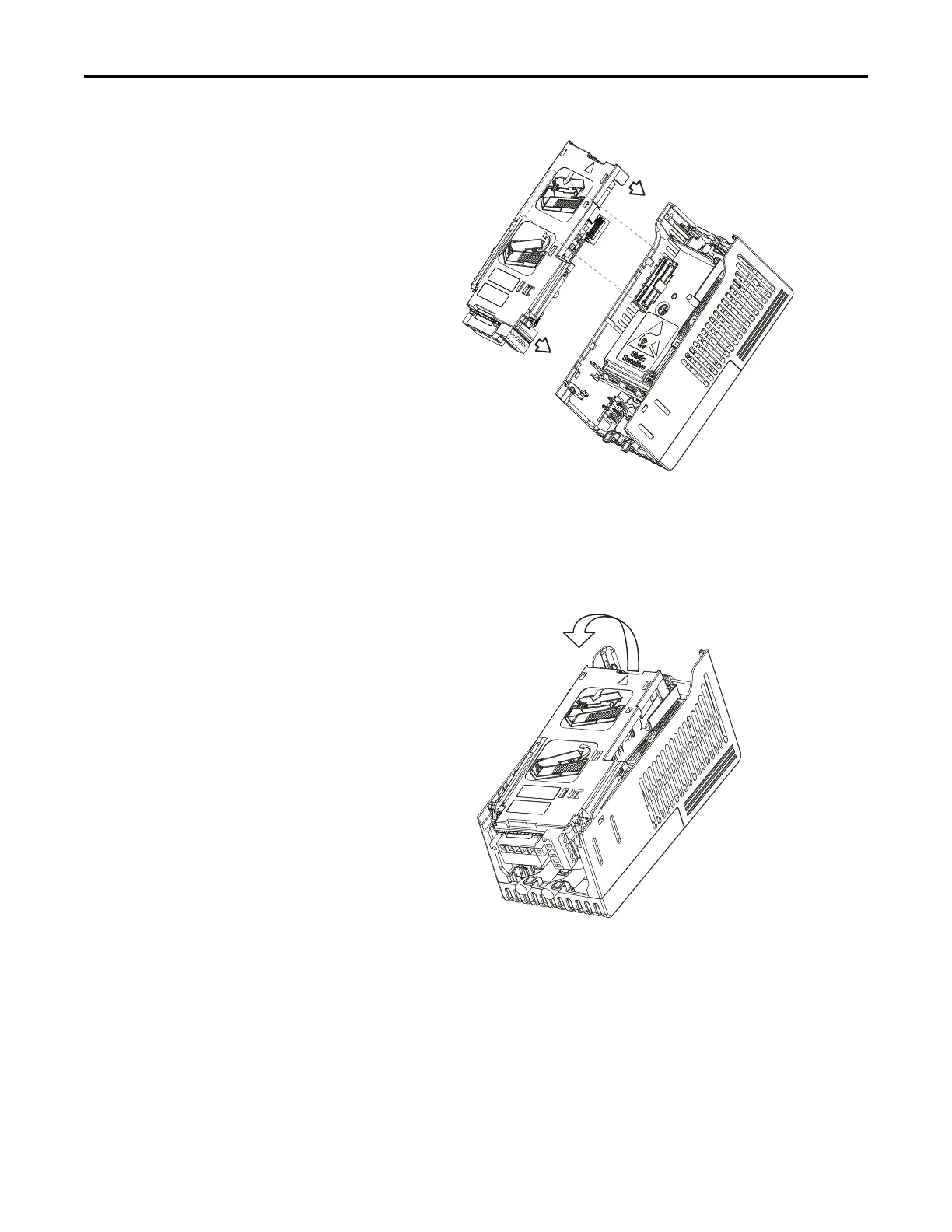

Removing a Communication Adapter

1. Insert a finger into the slot at the top of the back cover. Lift to separate the

back cover from the Control Module.

Communication

adapter interface

connector
